I
NSTALLING THE
5. If you have installed both a primary and redundant power conversion
modules, verify that the LEDs on both modules are lit as indicated in
the preceding step.

Connecting to the Console Port

The RJ-45 serial port on the switch's front panel is used to connect to the
switch for out-of-band console configuration. The on-board configuration
program can be accessed from a terminal or a PC running a terminal
emulation program. The pin assignments used to connect to the serial port
are provided in the following table.

Wiring Map for Serial Cable

Switch's 8-Pin
Serial Port
6 RXD (receive data)
3 TXD (transmit data)
5 SGND (signal
ground)
No other pins are used.
3-14
S
WITCH

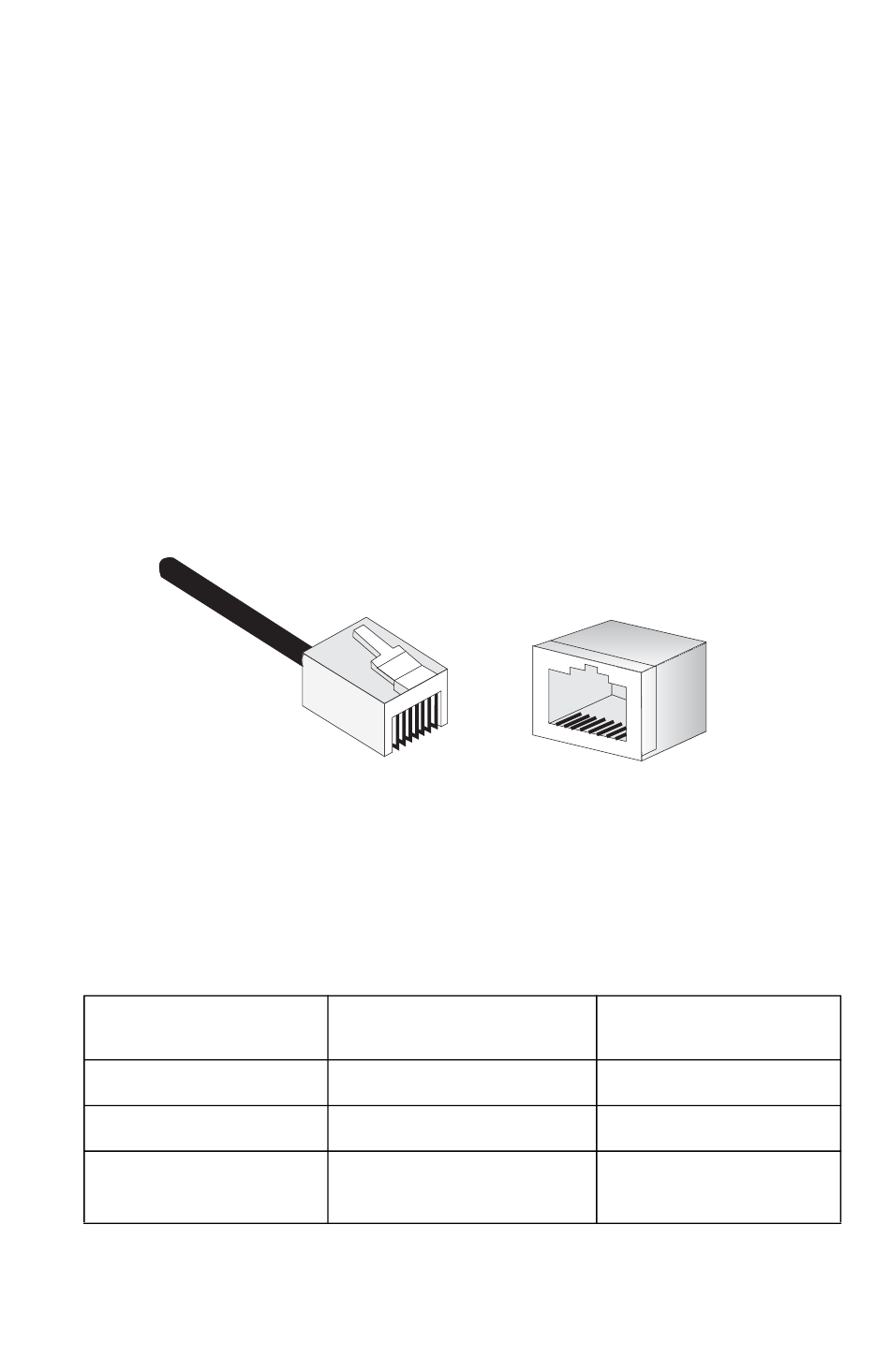

Figure 3-9 Serial Port (RJ-45) Pin-Out

Table 3-1 Serial Cable Wiring

Null Modem
<----------------------------
----------------------------->
------------------------------
8
8
1
1
PC's 9-Pin
DTE Port
3 TXD (transmit data)
2 RXD (receive data)
5 SGND (signal
ground)
