Management Connections

This switch can be managed over built-in RJ-45 Ports 27-28, Ports 25-26
when optional 1000BASE-T/SFP uplink modules are installed, or over the
100BASE-T RJ-45 management port. The 100BASE-T port provides a
dedicated management channel that operates outside of the data transport
network, making it possible to re-configure or troubleshoot the switch
over either a local or remote connection to the management port when
access via the data channel is not possible or deemed insecure.

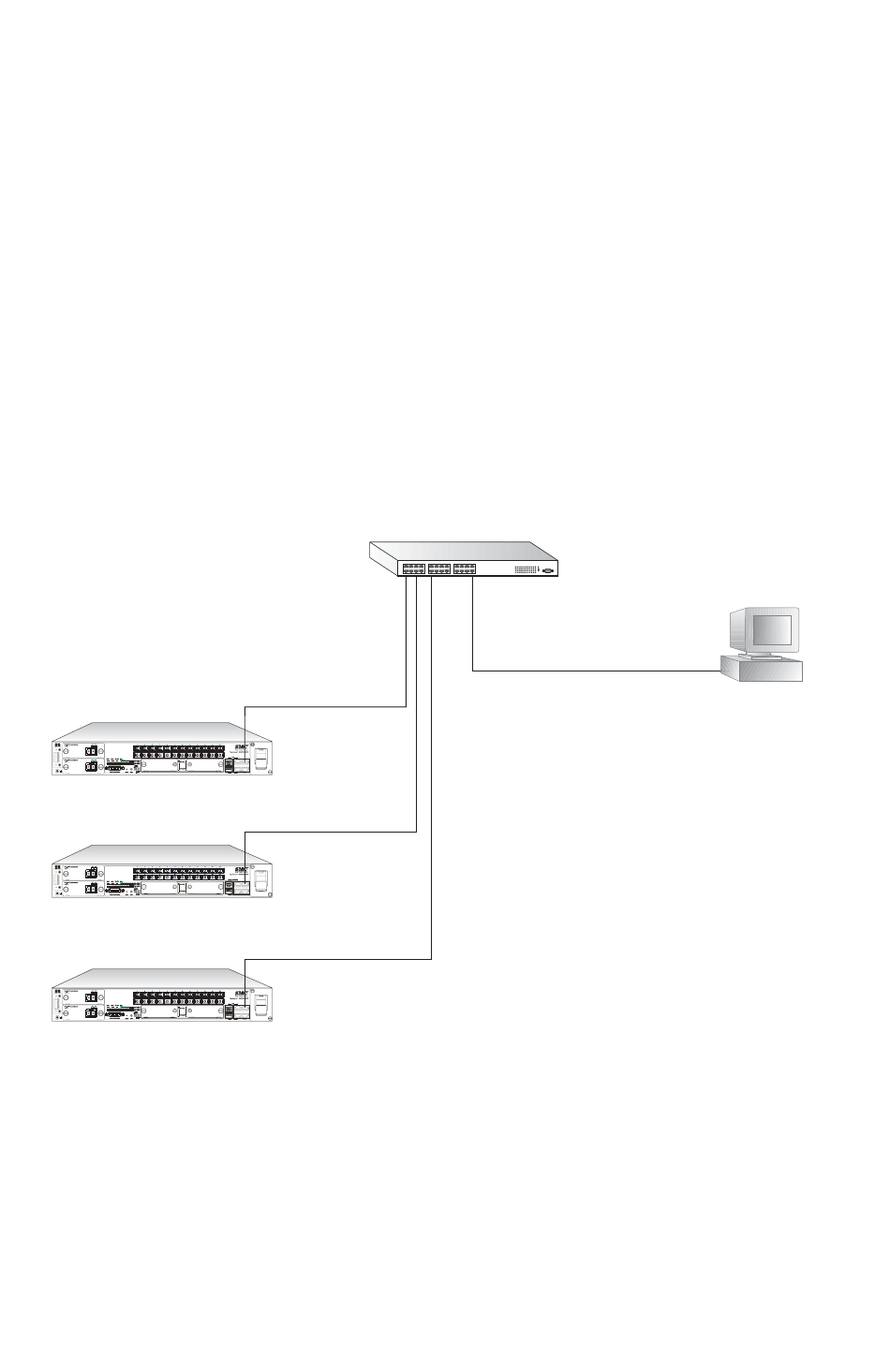

The figure below illustrates management-port connections to FTTH
switches.
8.7A
Mgmt Mgmt
8.7A
8.7A
Mgmt Mgmt
8.7A
8.7A
Mgmt Mgmt
8.7A
FTTH Switches
Ethernet Switch
Mgmt Mgmt
Mgmt Mgmt
Mgmt Mgmt
Figure 2-3 Management Port Connections
C
10/100BASE-TX UTP connections
to Ethernet switch
(up to 100 m)
E
ONNECTION XAMPLES
Management Station
2-5
