Bose® MB210
Compact Subwoofer
Installation Guide*
Installationsvejledning*
Installationsanleitung*
Guía de instalación*
Guide d'installation*
Guida all'installazione*
Installatiehandleiding*
Installationsanvisning*
Werbung
Inhaltsverzeichnis
Verwandte Anleitungen für Bose MB210
Inhaltszusammenfassung für Bose MB210
- Seite 1 Bose® MB210 Compact Subwoofer Installation Guide* Installationsvejledning* Installationsanleitung* Guía de instalación* Guide d’installation* Guida all’installazione* Installatiehandleiding* Installationsanvisning* * For use by professional installers only. * Kun til brug for erfarne installatører. * Montage ausschließlich durch ausgebildetes Installationspersonal. * Para uso exclusivo de instaladores capacitados.
-
Seite 2: Important Safety Instructions
WARNINGS: • All Bose products must be installed in accordance with local, state, federal and industry regulations. It is the installer’s responsibility to ensure installation of the loudspeakers and mounting system is performed in accordance with all applicable codes, including local building codes and regulations. -
Seite 3: Instrucciones De Seguridad Importantes
ADVERTENCIAS: • Todos los productos Bose deben instalarse conforme a las leyes locales, estatales, federales y del sector. Es responsabilidad del instalador asegurarse de que la instalación del producto se realice conforme a las normas legales correspondientes, incluidas las normas de construcción locales. -
Seite 4: Instructions Importantes Relatives À La Sécurité
AVERTISSEMENTS : • Tous les produits Bose doivent être installés dans le respect des réglementations locales et nationales. Il est de la responsabilité de l’installateur professionnel de s’assurer que l’installation du produit est effectuée conformément à tous les codes applicables et dans le respect des réglementations en vigueur, y compris dans le cadre des réglementations du bâtiment où... -
Seite 5: Wichtige Sicherheitshinweise
Wichtige Sicherheitshinweise pro.Bose.com Bitte lesen Sie alle Sicherheitshinweise und Gebrauchsanleitungen durch und bewahren Sie sie auf. Dieses Produkt darf nur von fachkundigen Monteuren installiert werden! Dieses Dokument soll fachkundigen Monteuren grundlegende Installations- und Sicherheitsrichtlinien für dieses Produkt in typischen Festinstallationssystemen bieten. Bitte lesen Sie dieses Dokument und alle Sicherheitshinweise vor der Installation durch. - Seite 6 AVVERTENZE: • Tutti i prodotti Bose devono essere installati in conformità con gli standard locali, statali, federali e di settore. È responsabilità dell’installatore assicurare che l’installazione del prodotto sia eseguita in conformità con tutte le normative vigenti, compresi i regolamenti locali per l’integrazione degli apparati.
-
Seite 7: Belangrijke Veiligheidsinstructies
WAARSCHUWINGEN: • Alle Bose-producten moeten worden geïnstalleerd volgens de plaatselijke en landelijke voorschriften en industrienormen. Het is de verantwoordelijkheid van de installateur om ervoor te zorgen dat de installatie van het product wordt uitgevoerd volgens alle van toepassing zijnde voorschriften, inclusief plaatselijke bouwvoorschriften. -
Seite 8: Product Features

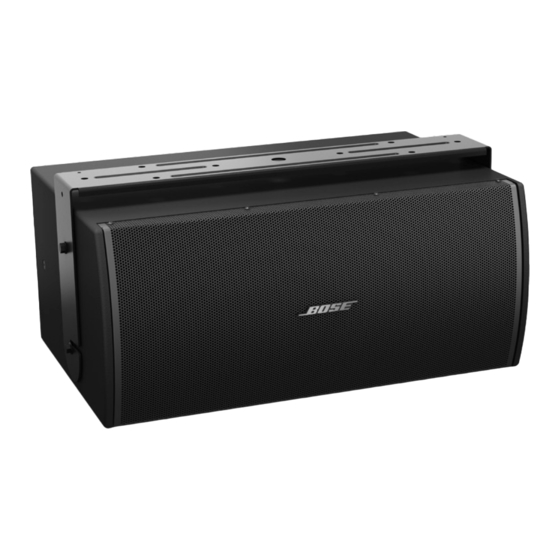

Bose Professional F1 portable, powered subwoofer, in a compact, Baltic-birch plywood enclosure optimized for fixed-installation applications. Featuring outstanding performance to size ratio, the MB210 is designed to complement Bose Professional FreeSpace®, Panaray®, and RMU loudspeaker models with additional bass impact. -
Seite 9: Installation
AND 4-PIN EURO BLOCK CONNECTOR Front View Right View Rear View BRACKET REMOVED DIMENSIONS APPLY TO BOTH SIDES Connector Panel The MB210 subwoofer includes the following connections (all wired in parallel): q Euroblock connector (4-pin) w NL4 connectors Installation Guide - 9... - Seite 10 • Do not place loudspeaker resting on its grille. • Bose does not recommend or support use of eyebolts in threaded holes instead of U-bracket. Install Loudspeaker Using U-Bracket Choose a mounting location that will safely support the weight of the loudspeaker. The loudspeaker can be mounted horizontally or vertically.
- Seite 11 Using the Ground Feet The MB210 subwoofer can be placed on the ground in either the horizontal or vertical orientation, using the ground feet. To attach the ground feet: Remove the backing from the adhesive side of the first ground foot.
-
Seite 12: Technical Information
The Bose® PowerMatch configurable power amplifiers offer optimal amplification, amplifier limiting, digital signal processing (DSP), and DSP presets for use with the MB210 Compact Subwoofer. Please refer to the specifications listed on the pro.Bose.com website for amplifiers and compare with the table above to determine which model is best for your particular system design. - Seite 13 Technical Information pro.Bose.com Recommended Mid-High Loudspeakers The MB210 loudspeaker pairs excellently with Bose FreeSpace, RoomMatch Utility and Panaray lines of loudspeakers, and can also be used with any other passive Loudspeakers. Installation Guide - 13...
-
Seite 14: Additional Information
(2) Sensitivity with indicated boundary, 40 - 300 Hz bandpass, referenced to 2.83V (3) Maximum SPL calculated from sensitivity and power handling specifications, exclusive of power compression (4) Bose extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration (5) AES standard 2-hour duration with IEC system noise Additional Information Refer to the owner’s guide (online at pro.Bose.com) for more information about your product (including... -
Seite 15: Contact Information
