TASK 4: CONNECTING THE POWER

Insert one power cable into the power receptacle for each power supply and connect
the each PSU to a suitable power source. The FileCruiser VA2600 is equipped with
three power supplies in an N+1 arrangement.

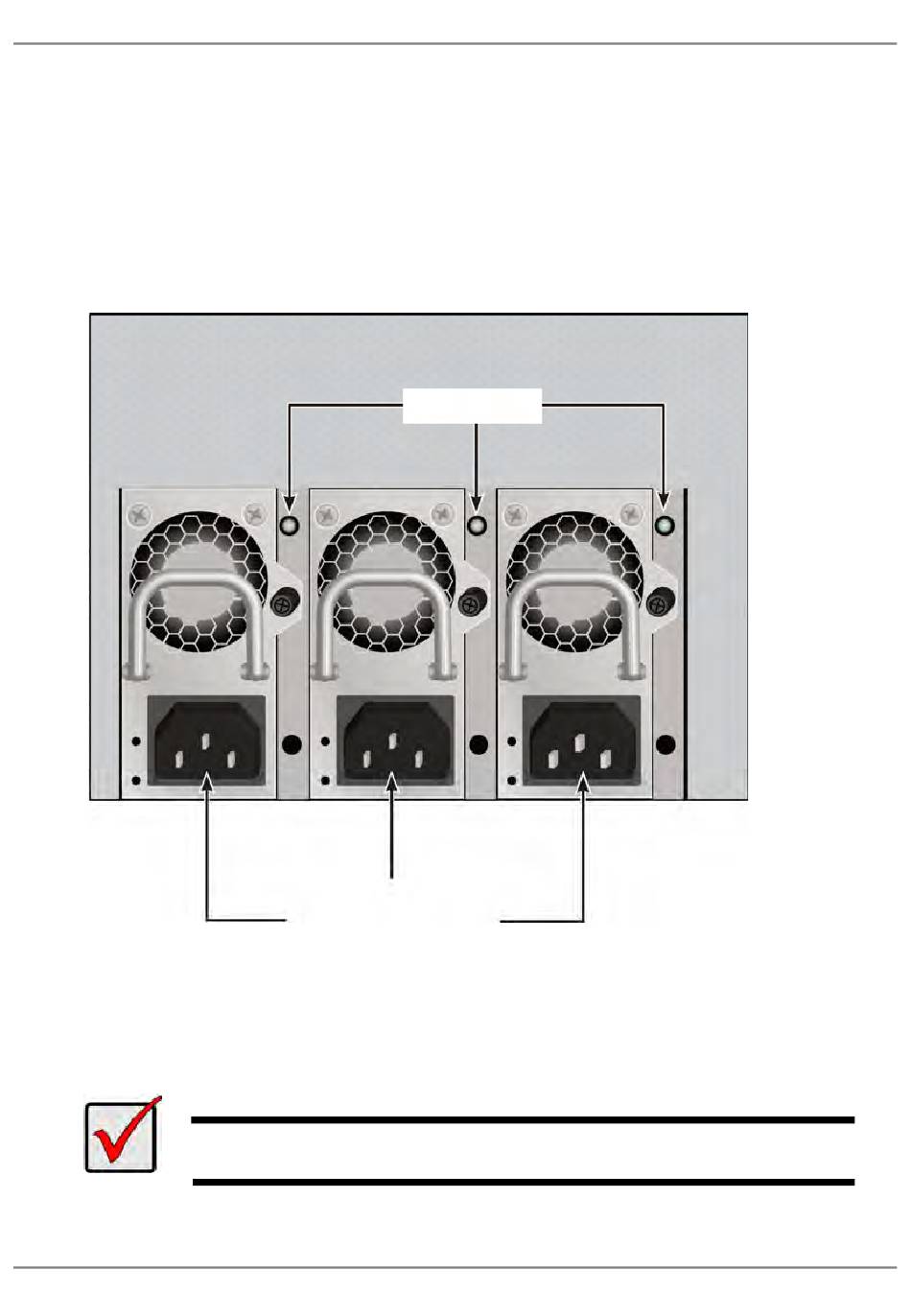

Figure 10: FileCruiser VA2600 rear panel N+1 power connections
The FileCruiser VA2600 features three N+1 power supplies. In this arrangement, one
PSU is redundant, so a minimum of two PSUs are needed to power up the FileCruiser
VA2600.
Important
For information about installing or hot swapping power supplies, please
see the product manual.
FileCruiser VA2600 Hardware Installation Guide
PSU status LEDs
PSU1, PSU2 and PSU3
Connect all power supplies
to a suitable power source.
