TASK 3: MANAGEMENT CONNECTION

This section describes how to establish a management connection the FileCruiser
VA2600 system. There are two methods to establish the physical connection to the
FileCruiser used for management of the device. The FileCruiser VA2600 can be
managed through the network connection to the administrator's portal of the FileCruiser
web browser based GUI.

MANAGEMENT PATH - NETWORK CONNECTION

The FileCruiser VA2600 has four Gigabit Ethernet RJ-45 ports on the rear panel for
connection to an Ethernet network. Use this connection with WebPAM PROe to login
as the FileCruiser administrator portal.
To establish the management path:
1. Attach one end of an Ethernet cable to the network connector or standard NIC
in the Host PC.
Attach the other end of the Ethernet cable to one of the ports on the standard
network switch.
2. Attach one end of an Ethernet cable to one of the ports on the standard
network switch.
Attach the other end of the Ethernet cable to the Gigabit Ethernet port 1 on the
controller of the FileCruiser. (This is identified as Eth0 when you get the IP
address).

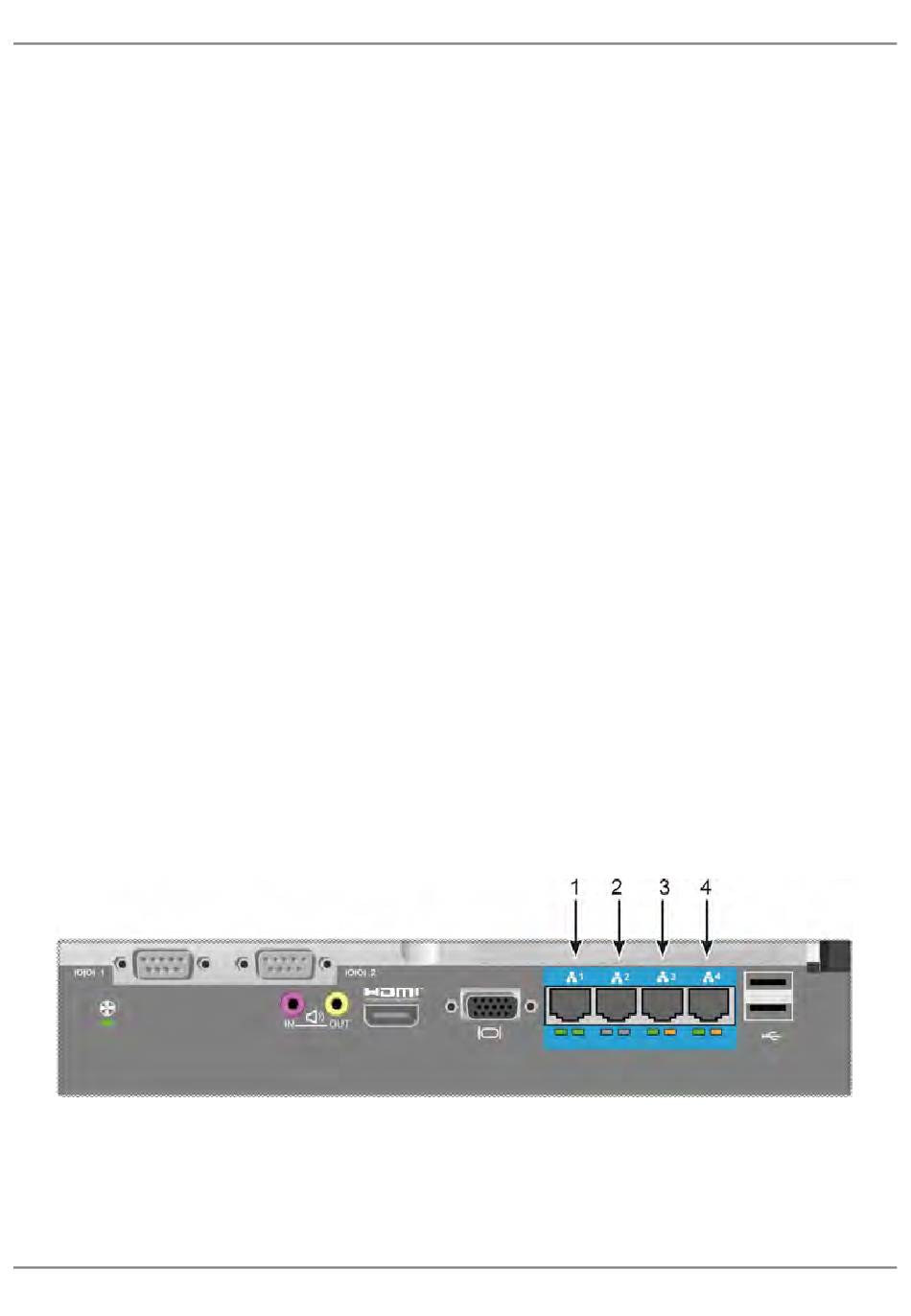

Figure 8: Ethernet ports on the rear panel of the FileCruiser VA2600
FileCruiser VA2600 Hardware Installation Guide
11
Ethernet ports
