How to switch using the connected
transmitter
Switch on or off or toggle: Briefly press the switch
button (Figure !, A) with a sharp object (such as a
phase tester). When it is switched on, the LED lights up
(Figure !, B)
Resetting the CONNECT flush-mounted receiver
to the factory settings
Under certain circumstances, it may be necessary to
reset the flush-mounted receiver (and, as the case may
be, the other devices in the radio system) to its factory
settings and to reconfigure the radio system:
1 Press the flush-mounted receiver's switch button
three times within approx. 1.5 seconds (with a sharp
object such as a phase tester; Figure ! A). The
LED (Figure ! B) in the flush-mounted receiver
flashes.
2 Then press and hold the switch button for approx.
five seconds until the LED turns off. The flush-
mounted receiver has been reset to its factory
settings.

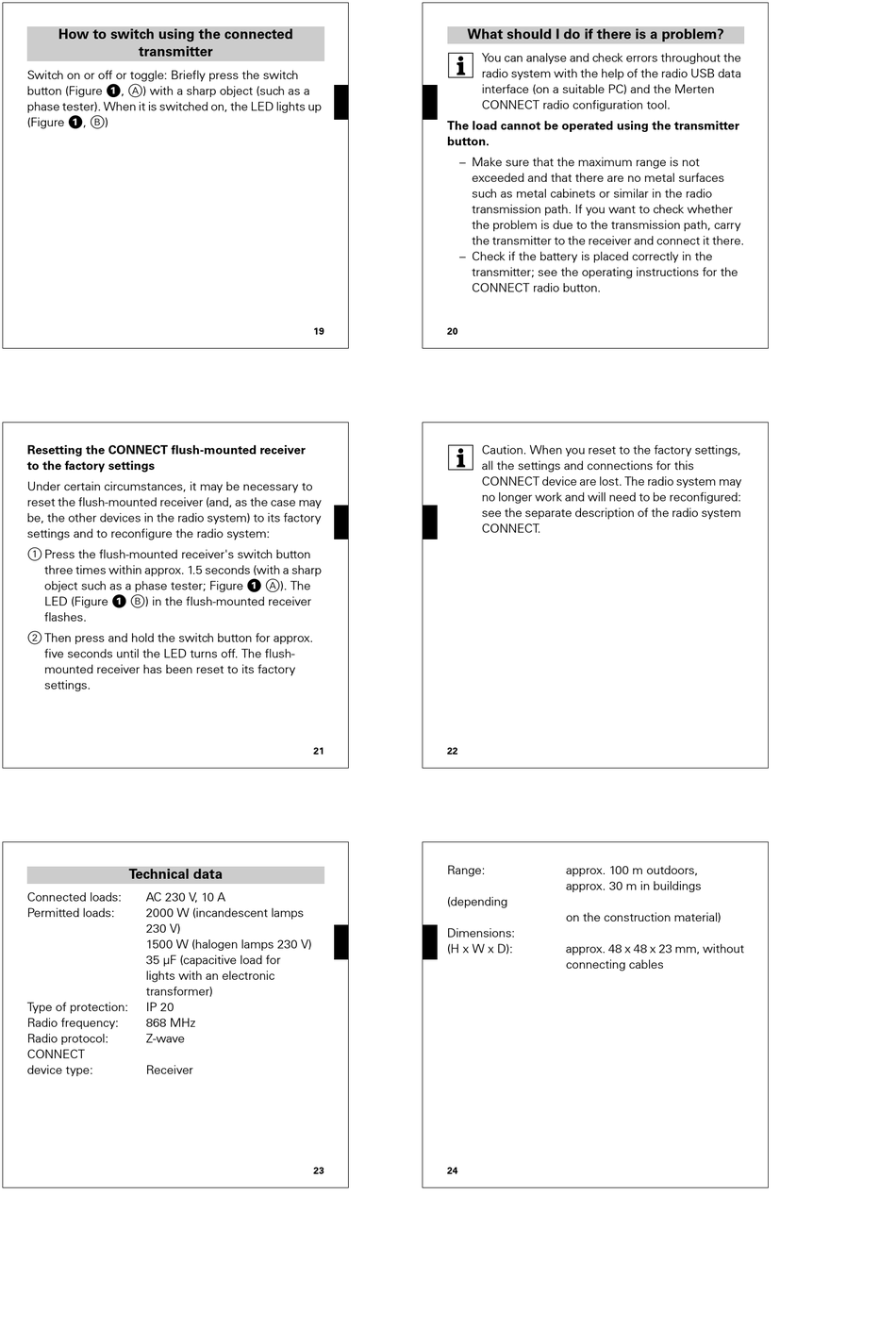

Technical data
Connected loads:
AC 230 V, 10 A
Permitted loads:
2000 W (incandescent lamps
230 V)
1500 W (halogen lamps 230 V)
35 µF (capacitive load for
lights with an electronic
transformer)
Type of protection:
IP 20
Radio frequency:
868 MHz
Radio protocol:
Z-wave
CONNECT
device type:
Receiver
What should I do if there is a problem?
|
You can analyse and check errors throughout the
radio system with the help of the radio USB data
interface (on a suitable PC) and the Merten
CONNECT radio configuration tool.
The load cannot be operated using the transmitter
button.
– Make sure that the maximum range is not
exceeded and that there are no metal surfaces
such as metal cabinets or similar in the radio
transmission path. If you want to check whether
the problem is due to the transmission path, carry
the transmitter to the receiver and connect it there.
– Check if the battery is placed correctly in the
transmitter; see the operating instructions for the
CONNECT radio button.
19
20
|
Caution. When you reset to the factory settings,
all the settings and connections for this
CONNECT device are lost. The radio system may
no longer work and will need to be reconfigured:
see the separate description of the radio system
CONNECT.
21
22
Range:
(depending
Dimensions:
(H x W x D):
23
24
approx. 100 m outdoors,
approx. 30 m in buildings
on the construction material)
approx. 48 x 48 x 23 mm, without
connecting cables
