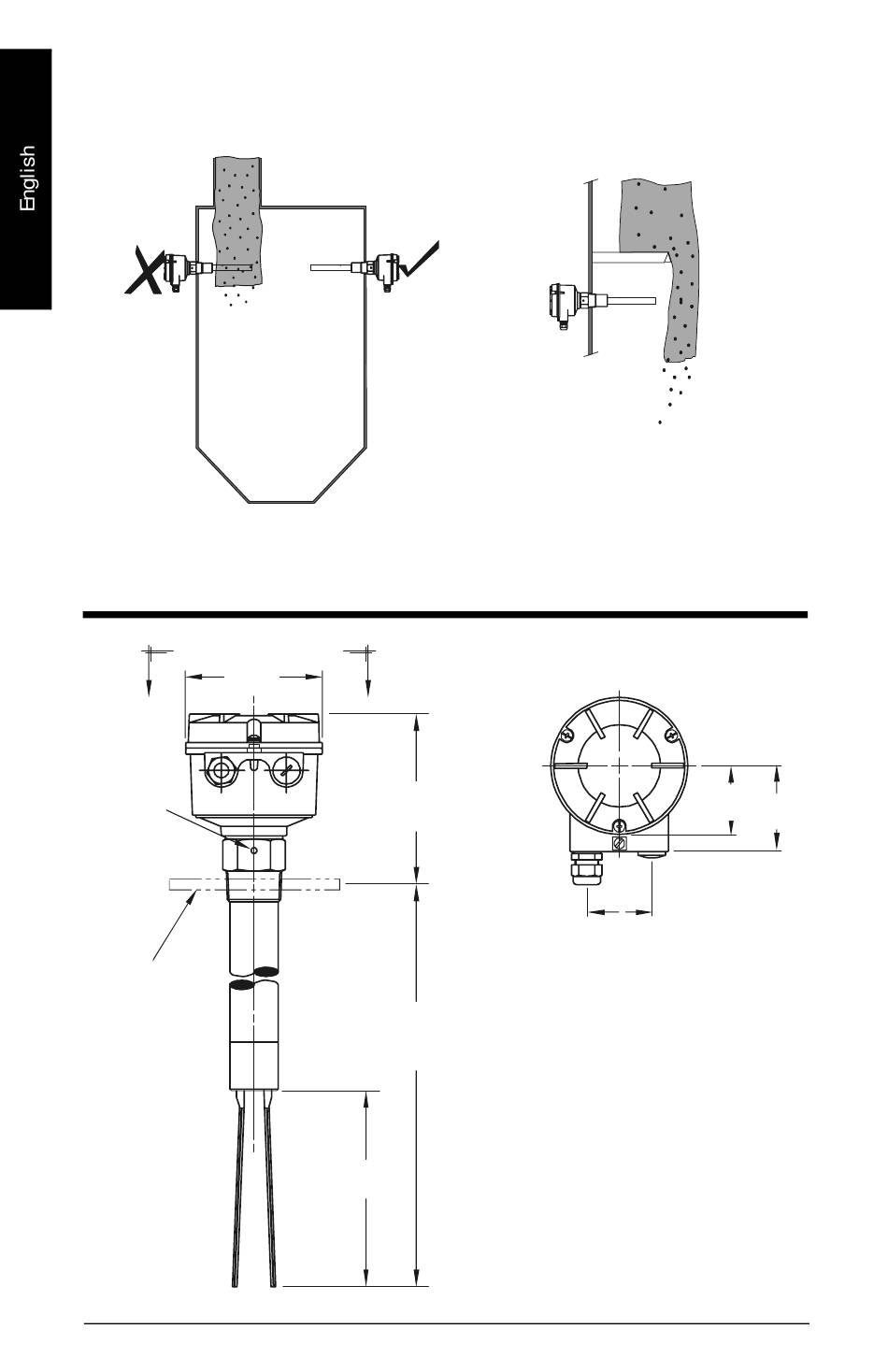

Process Cautions
Caution:
Keep VLS 200 out of
path of falling material.
Dimensions
120 mm
(4.72")
A
tine
orientation
marking
optional
process
flange
Page 6
A
150 mm
(5.91")
Zone 21
(Cat. 2)
Zone 20
(Cat. 1)
230 mm (9.0") compact version
300 to 4000 mm (11.81 to 157")
customer specified rigid extension
170 mm
(6.69")
Pointek VLS 200– INSTRUCTION MANUAL
Caution:
Protect shaft and
tines from falling material.
VIEW A-A
60 mm
(2.36")
60 mm
75 mm
(2.36")
(2.95")
7ML19981FT61
