iQ 20 Cart

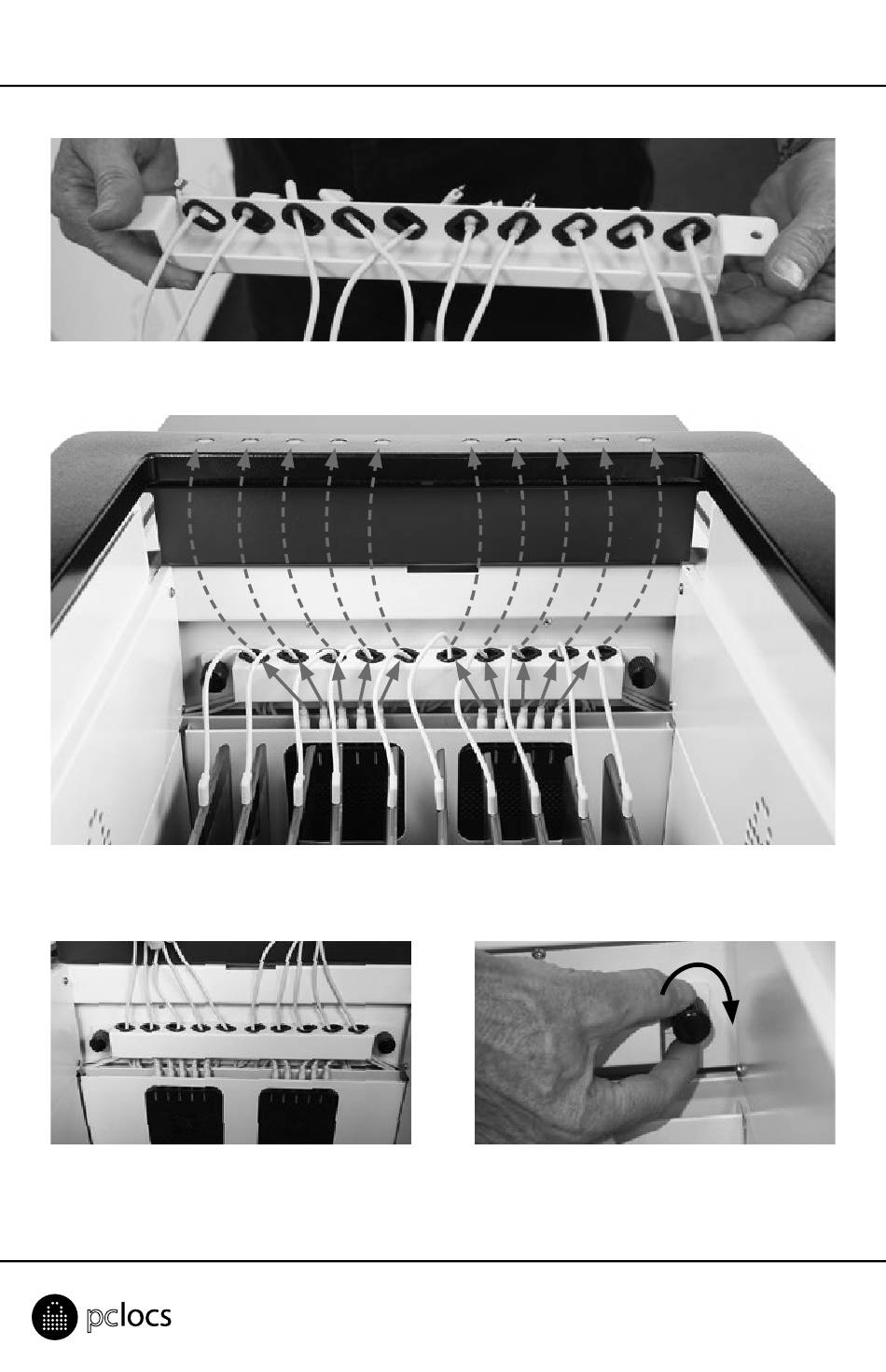

Insert the device cables into the cable management bracket.
Important: To ensure correct external LED status indication (on the top frame of the Cart), cables should be
connected to the correct USB ports on the iQ 5 Sync Charge Boxes (see image below).
Push the excess cable down behind the cable
management bracket and ensure enough cable is
pulled through the bracket (depending on device).
Repeat on the opposite side of the Cart for the remaining 10 devices.
Fit the cable management bracket back into the
correct position and replace and tighten the
knobs to secure the bracket.
