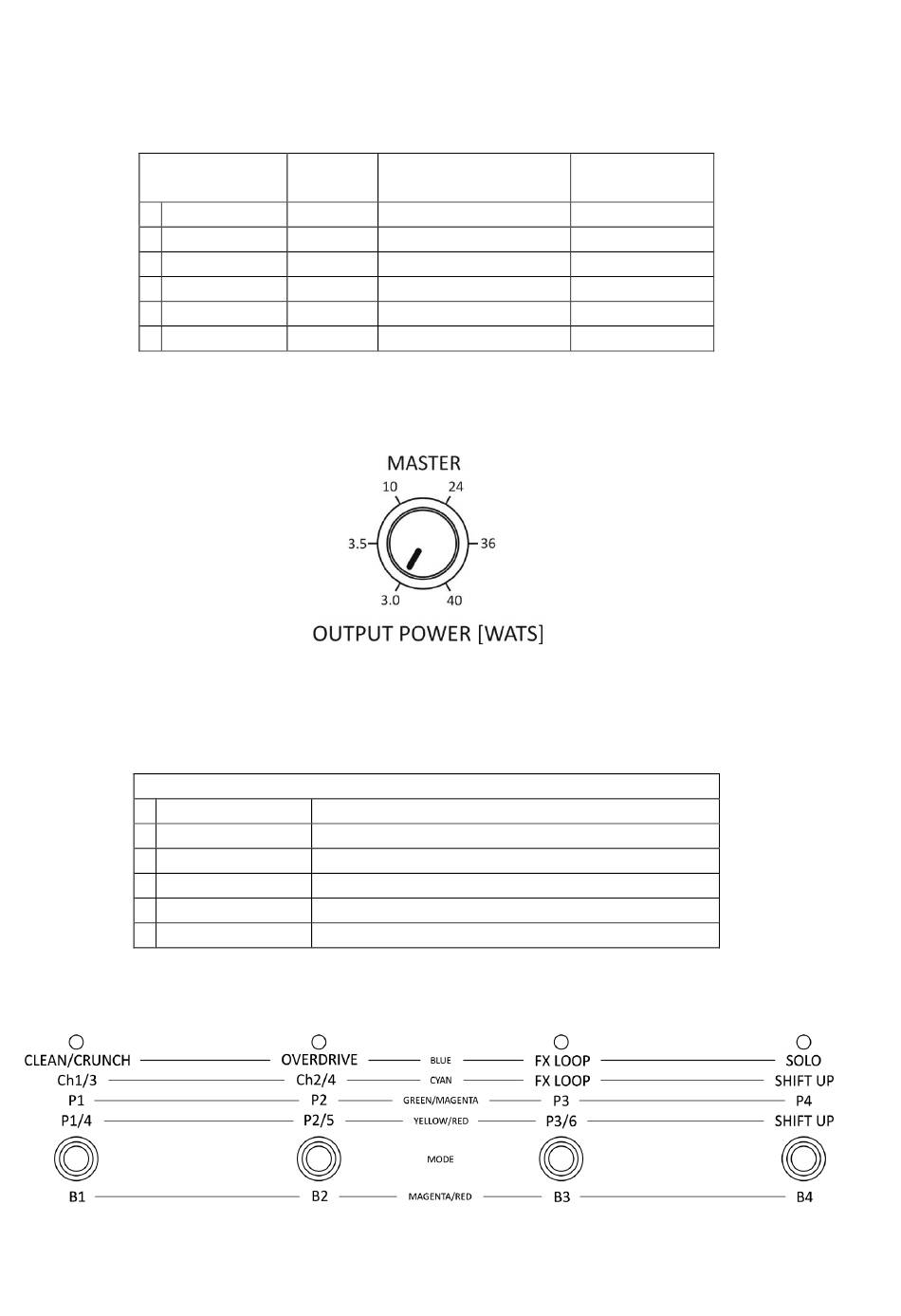

Evolution Amber 40 Bedienungsanleitung Seite 6

OUTPUT POWER section
Power/volume LEVEL switch allows to choose one of six power/volume levels:
LEVEL
6
5 MAGENTA
4 YELLOW
3 GREEN
2
1
Power LEVEL determines the power/volume of the active channel.
The MASTER knob sets the overall power/volume in the range of 3W to 40W for RED
power/volume LEVEL.
Footswitch working modes
Footswitch EFS-1and AMBER 40 amp can operate in one of six modes:
6
5 MAGENTA
4
3
2
1
The features of push-buttons according to the footswitch mode:
dB
RED 0dB
-0.7dB
-1.4dB
-2.1dB
CYAN -2.8dB
BLUE -3.5dB
FOOTSWITCH MODES
RED
YELLOW
GREEN
CYAN
BLUE
% of MASTER
OUTPUT POWER
100%
85%
72%
62%
52%
45%
4 banks with 6 presets
4 banks with 4 presets
6 presets
4 presets
4 channels, FX LOOP
2 channels, FX LOOP, SOLO
-6-
e. g. for 10W
10.0W
8.5W
7.2W
6.2W
5.2W
4.5W
