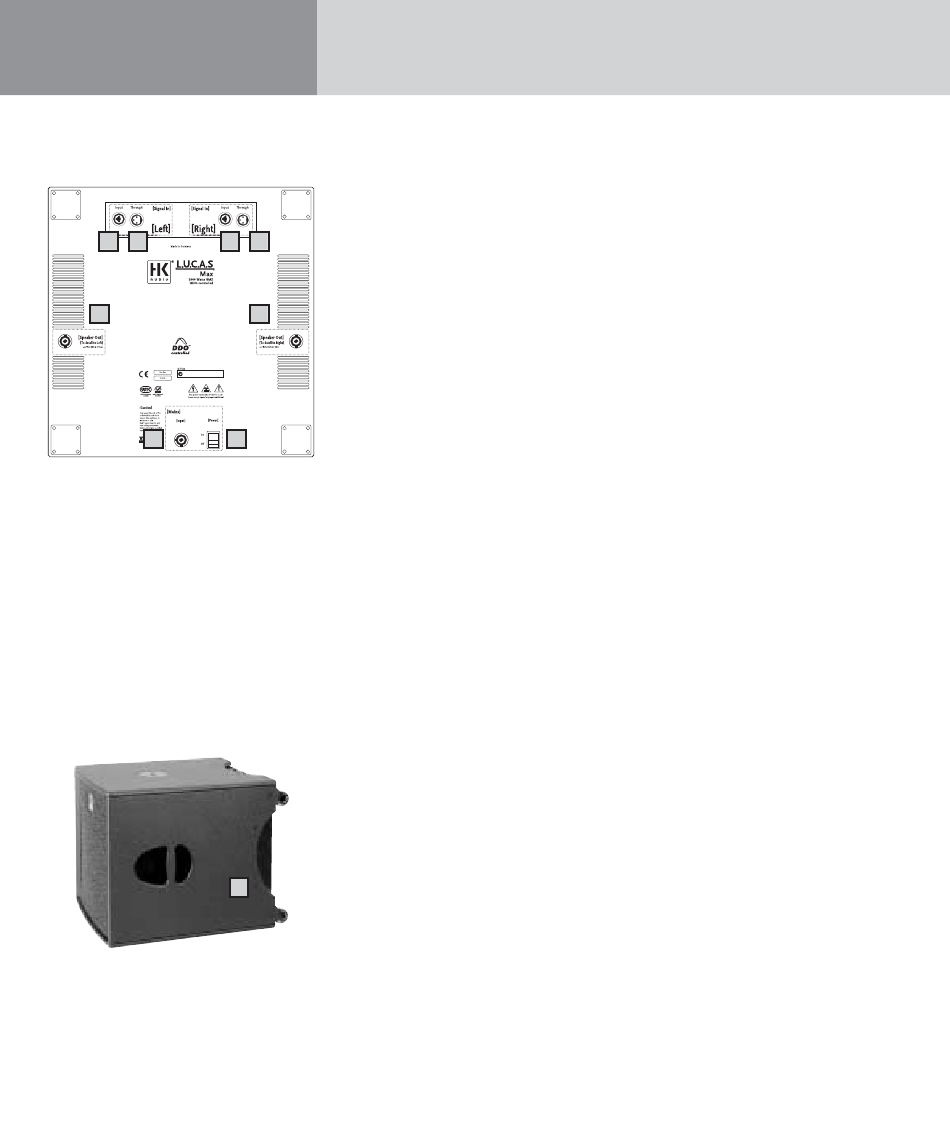

L.U.C.A.S MAX - user panel rear
8 Input Left and Input Right (Combination XLR/1/4"
jacks)
L.U.C.A.S MAX
8 9
right channel inputs for connecting to a mixer.
Connections: Connect the audio cables that route
the signal coming from your mixer (master
10
left/right, line out, or a similar circuit) to these
balanced inputs using microphone cables equipped
with XLR connectors. The XLR connectors' pin
assignments must be as follows:
1= ground, 2= +, 3= -.
You can also use a 1/4" Tip-Ring-Sleeve plug to route
signals via balanced circuits. Unbalanced signals can
11
be patched in via a mono plug.
9 Through Left, Trough Right
Connections: Parallel outputs for routing the line
signal (left or right) to other systems, outboard com-
ponents, monitor power amps, etc., via XLR cables.
10 To Satellite Left und Right
Connections: Connect these Speakon
the left and right L.U.C.A.S MAX
speaker cables equipped with Speakon
Note: Be sure to rotate the Speakon
clockwise until they lock in place!
11 Power Switch
Operation: On/off switch for the active system. The
display on the system controller glows orange to
indicate that the system is on.
Note: Once you have engaged the Power switch, it
will take several seconds for the display to light up
and the system to be ready for operation. This is
standard procedure and does not indicate a
malfunction.
13
The active L.U.C.A.S MAX
switched on last after you power up all equipment
connected to it, and should be switched off first
before you switch off all the other equipment
connected to it.
® is equipped with separate left and
® outputs to
® satellites using
® connectors.
®
connectors
® system should always be
12 Mains Input
Connections: Use the factory-included Powercon
mains cable (power cord) to connect from this
socket to a wall receptacle. Caution! Make sure the
local mains voltage matches the voltage specified on
the device. Connecting the system to the wrong
mains voltage may destroy the L.U.C.A.S MAX
system's electronic components.
13 Fans
These fans (on the side of the housing) keep the
power amp modules cool. Always keep the fan and
ventilation vents free of dirt and debris, and ensure
they remain unobstructed so air can circulate freely.
L.U.C.A.S MAX Satellite
Input
Connections: Connect the Speakon ®
left and right L.U.C.A.S MAX ® satellite outputs using
speaker cables equipped with Speakon
Note: Be sure to twist the Speakon ®
clockwise until they lock in place! You must first
disengage the safety catch before you can unplug
the connector. To do this, pull the bayonet catch
towards the cord.
®
®
inputs to the
® connectors.
connectors
