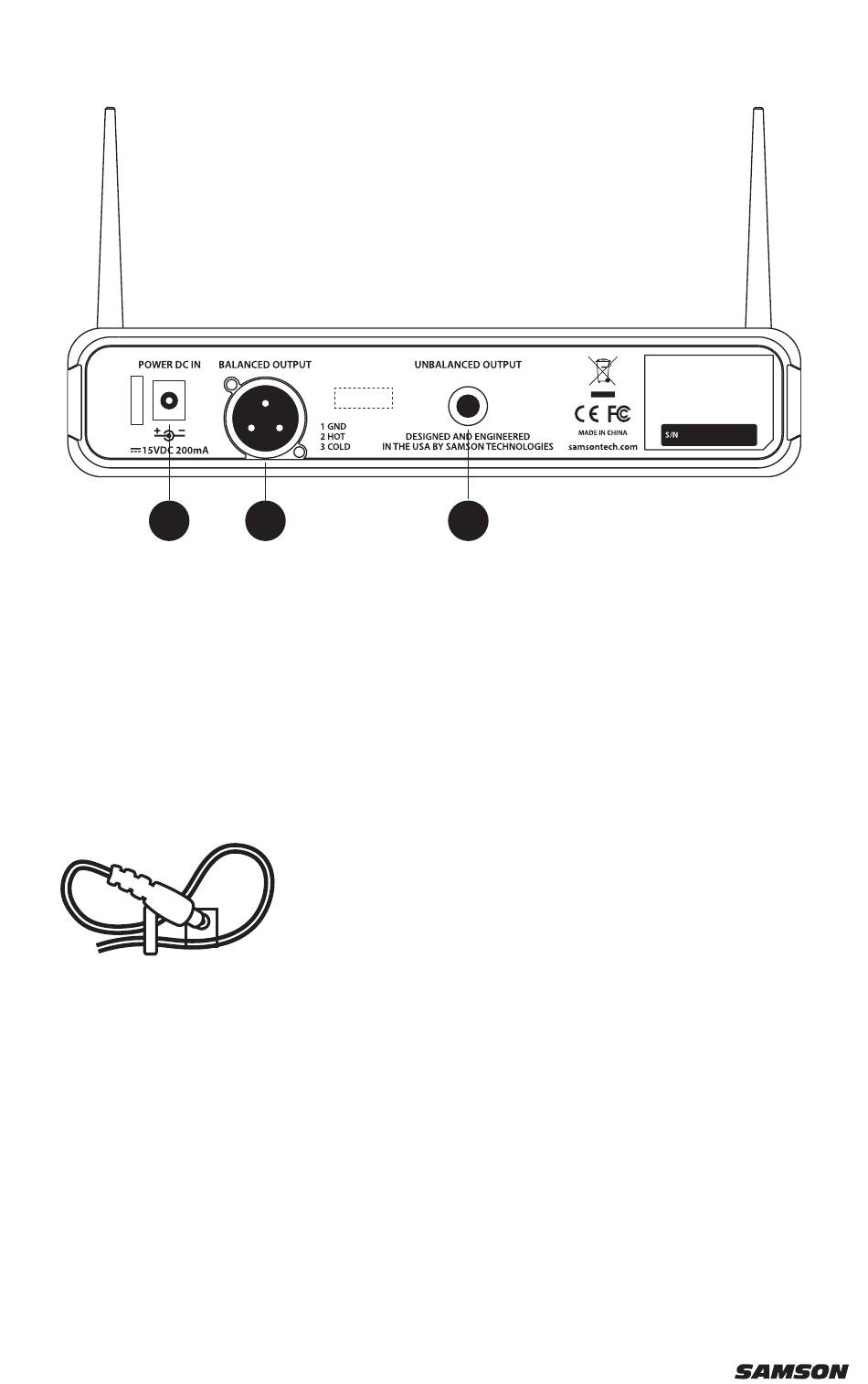

CR88 Receiver Rear Callouts
1
1. DC Input - Connect the supplied power adapter here, using the strain relief as
shown in the illustration below. WARNING: Do not substitute any other kind of
power adapter. Doing so can cause severe damage to the CR88 and will void your
warranty.
2. BALANCED OUTPUT - Use this electronically balanced low impedance (600 Ohm)
XLR jack when connecting the CR88 to professional (+4dBu) audio equipment.
Pin wiring is as follows: Pin 1 ground, Pin 2 high (hot), and Pin 3 low (cold).
3. UNBALANCED OUTPUT - Use this unbalanced high impedance (5K Ohm) ¼" jack
when connecting the CR88 to consumer (-10dBV) audio equipment. Wiring is as
follows: tip hot, sleeve ground.
12
FREQ:
542-566MHz
2
Using the strain relief: To keep the adapter from acciden-
tally disconnecting from the receiver, gather up a loop of
wire and pass it through the strain relief, then pass the
adapter plug through the loop.
3
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation.
