Technical data

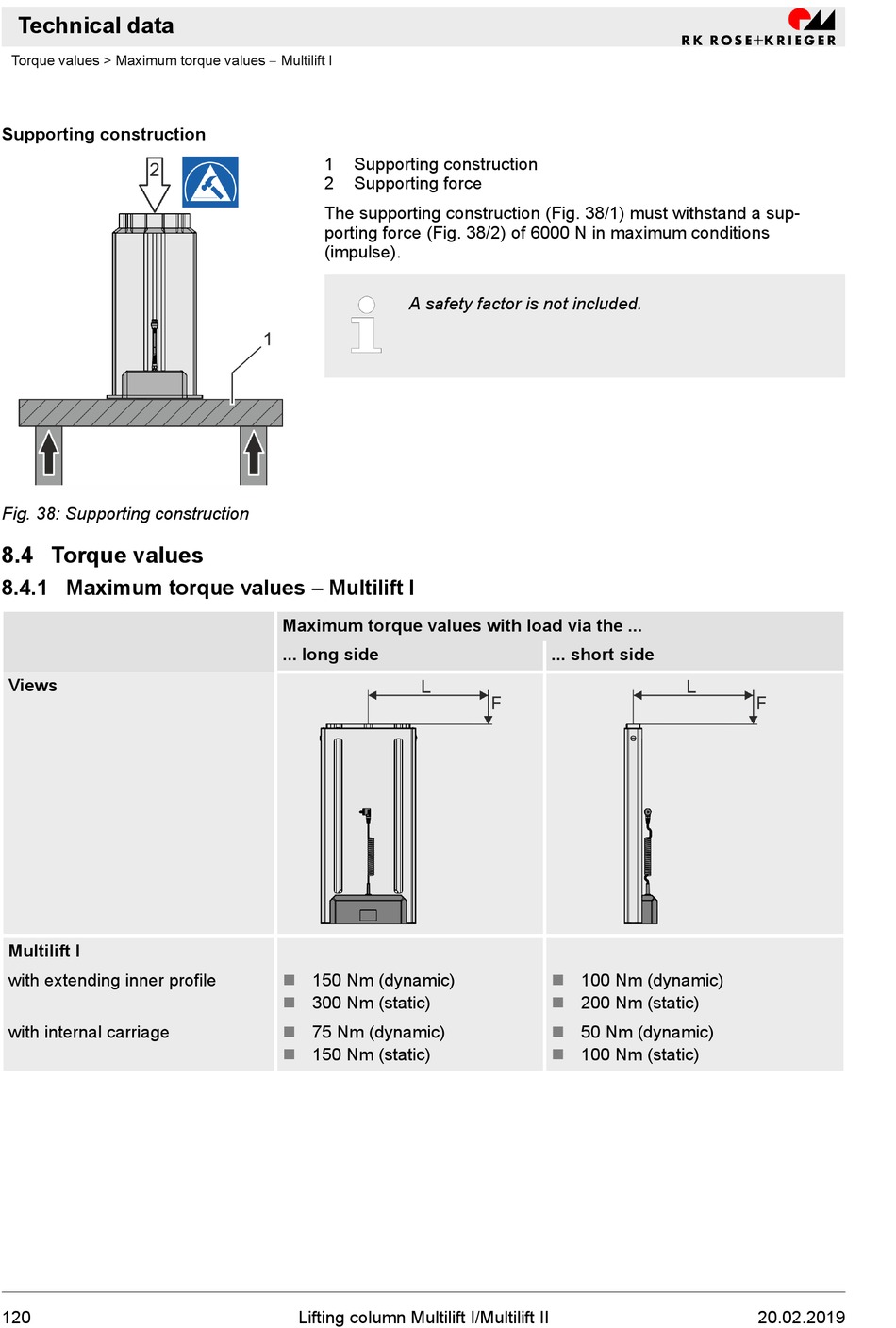

Torque values > Maximum torque values - Multilift I
Supporting construction
Fig. 38: Supporting construction

8.4 Torque values

8.4.1 Maximum torque values - Multilift I

Views
Multilift I
with extending inner profile
with internal carriage
120
1 Supporting construction
2 Supporting force
The supporting construction (Fig. 38/1) must withstand a sup-
porting force (Fig. 38/2) of 6000 N in maximum conditions
(impulse).
A safety factor is not included.
Maximum torque values with load via the ...
... long side
n 150 Nm (dynamic)
n 300 Nm (static)
n 75 Nm (dynamic)
n 150 Nm (static)
Lifting column Multilift I/Multilift II
... short side
n 100 Nm (dynamic)
n 200 Nm (static)
n 50 Nm (dynamic)
n 100 Nm (static)
