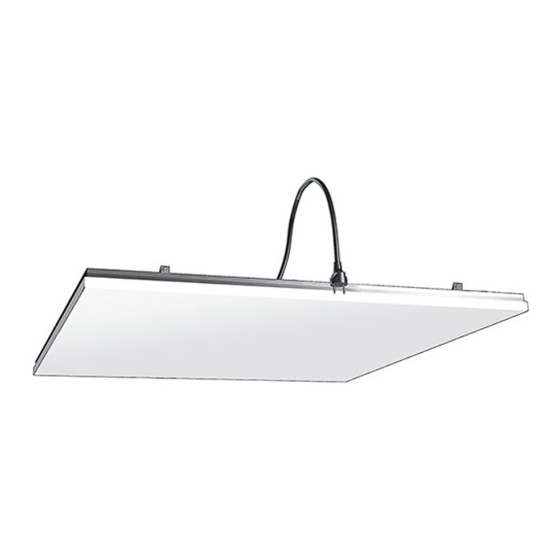

Thermocassette HP
SE
GB
NO
FR
DE
.... 6
.... 10
.... 12
... 14
.... 8
FI
... 16
RU
... 18

Werbung

loading

Inhaltszusammenfassung für Frico HP3

  • Seite 1 Thermocassette HP ..6 ..10 ..12 ... 14 ..8 ... 16 ... 18...
  • Seite 2 Thermocassette HP Minimum mounting distance Min.distance [mm] Ceiling (A) Wall, long side of the unit (B) Wall, short side of the unit (B) Flammable material (C) Floor (D) 1800 Fig. 1: Minimum mounting distance...
  • Seite 3 Thermocassette HP Mounting Fig. 1 Fig. 2...
  • Seite 4 Thermocassette HP Technical specifications | Thermocassette HP . Type E-nr [SE] EL-nr [NO] Output (1) Voltage (2) Amperage (3) Max. surface Weight (5) temperature (4) [°C] [kg] 85 700 21 230V~ 85 700 34 230V~ 10,7 Protection class: (IP55), jet-proof design. CE compliant.
  • Seite 5: Output Control

    Thermocassette HP Wiring diagrams HP Internal wiring diagram 230V~ Output control K 1 2 U 3 4 U K G G 230V~ Control by thermostat 230V~ Thermostat...
  • Seite 6 Thermocassette HP Allgemeine Anweisungen Montage Bitte lesen Sie diese Anweisungen vor der Montage in Hängedecke (in den offenen Installation und Nutzung gründlich durch. Deckenraster gelegt). Bewahren Sie diese Anleitung zum späteren Siehe Bild 1. Nachschlagen gut auf. 1. Seitlicher Mindestabstand zur Wand 50mm. Das Produkt darf nur gemäß...
  • Seite 7 Thermocassette HP 6. Kassette nach oben klappen und die Lage der Deckenkonsole berichtigen. (Fig. 2C) 7. Die Kassette herunterklappen und die Befestigungsschrauben in der Decke endgültig festziehen. (Fig. 2D) 8. Die Kassette wieder nach oben klappen und die beiden verbliebenen Konsolenenden an den entsprechenden Enden an der Decke befestigen.
  • Seite 11 Place this drawing adjacent to the distribution board OBS! – do not restrict the thermal emission of the heated ceiling – do not affix materials other than those recommended – do not insert nails or screws HP3, 300W, 220-240V HP6, 600W, 220-240V Drawing of the installation...
