Specifications and Features

Display
Home button
LED indicators
Dimensions (mounting)
Horizontal viewing angle 70°
Vertical viewing angle
Brightness
Operating environment
SD card slot
*If necessary, the SD card can be formatted to file system FAT16 or 32 using a PC. The maximum size SD card
supported is 32GB.

Welcome Screen

The date and time are displayed in the upper right corner of the screen. The system status (i.e., Ready, Armed, Exit
Delay etc.) is displayed at the top of the screen.

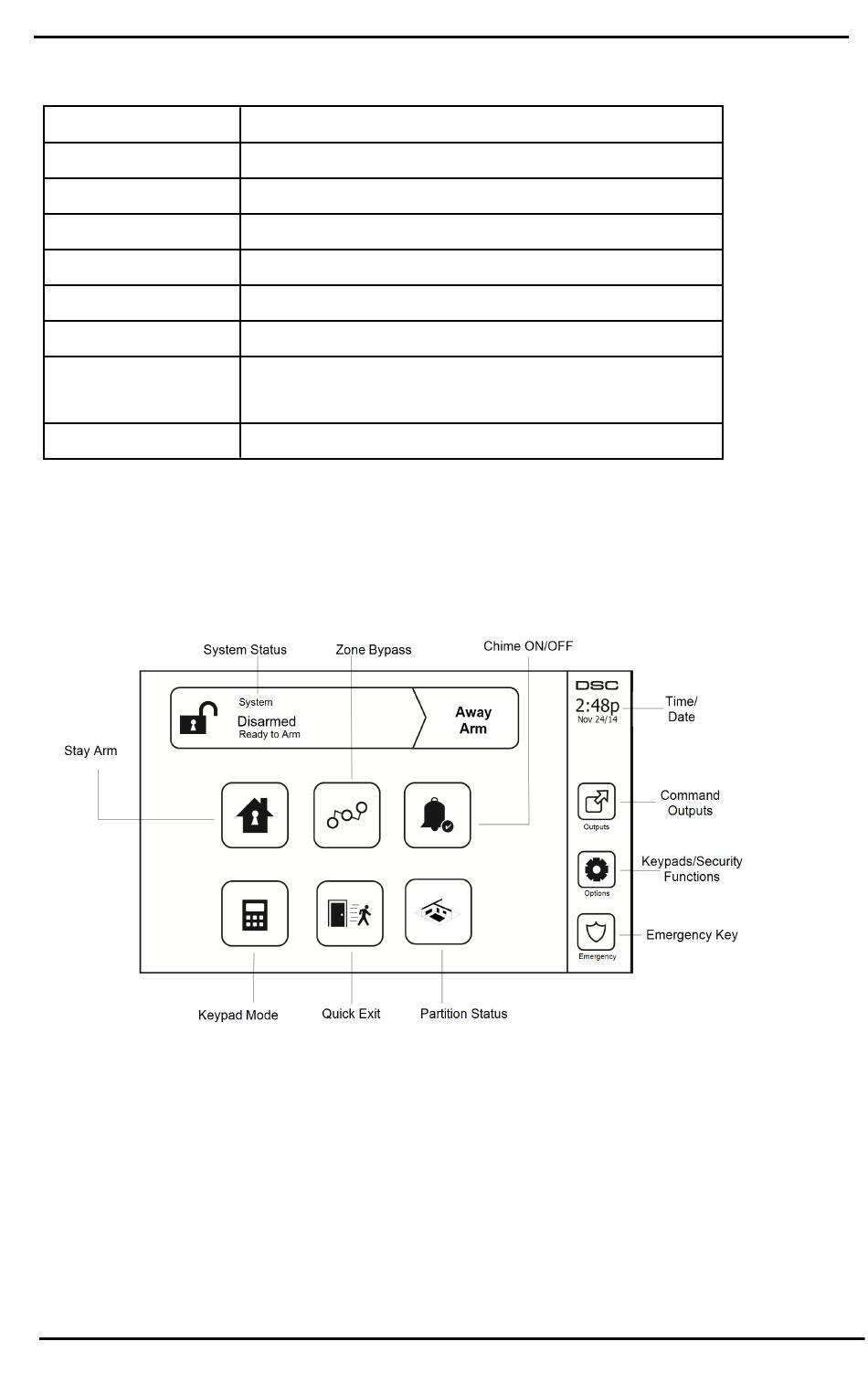

Figure 2- Welcome Screen
7" TFT (800 x 480) pixel) Color Touchscreen
Home/Calibration/Reset
4 (Ready, Armed, Trouble, AC)
8.5" x 5.1" x 0.8" [127.9 mm (L) x 195 mm (W) x 20.35 mm (D)]
70° (top), 50° (bottom)
280 cd/m²
0°C to +49°C (32°F to 120°F)
93% (max) relative humidity non-condensing
Holds any standard Secure Digital (SD) card* (32 x 24 x 2.1 mm)
