Connection:
•
Install the time switch on the control panel of a domestic power distribution system.
•
The contact is made by screw terminals.
Terminalnumbers
1 – 2
8 – 7 – 6
Do not make any electrical contact to the terminals 3, 4 und 5 !
Please leave the installation work to a professional.!
Operating the Device
•
First you have to set up the current time and date.
•
Press the buttons
•
Press the buttons
•
Press the buttons
•
Now you can program the timer switch up to your needs. Press the button (PROG) to enter the
configuration modus. (The LCD shows 1ON).
•
Press the button (D) to set the weekday. You can choose individual weekdays (Mo, Tu, We, Th, Fr. Sa
und Su) or a combination of weekdays as follows:
Combination 1 (whole week) Mo-Tu-We-Th-Fr-Sa-Su
Combination 2 (without weekends) Mo-Tu-We-Th-Fr
Combination 3 (only weekend) Sa-Su
Combination 5 Mo, We, Fr
Combination 6 Tu, Th, Sa
Combination 7 Mo-Tu-We
Combination 8 Th-Fr-Su
Combination 9 Mo, We, Fr, Su
•
Press the buttons (H) and (M), to set the hour and the minutes.
•
Press the button (PROG) again to set the off time for the timer. (The LCD shows 1OFF)
•
With the button (R) you can delete programmed data or by using (R) twice you can recall the former
setting.

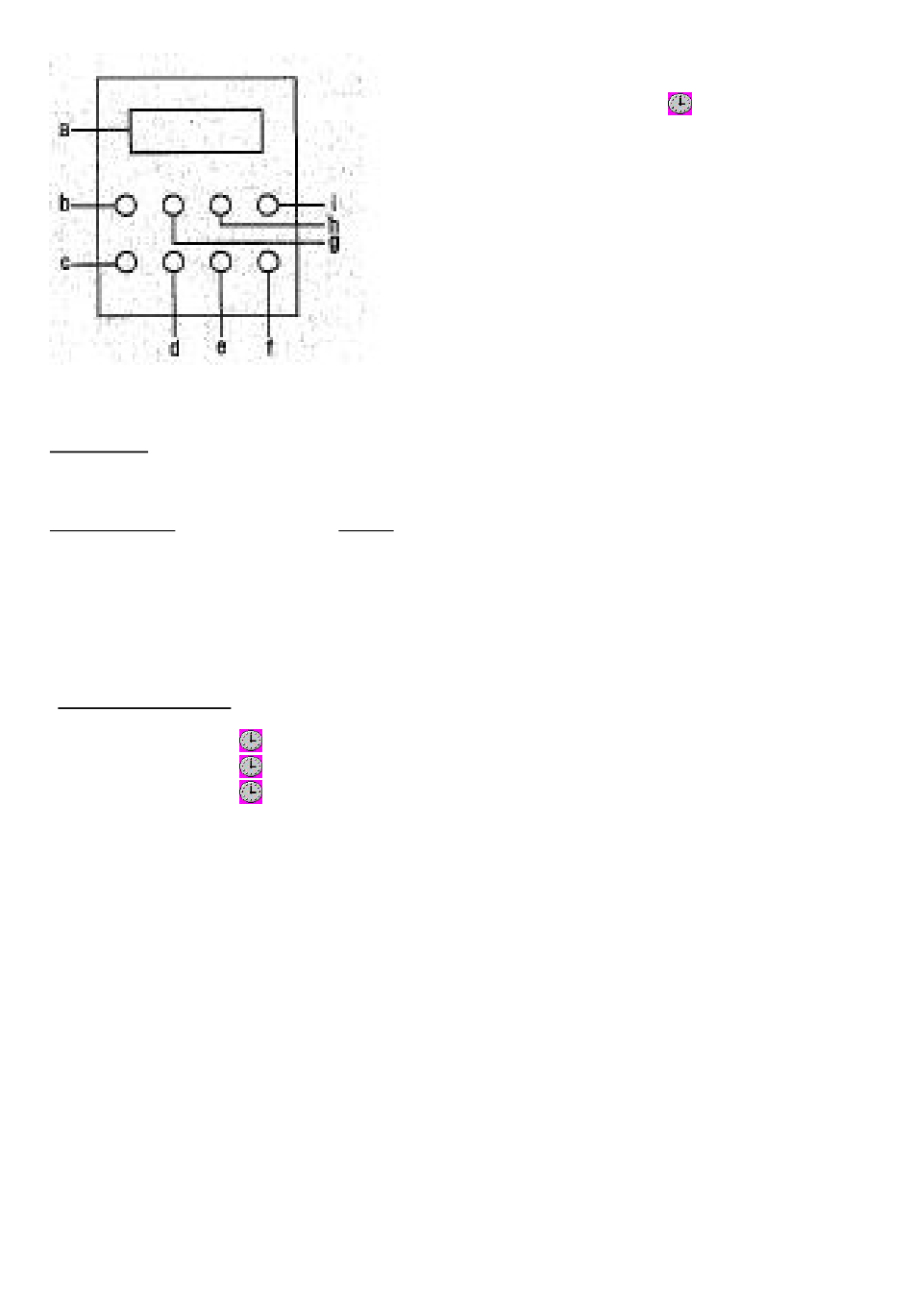

a = LC-Display
b = Time- and control state indicator
c = Program set up button (PROG)
d = Clear button (R)
e = Operating mode switch Auto oder Manual (MAN)
f = Reset button (RST)
g = Weekday set up button (D)
h = Hour set up button (H)
i = Minute set up button (M)
Contact
Voltage supply 230 – 250 V ~ 50 – 60 Hz
Changeover contact max. switching capacity 240 V ~ 16(1) A
and (H) at the same time to set the hour.
and (M) at the same time to set the minutes.
and (D) at the same time to set the day of the week.
E.T.T. Electronic Toys Trading GmbH Kreuzstraße 65/66 38118 Braunschweig
Nachdruck oder Vervielfältigung nur mit ausdrücklicher Genehmigung
975-048
