Chimney insulation material thickness for a room temperature from 18 to 22 C°, and an outside
temperature of - 15 C°.
relative humidity (in %)
Insulation material thickness (in cm)
Thermal conductivity of the insulation material: WLG 040
The insulation material should be clad with a vapour barrier or a water resistant material.
Interior Exterior
50 60
1,5 2
Insulation of the stainless steel tubing (see Table 3)
Stainless Steel Pipe, Ø 100 mm
Rosette
Connecting Piece, interior
e.g. Drain Pipe (PVC pipe)
Ø 100 mm

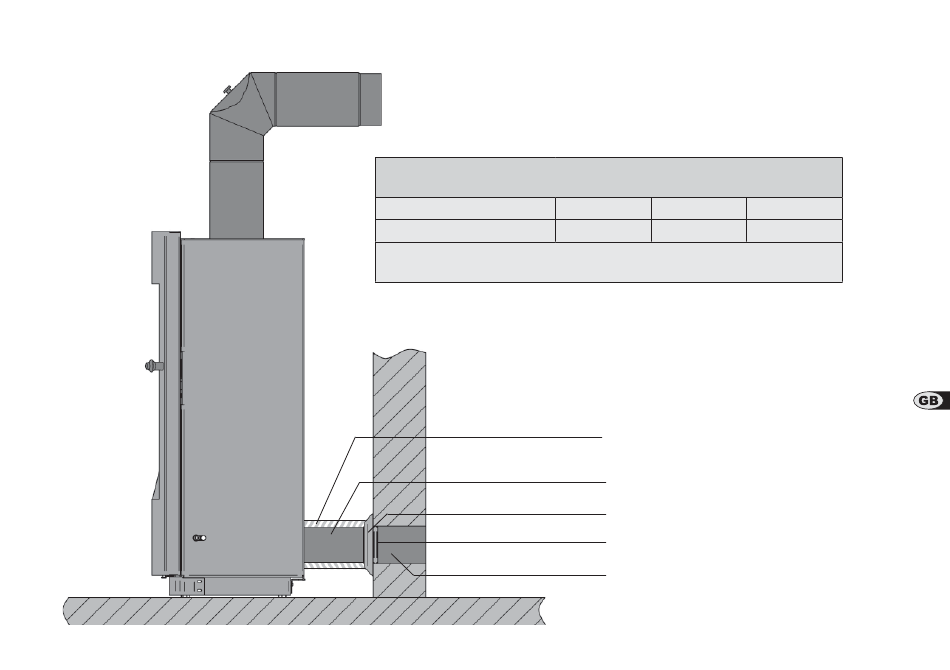

fi g. 14: Connection to an Air Supply Pipe Typ FC 51x
70
2,5
