▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬ ELECTRIC FRYERS
Description
Power
Power supply
Appliance dimensions
Frying chamber capacity
Packaging dimensions
Net weight
Installation type

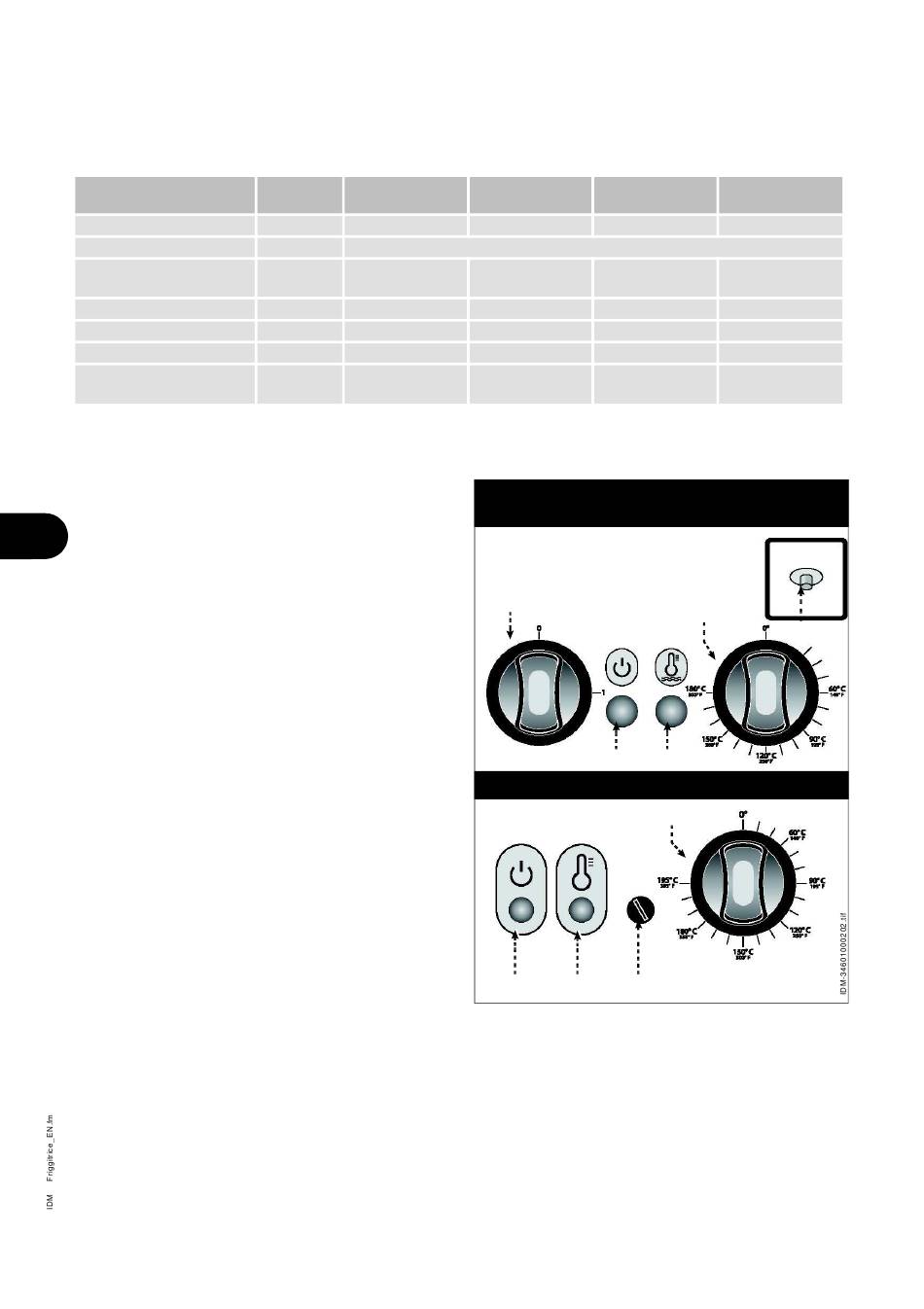

CONTROL DESCRIPTIONS

The appliance is equipped with the listed
control devices, required to run its main
EN
functions.
A) Main switch: used to turn the appliance
on and off.
B) Thermoregulator: used to adjust the
temperature.
C) Indicator light: when on, the electrical
resistances are on. The light turns off
when the set temperature is reached.
D) Safety thermostat: cuts off electrical
power in the event of overheating.
E) Thermoregulator: used to run the ap-
pliance and regulate temperature.
F) Indicator light: when on, the appliance
is electrically powered.
G) Indicator light: when on, the electrical
resistances are on. The light turns off
when the set temperature is reached.
H) Safety thermostat: cuts off electrical power in the event of overheating.
Unit of
SFM/13
measure
kW 9
V Ph Hz
370x660x1000÷
mm
1040
Litres 13
mm 1030x460x800
kg 31
Floor installation Floor installation Floor installation
- 10 -
SFM/18 SFM/18D
11,5 11,5+11,5
400V/3N/50-60Hz
400x700x978 800x700x978
18 18+18
800x500x1200 800x900x1200
40 72
FR4 - FR44 - FR8 - FR88 - FR8R
FR88R - FR10R - FR1010R - SF/25P
A
F
SFM/13 - SFM/18 - SFM/18D
F G H
SF/25P
9
585X660X280÷
420
25
765X665X440
23
Counter
installation
B
D
C
E
English language
