ENGLISH

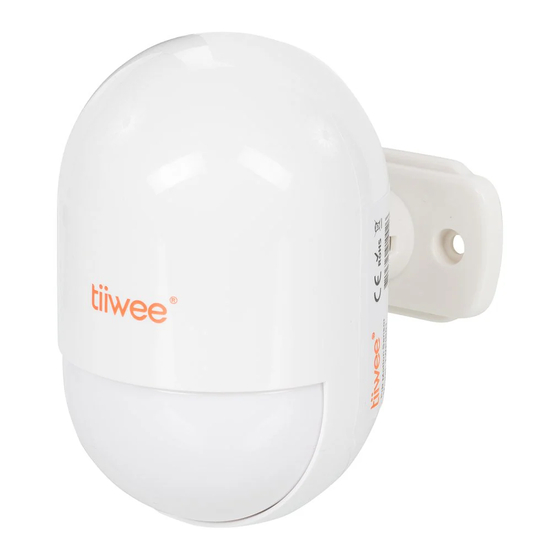

Tiiwee PIR Motion Sensor (For indoor use only)
For Tiiwee Home Alarm System
Introduction
Congratulations with your Tiiwee passive infrared detector. It is intended to be used in combination with
the components of the Tiiwee Home Alarm System and can be wirelessly connected to either the Tiiwee
A2 PIR Siren Alarm or the Tiiwee A1 Alarm Unit (available separately).
This sensor applies digital dual-core fuzzy logic control processing technology and intelligent analysis
algorithms to prevent false alarms. It also features various settings to adjust the PIR sensor to your
personal situation.
Important: This sensor has been programmed to respect a 5 second delay between 2 signals. This is
intentional to save battery power.
Box contents
1 x Tiiwee PIR sensor for Tiiwee Home Alarm System
2 x batteries, 1.5V AAA-type, alkaline
1 x ball-joint mount
2 x screws
1 x double sided mounting tape
1 x instructions for use

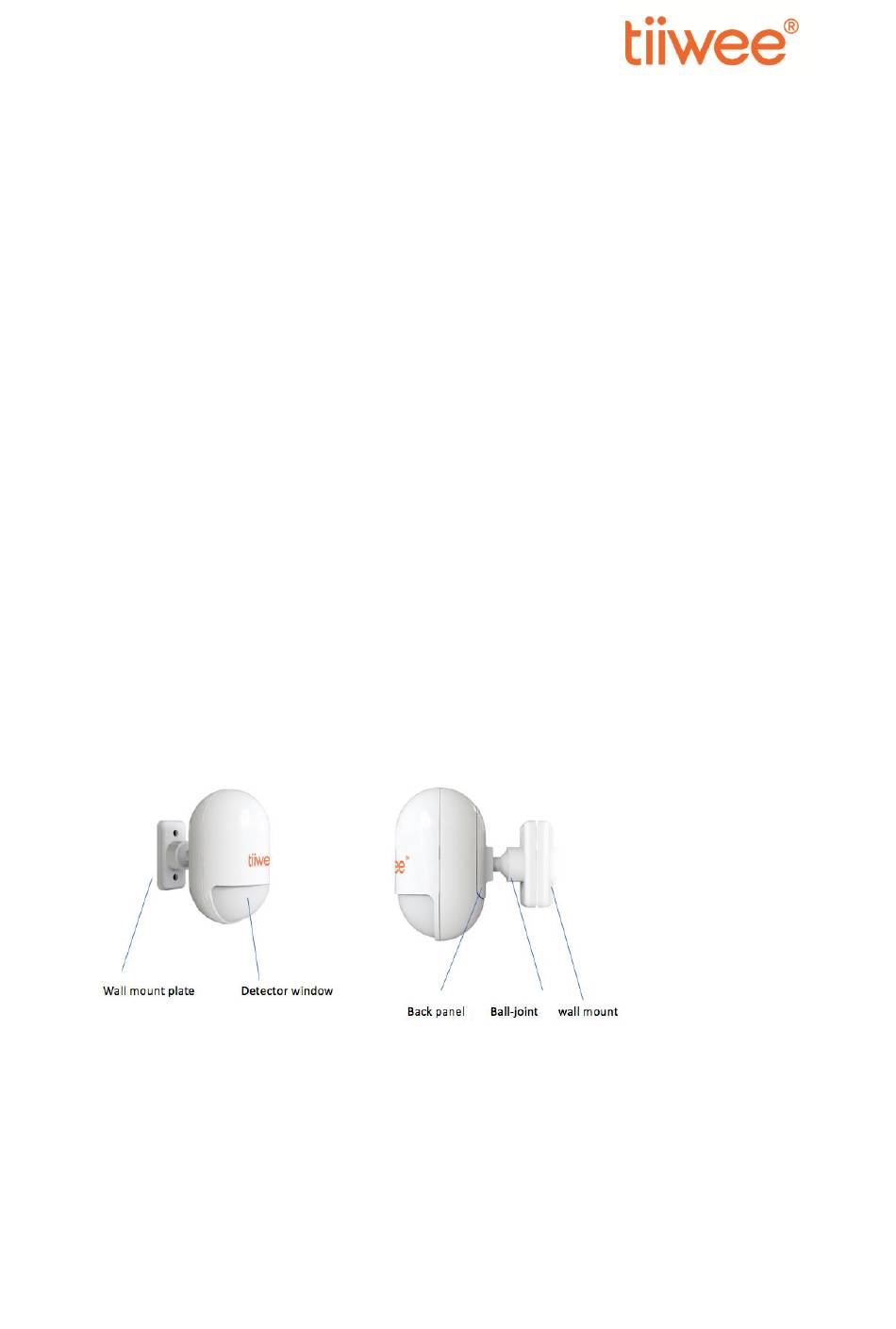

Product Overview and activation
To insert the batteries slide off the back panel downwards. Insert the batteries respecting the correct
polarity. Now, slide the back panel in place again. Slide the ball joint in place until it locks in place and
attach the wall mount on the ball joint. Your PIR sensor is now ready to be installed on the mount.
General installation guidelines
Avoid positions that are close to a window, air conditioners, fluorescent lights, heaters, refrigerators,
stoves, and direct sunlight and other places where temperature would change rapidly and air flow is
high. If there are two detectors in the same detecting range, please adjust the position to avoid
