GENERAL

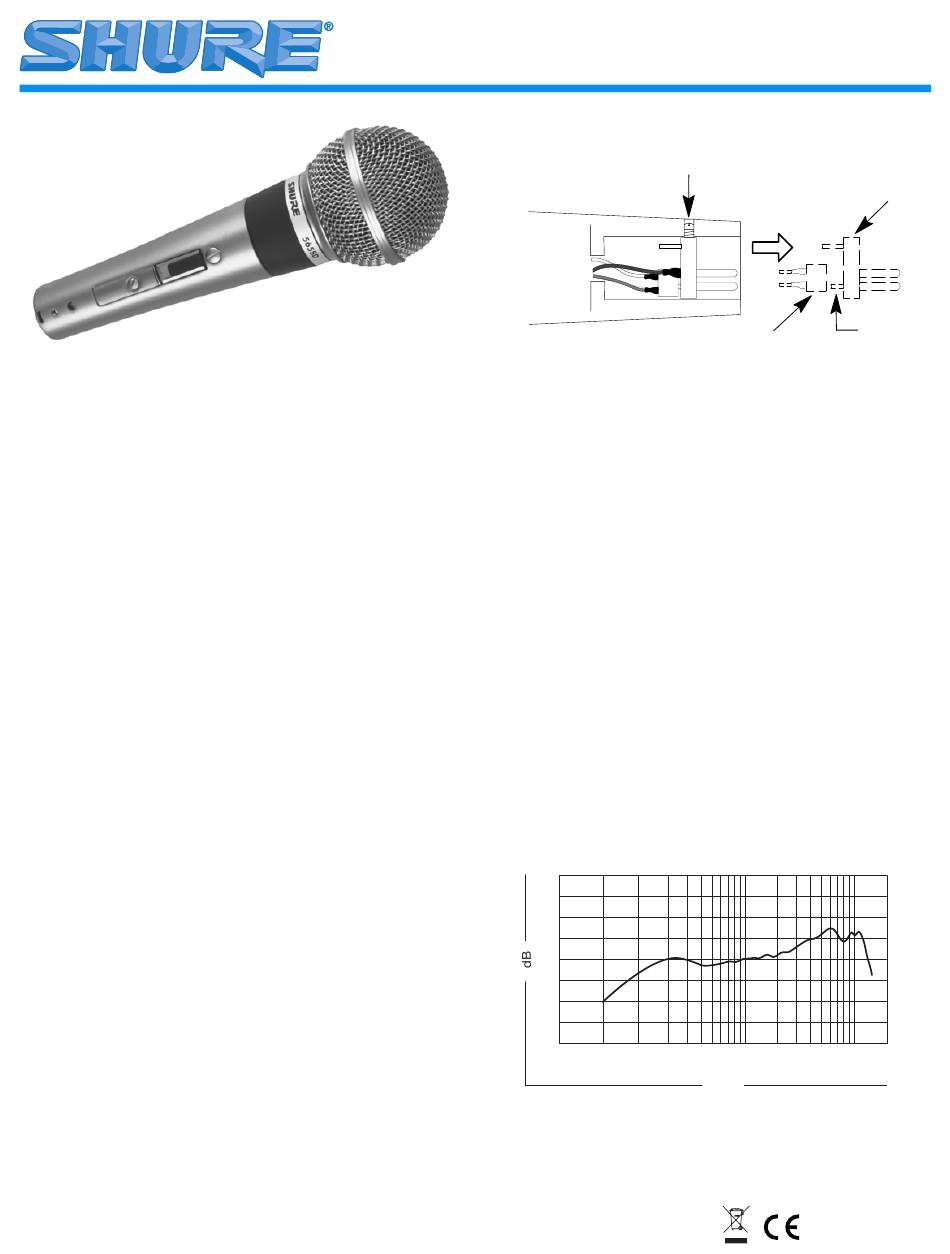

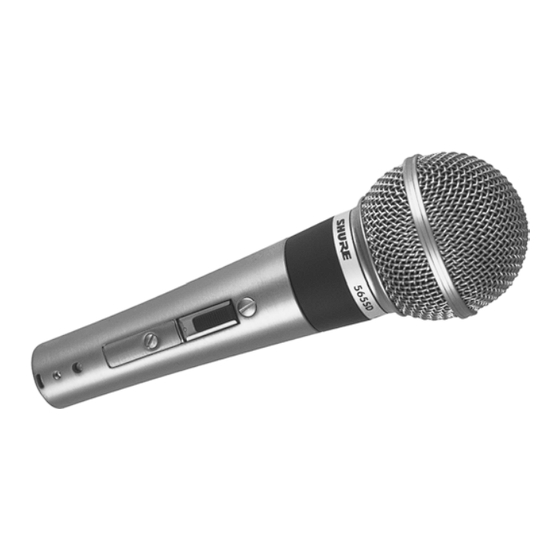

The UNISPHERE I 565 Series microphones are dual-imped-
ance, unidirectional dynamic microphones with a strong,
wire-mesh, spherical front grille that contains a highly effective
wind and "pop" filter.
Shipped connected for low-impedance operation, 565 Series
microphones provide excellent vocal or speech reproduction on
lecterns and stages, and are a popular choice for use in public au-
ditoriums, churches, convention halls, and schools.
FEATURES
• Selectable dual impedance operation
• Silent magnetic reed on/off switch with lock-on option
• Cardioid dynamic
• Frequency response: 50 to 15,000 Hz
MODEL VARIATIONS
Model 565SD-CN: Supplied with 6.1 m (20 ft) XLR cable.
Model 565SD-LC: No cable supplied.
CONNECTIONS
When using the microphone with a balanced input, pins 2 and 3
are the audio signal carriers. When using the microphone with an
unbalanced input, use a cable wired with pin 2 as the signal carrier
and pin 3 connected to the cable shield (ground), such as the
Shure C20HZ high-impedance cable.
IMPEDANCE SELECTION
The microphone is shipped connected for low impedance oper-
ation. To change to high impedance, proceed as follows (refer to
Figure 1):
1. Remove plug element at receptacle end of microphone by
turning slotted setscrew in (counterclockwise) and carefully
withdrawing plug element from case.
2. Disconnect 2-terminal impedance selection socket from rear
of plug element.
3. Reconnect 2-terminal impedance selection socket in reverse
position so that pin 3 of plug element is inserted in socket ter-
minal "H" (White).
