Gallagher PowerBox Betriebsanleitung Seite 6

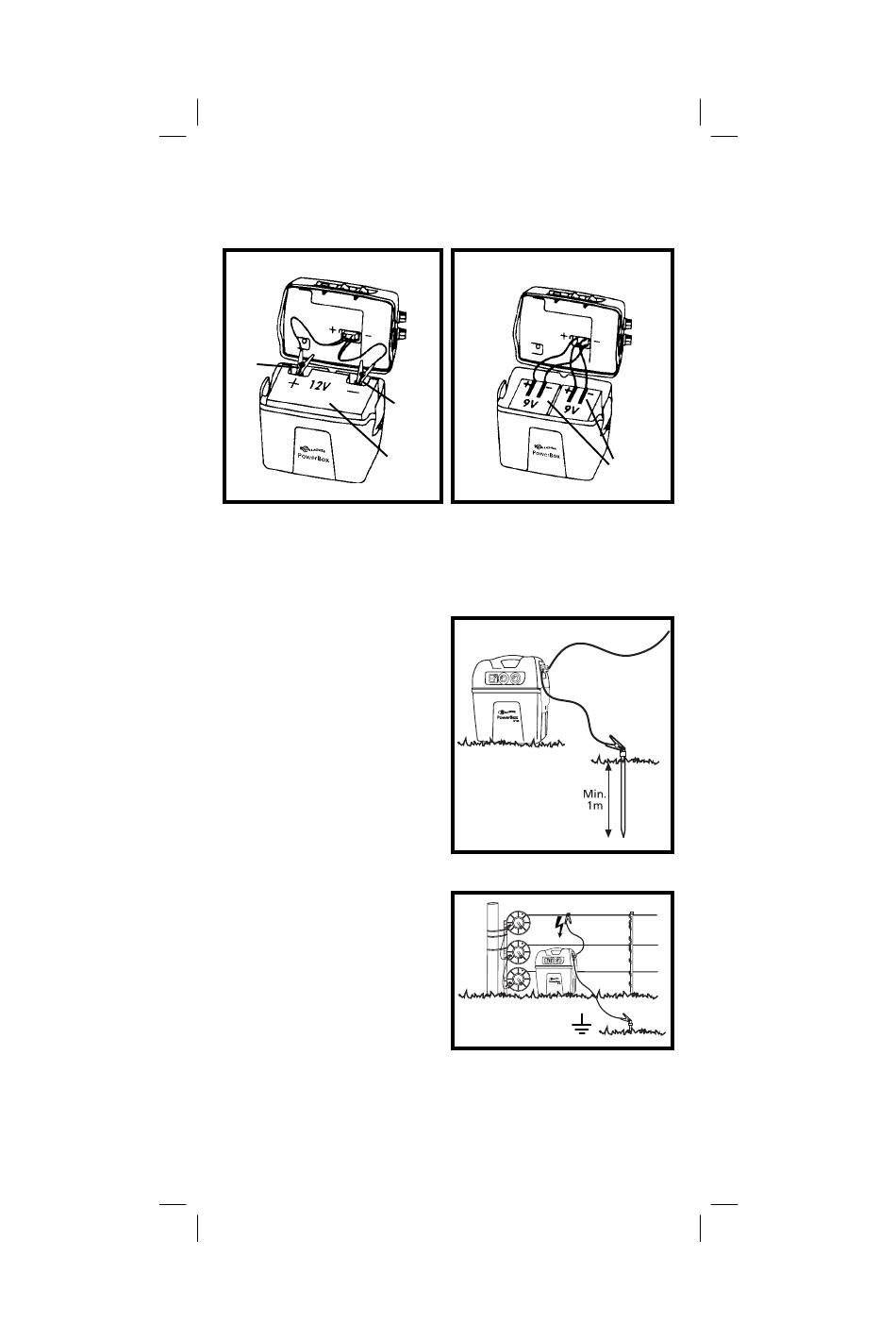

Install the Energizer
1. Connect Battery
One 12 volt battery or two 9 volt* batteries.
Connecting a 12V battery
Red
ALWAYS leave battery (batteries)
disconnected during storage.
2. Earth System
Earthing the Energizer
is the key to a
successful Power Fence.
We recommend using
a galvanised earth
stake, driven 1m (3ft)
into the ground.
3. Connect to earth & fence
a. Connect the earth stake
to the green Energizer
terminal using the green
leadset provided.
The wire must be fi rmly
clamped to the earth
stake.
b. Connect the fence line
to the red Energizer
terminal using the
red leadset provided.
The wire must be fi rmly
clamped to the fence
wire.
6
Connecting two 9V batteries
PowerBox 100 ONLY
Red (+)
Black (-)
Black
Battery
*Always use two 9V batteries
Batteries
Red
Green
