TPR-12SP
Order no. 24.7340
OUTPUT L
1+
2+
INPUT L
L IN
1+
2+
Frequenzweiche
crossover network
125 Hz/6 dB
INPUT R
1+
R IN
2+
OUTPUT R
1+
2+
Diagram
subwoofer TPR-12SP
satellite speaker L
INPUT
LINK
Connection stereo operation
subwoofer TPR-12SP
satellite speaker
INPUT
LINK
Connection mono operation
®
TPR-12SP
Power handing:
System impedance:
Serial N°
Made in Italy by PROEL spa
Pin 1+ Positive
Pin 2- Negative
1
INPUT L
Doppelschwing-
spulen-Woofer
dual voice coil
3
woofer
OUTPUT L
Connection panel
from amplifier
L
R
TPR-12SP
Stereo Subwoofer
150+150
Power handing:
Watts
System impedance:
4+4
ohm
Serial N°
Made in Italy by PROEL spa
Pin 1+ Positive
Pin 2- Negative
INPUT L
INPUT R
OUTPUT L
OUTPUT R
from amplifier
TPR-12SP
Stereo Subwoofer
150+150
Power handing:
Watts
4+4
System impedance:
ohm
Serial N°
Made in Italy by PROEL spa
Pin 1+ Positive
Pin 2- Negative
INPUT L
INPUT R
OUTPUT L
OUTPUT R
Speakon plug rear side (screwed off)
®
Subwoofer PA Speaker System
GB
1

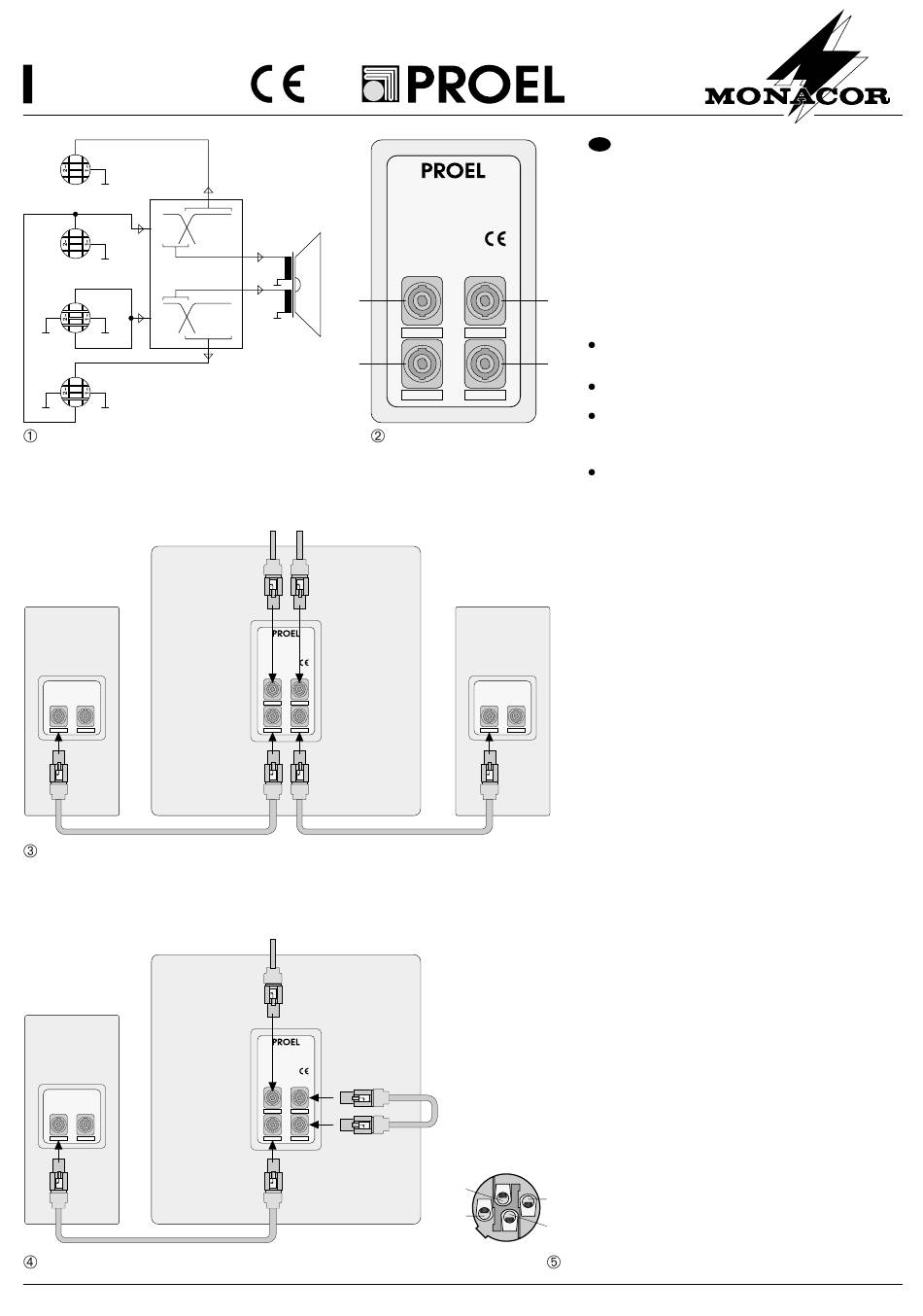

Connections (fig. 2)
Stereo Subwoofer
1 Input left channel
150+150
Watts
2 Input right channel
4+4
ohm
3 Output left channel (to the left satellite speaker system)
4 Output right channel (to the right satellite speaker system)
2
2
Safety Notes
The speaker system corresponds to the directive 89/336/
EEC for electromagnetic compatibility.
INPUT R
The speaker system is suitable for indoor use only. Protect
it against humidity and heat (admissible ambient tempera-
4
ture range 0–40 °C).
For cleaning only use a dry, soft cloth. Do not use any
OUTPUT R
chemicals or water.
If the speaker system is used for purposes other than orig-
inally intended, if it is connected in the wrong way, over-
loaded, or not repaired by authorized, skilled personnel,
there is no liability for possible damage.
If the speaker system is to be put out of operation defini-
tively, it must be disposed of in a local recycling plant.
3
Connections
The connection is made via Speakon jacks. For the connec-
tion, put the Speakon plug into the corresponding jack and
turn it to the right until it engages. For pulling it out, slide the
safety bar at the plug backwards, and turn the plug to the left.
satellite speaker R
3.1 Stereo operation (fig. 3)
1) Connect jack INPUT L (1) with the left channel of the
amplifier output.
2) Connect jack INPUT R (2) with the right channel of the
amplifier output.
3) Connect jack OUTPUT L (3) with the left satellite speaker
system.
4) Connect jack OUTPUT R (4) with the right satellite speaker
system.
INPUT
LINK
3.2 Mono operation (fig. 4)
1) Connect jack INPUT L (1) with the amplifier output.
2) Connect jack OUTPUT L (3) with the satellite speaker
system.
3) Connect jack INPUT R (2) and jack OUTPUT R (4) via a
special Speakon cable. With this cable the Speakon con-
tacts 2+ of both jacks and the contacts 2- (fig. 5) must be
connected. The contacts 1+ and 1- of both jacks must not
be connected!
4
Specifications
Speaker diameter: . . . . . . . . 30.5 cm (12")
Music power: . . . . . . . . . . . . 2 x 300 W
Power rating: . . . . . . . . . . . . 2 x 150 W
Impedance: . . . . . . . . . . . . . 2 x 4 Ω
Frequency range: . . . . . . . . . 40 – 160 Hz, ±6 dB
Crossover network: . . . . . . . 125 Hz/6 dB
Sensitivity SPL (1 W/1 m): . . 94 dB
Max. sound pressure: . . . . . 116 dB
Ambient temperature: . . . . . 0 – 40 °C
Dimensions (W x H x D): . . . 440 x 440 x 480 mm
Weight: . . . . . . . . . . . . . . . . . 27.2 kg
According to the manufacturer.
Subject to change.
2+
1-
2-
1+
®
