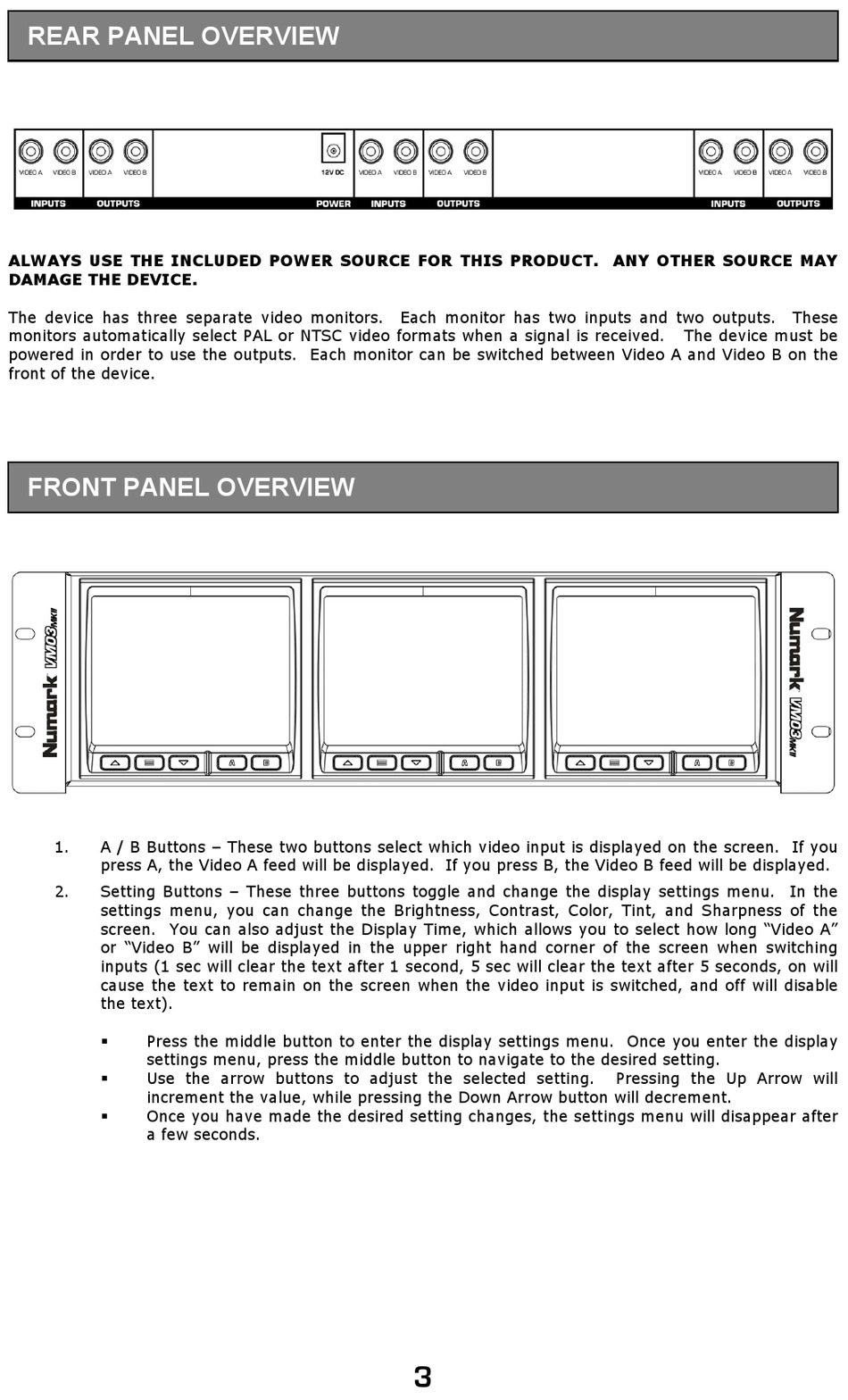

REAR PANEL OVERVIEW

ALWAYS USE THE INCLUDED POWER SOURCE FOR THIS PRODUCT. ANY OTHER SOURCE MAY
DAMAGE THE DEVICE.
The device has three separate video monitors.
monitors automatically select PAL or NTSC video formats when a signal is received.
powered in order to use the outputs. Each monitor can be switched between Video A and Video B on the
front of the device.

FRONT PANEL OVERVIEW

1. A / B Buttons – These two buttons select which video input is displayed on the screen. If you
press A, the Video A feed will be displayed. If you press B, the Video B feed will be displayed.
2. Setting Buttons – These three buttons toggle and change the display settings menu. In the
settings menu, you can change the Brightness, Contrast, Color, Tint, and Sharpness of the
screen. You can also adjust the Display Time, which allows you to select how long "Video A"
or "Video B" will be displayed in the upper right hand corner of the screen when switching
inputs (1 sec will clear the text after 1 second, 5 sec will clear the text after 5 seconds, on will
cause the text to remain on the screen when the video input is switched, and off will disable
the text).
Press the middle button to enter the display settings menu. Once you enter the display
settings menu, press the middle button to navigate to the desired setting.
Use the arrow buttons to adjust the selected setting.
increment the value, while pressing the Down Arrow button will decrement.
Once you have made the desired setting changes, the settings menu will disappear after
a few seconds.
Each monitor has two inputs and two outputs.
4!
The device must be
Pressing the Up Arrow will
These
