Installation - Numark VM03mkII Kurzbedienungsanleitung

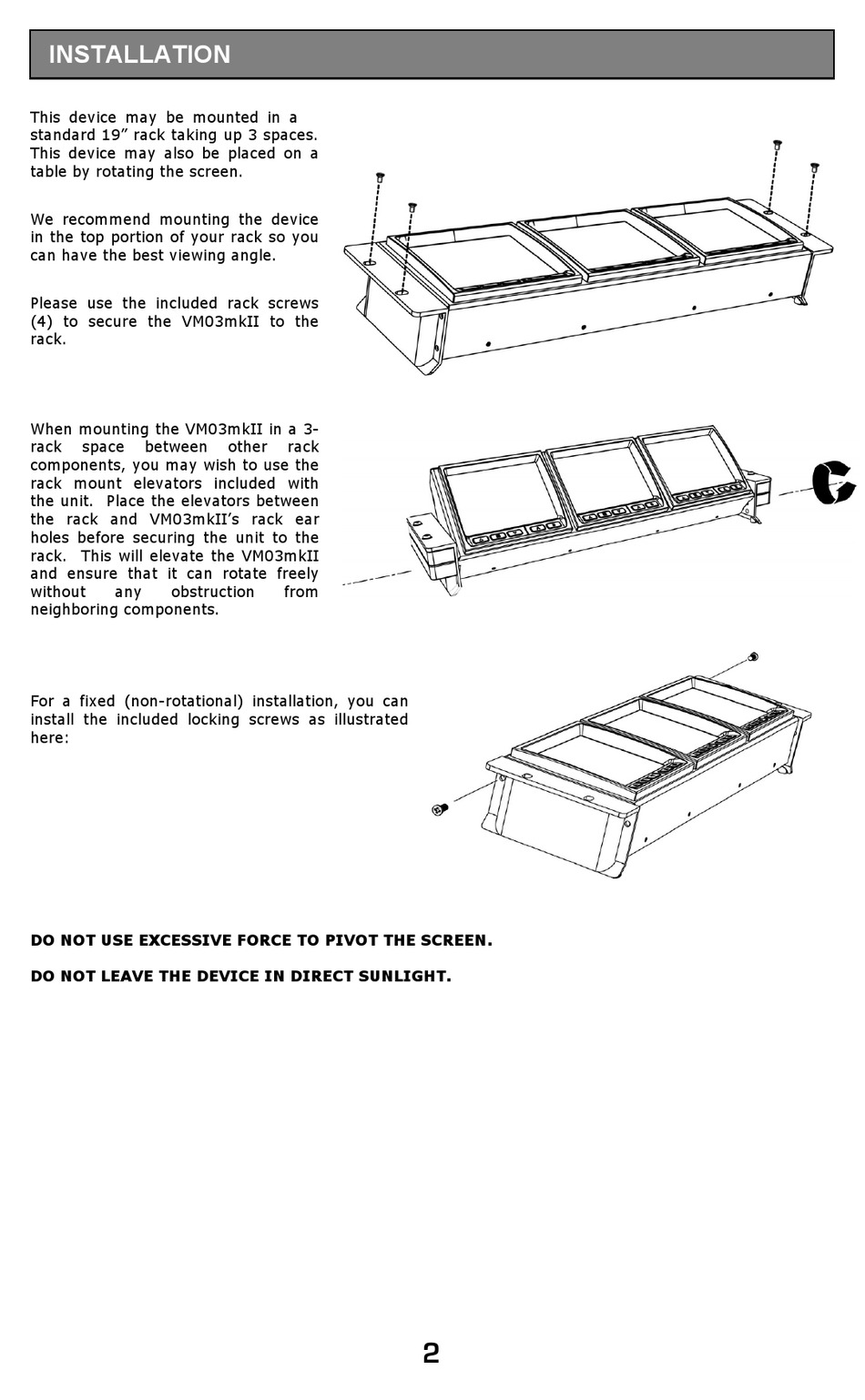

INSTALLATION

This device may be mounted in a
standard 19" rack taking up 3 spaces.
This device may also be placed on a
table by rotating the screen.
We recommend mounting the device
in the top portion of your rack so you
can have the best viewing angle.
Please use the included rack screws
(4) to secure the VM03mkII to the
rack.
When mounting the VM03mkII in a 3-
rack space between other rack
components, you may wish to use the
rack mount elevators included with
the unit. Place the elevators between
the rack and VM03mkII's rack ear
holes before securing the unit to the
rack. This will elevate the VM03mkII
and ensure that it can rotate freely
without any obstruction from
neighboring components.
For a fixed (non-rotational) installation, you can
install the included locking screws as illustrated
here:
DO NOT USE EXCESSIVE FORCE TO PIVOT THE SCREEN.
DO NOT LEAVE THE DEVICE IN DIRECT SUNLIGHT.
