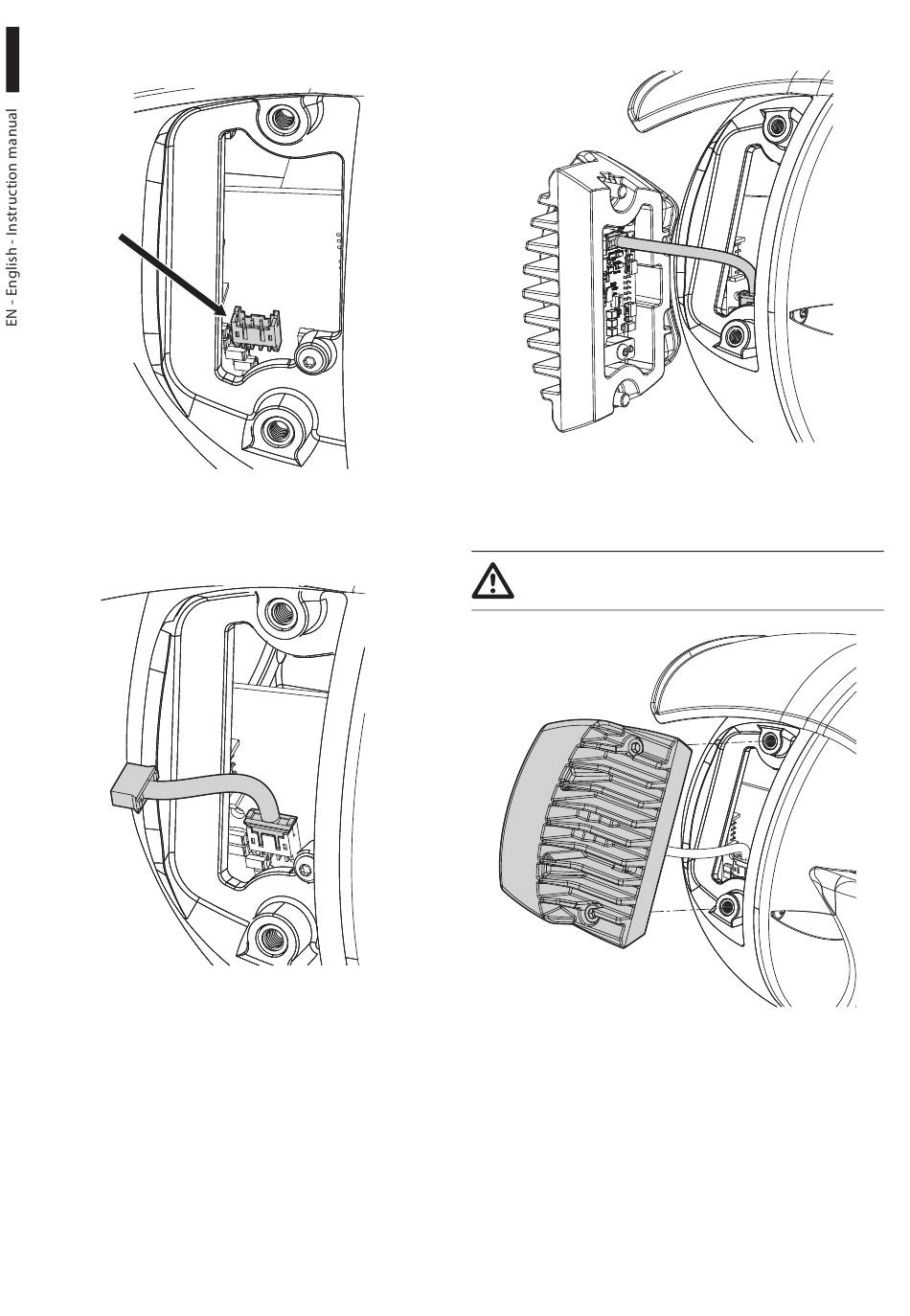

Identify the 8-pin male connector for illuminator
connection.
Fig. 2
Insert the cabling supplied in the connector for
illuminator connection.
Fig. 3
4
Connect the illuminator.
Fig. 4
Fasten the illuminator to the PTZ using the specific
screws.
Pay attention to the fixing. Tightening
torque: 2.5Nm (±0.2Nm).
Fig. 5
The PTZ automatically recognises the type of
illuminator installed.
