Warranty Statement
Congratulations! The product you have selected comes from Hella - one of the world's
leading manufacturers of lighting products. The product comes with a 5 year warranty
from end user purchase covering faults in materials, components or workmanship.
In the unlikely event that you should experience a confirmed warranty related problem with your
purchase, Hella will, at its discretion, either repair, replace or refund the purchase price of the
product.
Warranty services may be obtained by returning the product within the warranty period to the
Hella Dealer where the product was originally purchased.
This warranty is in addition to and does not preclude any other rights or remedies available to the
consumer under any local legislation related to the provision of goods or services.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does not amount to a major
failure.
This warranty does not cover:
1.) Claim/s as a result of normal wear and tear or of any modifications and / or alterations to the product in any
shape or form.
2.) Claim/s as a result of non-compliance of the assembly, service and operating instructions and/or any unfit or
improper use.
3.) Any expenses incurred in the process of making the claim.
Note: For lamps sold in Australia warranty services are provided by
Hella Australia Pty Ltd, 54-76 Southern Rd, Mentone VIC 3194.
Customer Service 1800 061 729 custservice@ha.hella.com,
http://www.hella.com/hella-au/21.html
For general comments about Hella's products please e-mail techfeedback@hellamarine.com

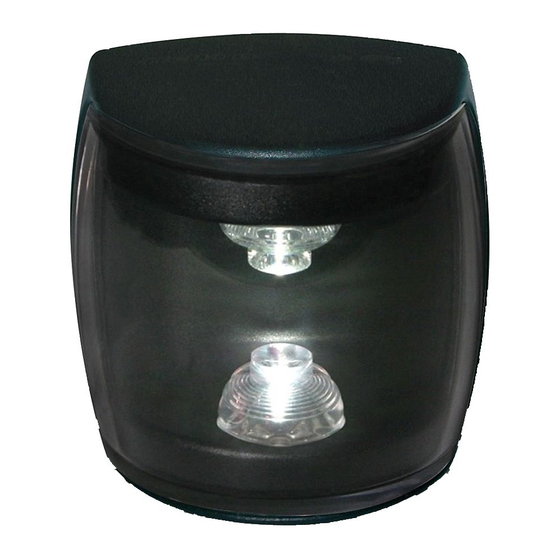

NaviLED PRO 2 Nautical Mile
Port / Starboard / Stern Lamp
Hella marine LED Navigation Lamps offer many advantages over conventional bulb lamps.
Significantly reduced power consumption, ultra long life and high tolerance to shock and
vibration make the LED lamps the ideal choice for the harsh marine environment.
The Hella marine NaviLED PRO series are Precision Optical Instruments, tested and type
approved to comply with international maritime regulations. They are covered by a 5 year
warranty.
Material Description UV resistant lens, high impact shroud
Minimum Visible Distance 2 Nautical Miles
Cable Pre-wired with 2.5m of marine cable
Operating Voltage Multivolt 9-33V DC
Voltage Protection Spike protected to +500 volts
Reverse polarity protected to -700 volts
Power Consumption
Less than 2W (0.14A@12V/0.08A@24V)
Degree of Protection IP67 - Completely sealed
Weight 150g (including cable)
Dimensions
c c a a
c a
Electromagnetic Compatibility (EMC)
Dimensions Dimensions Dimensions
This LED lamp is an electronic device. The electrical circuits contain components that
a = 87mm / 3.43" a = 87mm / 3.43"
a = 87mm / 3.43"
suppress possible interference, both emission as well as susceptibility, to the limits
b = 90mm / 3.54" b = 90mm / 3.54"
b = 90mm / 3.54"
prescribed in international regulations.
c = 57mm / 2.25" c = 57mm / 2.25"
c = 57mm / 2.25"
d = 50mm / 1.97" d = 50mm / 1.97"
d = 50mm / 1.97"
Protection against damage due to voltage spikes
This lamp is protected against reverse polarity connection and negative voltage spikes of
up to 700 volts.
c a
Dimensions
a = 87mm / 3.43"
d d
d b b b
b = 90mm / 3.54"
c = 57mm / 2.25"
d = 50mm / 1.97"
