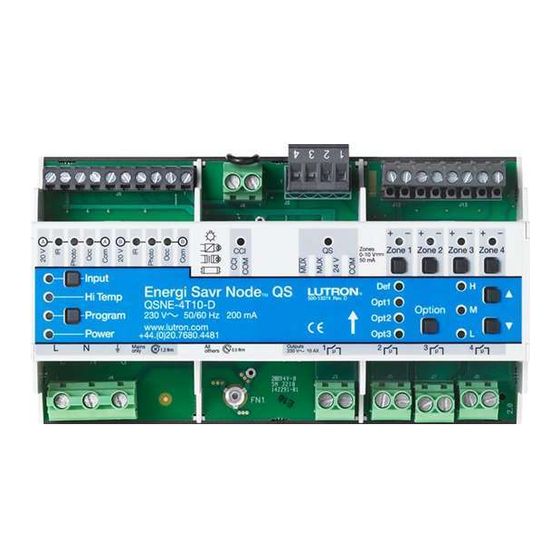

Lutron QSNE-4T10-D Installationsanleitung

Energi Savr Node
Please read this guide before installing.
Contents
Ratings and Model number overview ....................................1
Product overview..................................................................2
Wiring overview....................................................................2
Mounting ..............................................................................3
Control power wiring ............................................................3
Load wiring ..........................................................................4
Input group wiring ................................................................6
PELV Emergency Contact Closure Input .................................6
QS link wiring .......................................................................7
System Programming Connection .........................................9
Sample Application .............................................................10
Out of Box Functionality ......................................................10
Normal Operation ...............................................................11
QS link input(s) setup .........................................................11
Troubleshooting ..................................................................11
Warranty ............................................................................12
Contact information ............................................................12

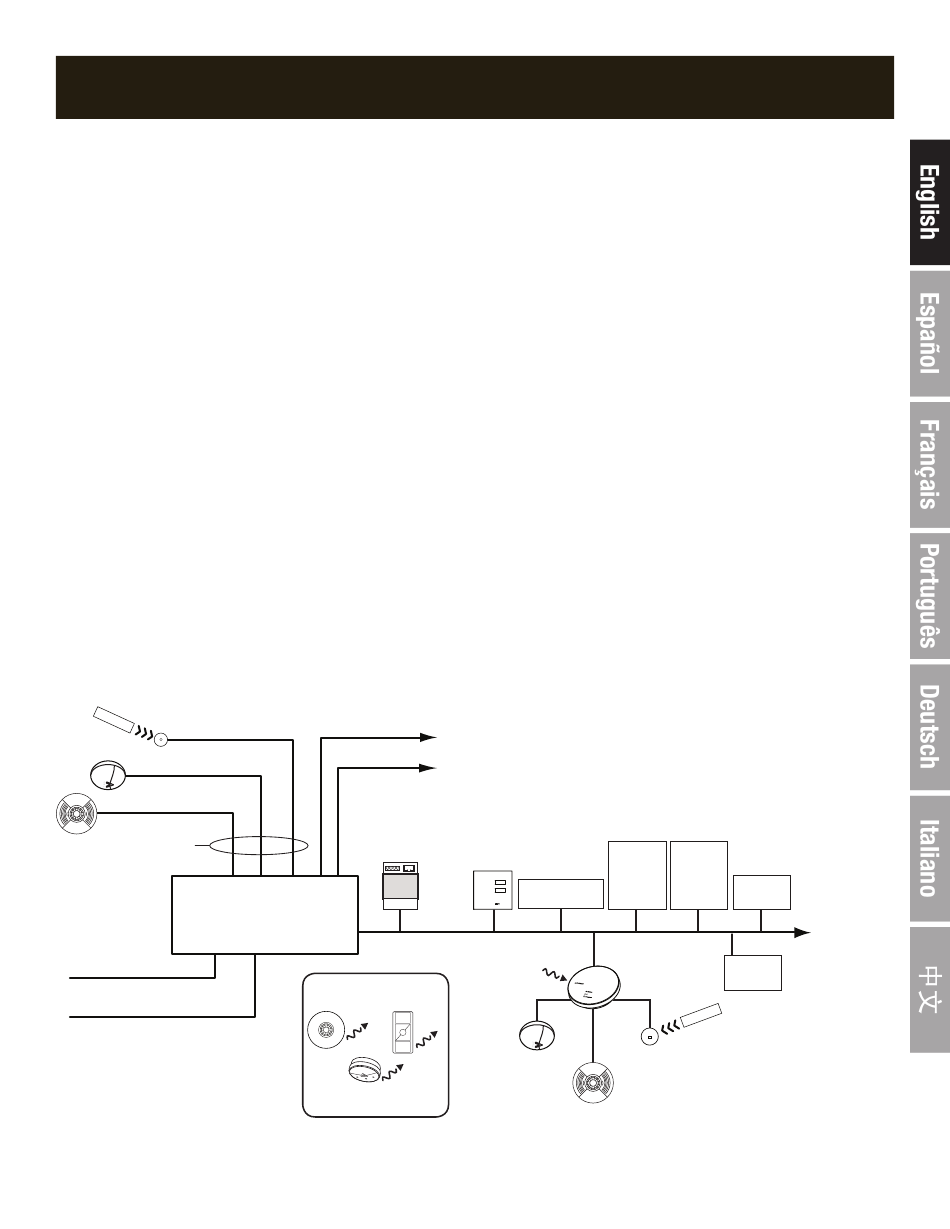

System Example
IR Transmitter
Wired IR Receiver
Wired Daylight Sensor
Wired Occupancy
Sensor
One input group shown;
connections available for
two input groups
Energi Savr Node
QS unit
220-240 V~
Control Power
Contact Closure Input
Note: Multiple QSMs can be
added to increase the number
of wireless inputs and
wireless controllers.
Energi Savr Node QS for 0-10 V / Switching Installation Guide
TM
QS for 0-10 V / Switching
TM
Page
4 switched outputs, 10 AX each (zones 1-4)
4 0-10 V outputs (zones 1-4)
2
(model QSNE-4T10-D only)
Energi Savr Node
Programming
Interface
™
QS Link
Pico wireless
Radio Powr Savr
®
TM
controller (up
Occupancy Sensor
to 10 per QSM)
(up to 10 per QSM)
Pico
®
Radio Powr Savr
TM
Daylight Sensor
2
(up to 10 per QSM)
|
Installation Guide
Ratings
Control Power: 220-240 V ~ 50/60 Hz 200 mA
Output: 0-10 V: 50 mA source/sink per zone (QSNE-4T10-D only)
Switching: 220-240 V ~ 10 AX per output
Operating environment: 0 ˚C to 40 ˚C ambient room temperature
Maximum humidity: 90% non-condensing
Thermal dissipation: 40 BTU/hr
Calibration point maximum: 65 ˚C
QS link: 24 V- 14 PDU (Power Draw Units) 460 mA
Input Groups: 20 V - 65 mA per group
Standards: IEC/EN 60669-2-1
Load types: Incandescent, fluorescent, magnetic low voltage,
electronic low voltage
Model number overview
QSNE-4T10-D (Energi Savr Node
QSNE-4S10-D (Energi Savr Node
QSNE: Energi Savr Node
4T: 4 output zones, switching / 0-10 V fixture controller
4S: 4 output zones, switching only
10: 10 AX per output
D: DIN rail compatible
QS
TM
seeTouch QS
®
Wallstation
Quantum
Panel
Energi Savr
Node QS
TM
Wireless
Communication
Wired
Wired
Daylight
Occupancy
Sensors
1, 2
Sensors
Notes:
1 Up to four wired inputs total (of any type).
2 See "Daylight Sensors" in "Specifications" section
for sensor count options.
QS for 0-10 V)
TM
QS for switching)
TM
QS
TM
QS
Contact
®
Closure
GRAFIK Eye
®
Interface QS Unit
QS Power
QS Sensor
Supply
Module (QSM)
IR Transmitter
Wired
IR Receivers
1
1
Up to 100
total QS
devices
Lutron 1
|
®
