Ports and controls

Ports and controls
DCinputconnector USB port Headphones/SPDIF/Line Outport Touchpad buttons Microphoneport Touchkeys CombinedeSATA/USB port Kensington Lock Webcam Touchpad Keyboard Status indicators DCIN DVI-Iport Networkport DCinputconnector LineIn port 5-in-1cardreader

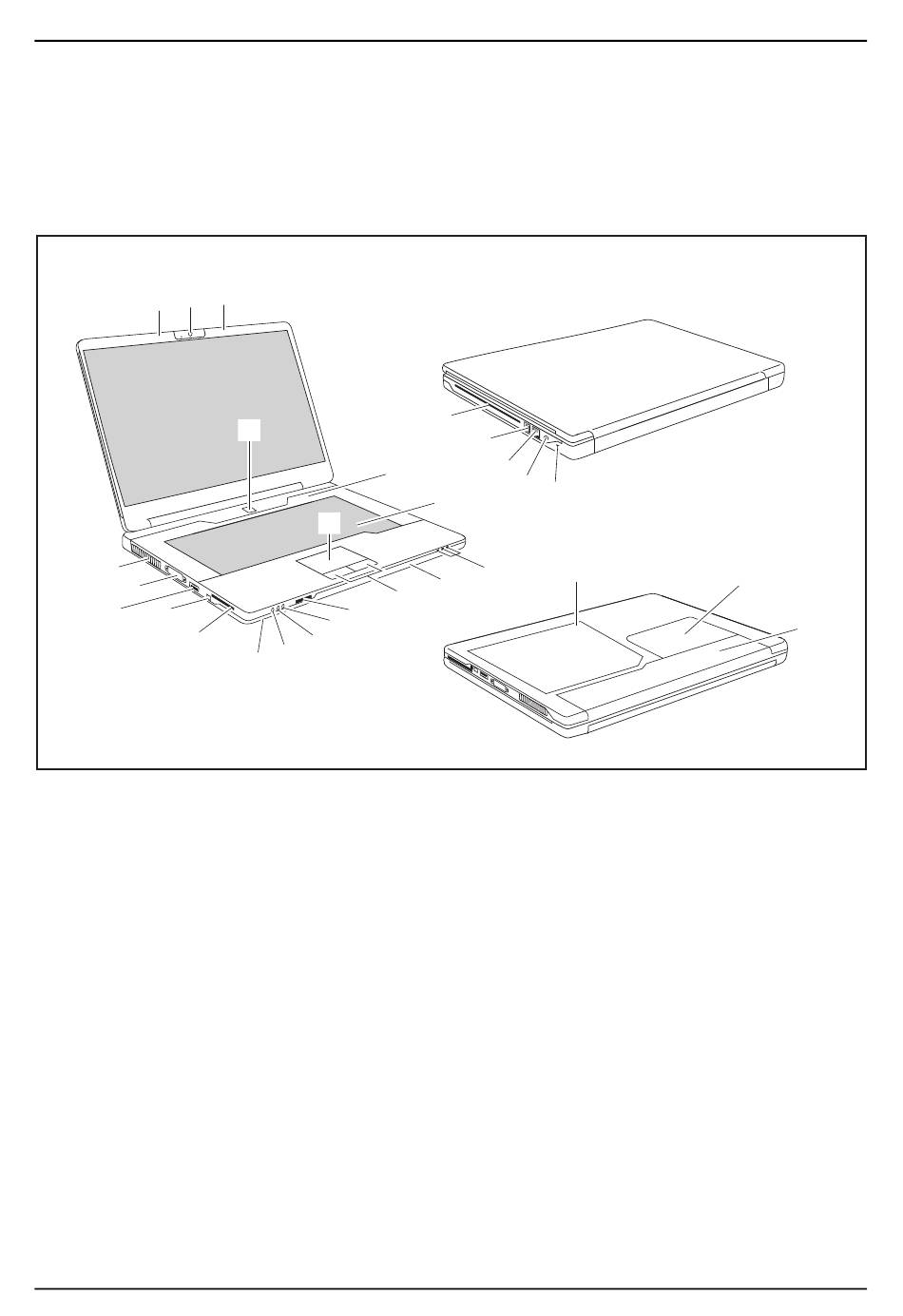

This chapter presents the individual hardware components of your notebook. It gives an
overview of the displays and connections on the notebook. Please familiarise yourself
with these components before you start using your notebook.
1
18
17
16
15 14
13
1 = Webcam
2 = ON/OFF switch
3 = Touch buttons (l. to r.: whisper mode,
media player, CD eject)
4 = Touchpad
5 = Keyboard
6 = Status indicators
7 = Speakers
8 = Touchpad buttons
9 = Multi-format card reader
10 = Microphone port
11 = Line In port
12 = Headphones/SPDIF/Line Out port
13 = ExpressCard slot
2 - English
18
2
4
9
10
11
12
7
19
20
21
3
22 23
5
6
7
8
14 = FireWire port
15 = Combined eSATA/USB port
16 = DVI-I port
17 = Ventilation slots
18 = Microphone
19 = CD/DVD drive (slot-in)
20 = USB ports
21 = Network port
22 = DC input jack (DC IN)
23 = Kensington Lock
24 = Memory service compartment
25 = Hard disk service compartment
26 = Battery
24
25
10600962235, edition 1
26
