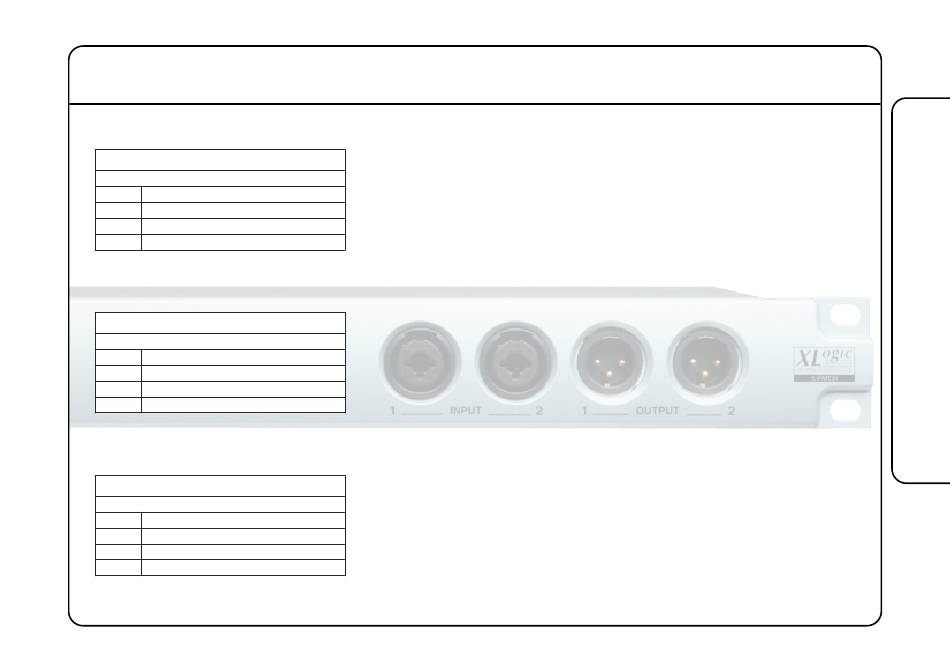

Connections (Front Panel)
Input 1 & 2
Connector Type: XLR 3-pin Female
Pin Description
1 0V
2 Signal +ve
3 Signal –ve
Instrument 1 & 2
Connector Type: 0.25" Stereo Jack
Description
Tip Signal
Ring 0V
Sleeve 0V
Output 1 & 2
Connector Type: XLR 3-pin Male
Pin Description
1 0V
2 Signal +ve
3 Signal –ve
