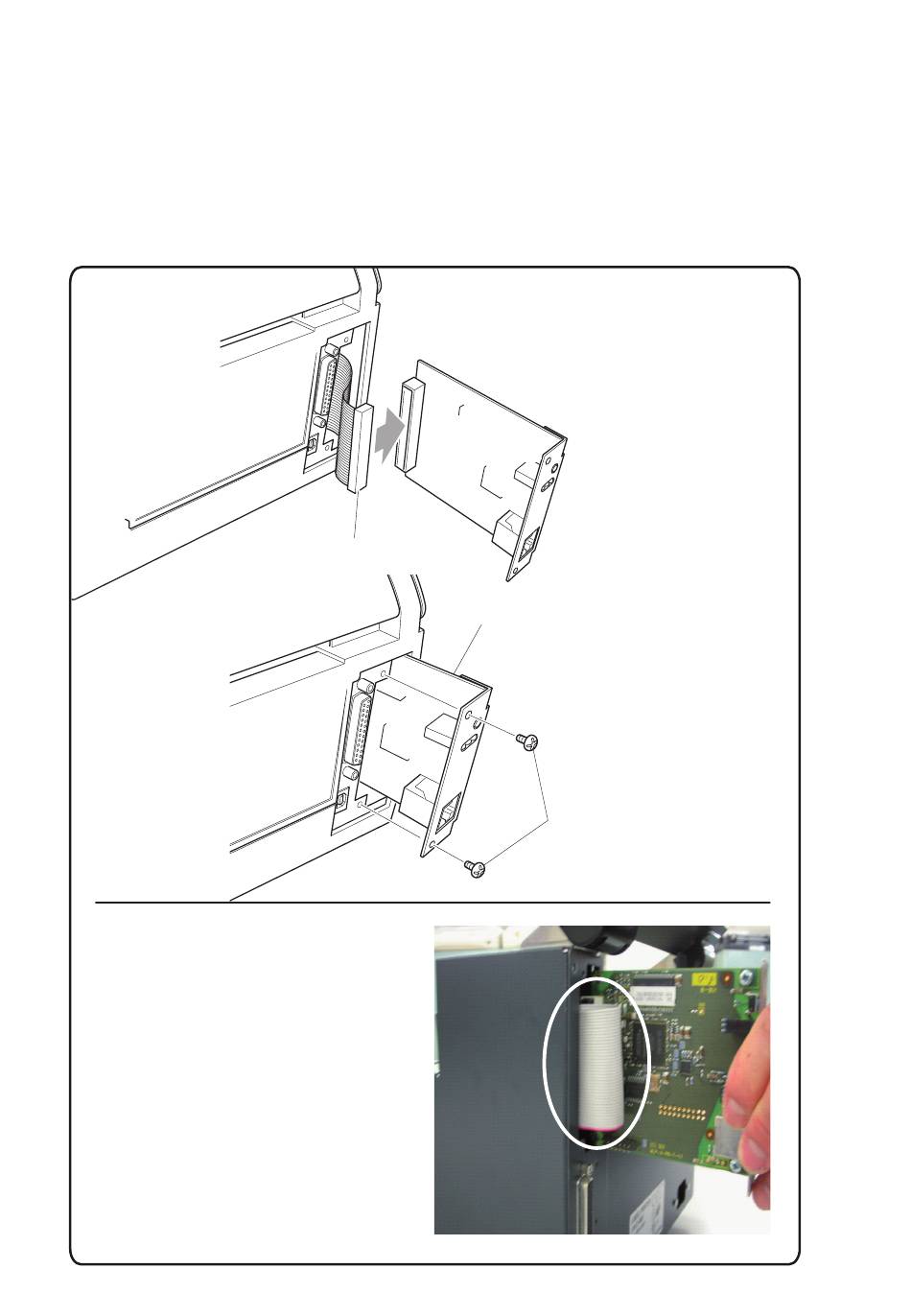

2. Remove the connecting cable from the interface board and reconnect the
cable to the connector of the new interface board.
3. Insert the interface board into the printer so that the connecting cable does
not catch on the printer. The new board is slightly larger than the original
board, so the interface cable will need to be tucked in carefully.
4. Use the two screws that you removed to re-fix the bracket in place.
7106 7206
Back of printer
7010
Attention:
Please insert the Ethernet
board by bending the
cable as shown in the
picture.
Interface cable
interface board
- 3 -
– 4 –
LAN interface board
Screws
