SUM252172 94050-24 rA
Dual Dial Hose Timer with Electronic Display
Minuterie numérique d'arrossage à deux boutons
Timer Digital de 2 cuadrantes para riego
Timer digitale per irrigazi one a 2 selettori
Digitale Bewässerungs-Zeitschaltuhr
mit zwei Drehschaltern
Οδηγόσ εγκατάστασησ και χρήσησ
Χρονό ετρο εύκα πτου σωλήνα διπλού
διακόπτη ε ηλεκτρονική ένδειξη
Μοντέλο 62040 και 91050
Model 62040, 27155, 94050 and 91050
PN 94050-24 Rev A
Orbit
®
Irrigation Products, Inc.
845 North Overland Rd.
North Salt Lake, Utah 84054
Environmental Conditions
Working Temperature: 32 to 122°F
Storage Temperature: -14 to 140°F
Conditions environnementales
Température propre au fonctionnement : 0 à 50°C (32 à 122°F)
Température d'entreposage : -10 à 60°C (-14 à 140°F)
Condiciones ambientales
Temperatura de trabajo: 0 a 50°C (32 a 122°F)
Temperatura de almacenamiento: -10 a 60°C (-14 a 140°F)
HOSE FAUCET
HOSE WASHER
BRASS
CONNECTOR
AUTOMATIC HOSE
FAUCET VALVE
Features
• One button sets time of day, another button sets watering
start time
• Two rotary dials for setting the watering interval and
watering duration.
• Battery operated (three AA), not included.
• Ten watering interval options (once, 2 hr, 4 hr, 8 hr, 12 hr, daily,
2nd day, 3rd day, 4th day, 7th day).
• Ten watering duration options (on, OFF, 2 min, 5 min,
10 min, 15 min, 30 min, 60 min, 90 min, 120 min).
• Manual watering without interrupting the watering interval.
• Weather resistant design.
• Dependable valve design.
• Low power consumtion soleniod.
12/23/05
2:52 PM
START
START
INTERVAL
INTERVAL
DURATION
DURATION
© 2005 Orbit
®
Irrigation Products, Inc.
All rights reserved. All trade names
are registered trademarks of respective
manufacturers listed.
COVER
TIMER
PN 62040-24 Αναθ. A
Irrigation Products, Inc.
Orbit® Irrigation Products, Inc.
845 North Overland Rd. North Salt Lake, Utah
84054 Η.Π.Α.
Με την επιφύλαξη παντόσ δικαιώ ατοσ.
Όλεσ οι ε πορικέσ επωνυ ίεσ
είναι σή ατα κατατεθέντα των αντίστοιχων
κατασκευαστών που παρατίθενται.
Περιβαλλοντικέσ συνθήκεσ
Θερ οκρασία εργασίασ: 0 έωσ 50 °C (32 έωσ
122 °F)
Θερ οκρασία φύλαξησ: -10 έωσ 60 °C (-14
έωσ 140 °F)
Conditions environnementales
Tempιrature propre au fonctionnement : 0 ΰ
50°C (32 ΰ 122°F) Tempιrature d entreposage :
-10 ΰ 60°C (-14 ΰ 140°F) Condiciones ambien-
tales
Temperatura de trabajo: 0 a 50°C (32 a 122°F)
Temperatura de almacenamiento: -10 a 60°C
(-14 a 140°F)
Page 1

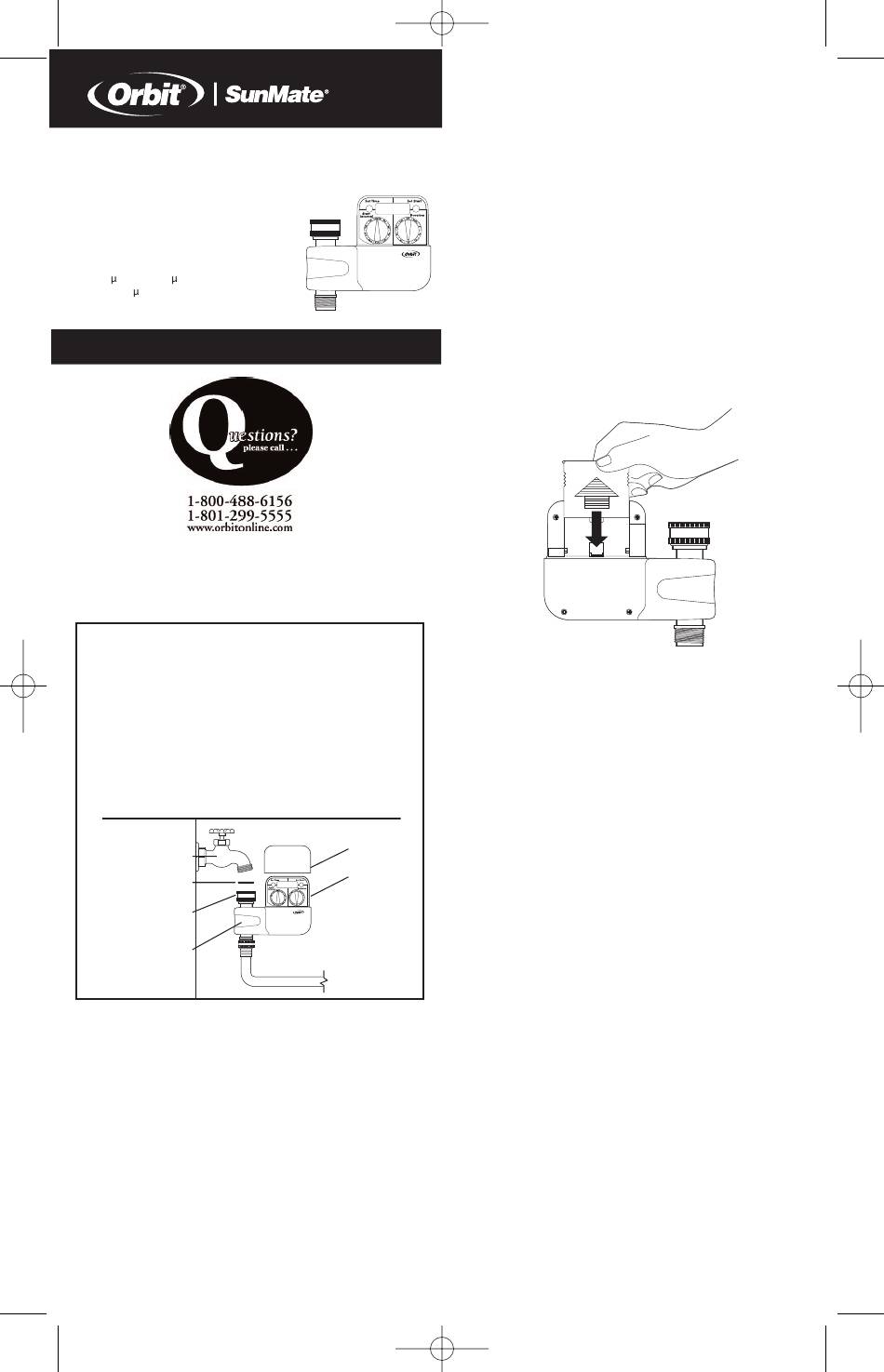

Battery installation
Note:
Orbit recommends the use of Duracell
AA alkaline batteries for optimum timer performance.
(see figure 1).
1. Remove the timer cover.
2. Pull the battery compartment out of the timer.
3. Install three AA alkaline batteries. Refer to the battery
compartment for the correct orientation of the batteries,
(see figure 1).
4. Place the battery compartment back in the timer.
• Three fresh AA alkaline batteries should last for an entire
watering season. When the battery voltage is below a safe
operating voltage the valve will not open. The batteries
should be replaced with new ones when this occurs.
5. Replace the timer cover to protect the timer from moisture
and debris.
Set the time of day and watering start time
• Press the Set Time button, holding it down for 2 seconds. The
digital readout will cycle through a.m. and p.m. time settings.
Release the Set Time Button just before the correct time of
day is reached. Tap the button to advance the time in 1
minute increments until correct time is reached.
• Press the Set Start button, holding it down for 2 seconds. The
digital readout will cycle through a.m. and p.m. time settings.
Release the Set Start button just before the desired watering
start time is reached. Tap the button to advance the time in 1
minute increments until desired start time is reached.
Note:
The timer valve will close when making entries using the Set
Time and Set Start buttons. Set Time and Set Start settings are
accepted by the timer 5 seconds after buttons are released,
except at the ON setting.
Set the watering start interval
© 2005 Orbit®
Turn the Start Interval dial to the desired watering interval.
(see figure 2).
Note:
All Start Interval settings begin timing at the Set Start time
shown on the digital readout.
The Start Interval dial has ten possible settings:
• Once – the valve will open once for the amount of time on
the Duration dial and then remains inactive until the Start
Interval dial is rotated to another setting.
• 2 hr – the water will come on every two hours.
• 4 hr – the water will come on every four hours.
• 8 hr – the water will come on every eight hours.
• 12 hr – the water will come on every twelve hours.
• Daily – the water will come on once every day.
• 2nd day – the water will come on every other day.
®
or Energizer
®
brand
Τοποθέτηση παταρίασ Ση είωση:
Η Orbit συνιστά τη χρήση αλκαλικών παταριών AA
Duracell® ή Energizer® για βέλτιστη απόδοση του
χρονο έτρου. (βλ. σχή α 1).
1. Αφαιρέστε το κάλυ
α του χρονο έτρου.
2. Τραβήξτε έξω από το χρονό ετρο το
δια έρισ α των παταριών.
3. Τοποθετήστε τρεισ αλκαλικέσ παταρίεσ AA.
Ανατρέξτε στο δια έρισ α των παταριών για
το σωστό προσανατολισ ό των παταριών
(βλ. σχή α 1).
Figure 1
Σχή α 1
4. Τοποθετήστε το δια έρισ α των παταριών
πάλι στο χρονό ετρο.
• Τρεισ καινούριεσ αλκαλικέσ παταρίεσ AA
πρέπει να διαρκούν για ια ολόκληρη σεζόν
ποτίσ ατοσ. Όταν η τάση τησ παταρίασ
είναι κάτω από ια ασφαλή τάση λειτουργίασ
η βαλβίδα δε θα ανοίξει. Όταν συ βεί αυτό, οι
παταρίεσ πρέπει να αντικατασταθούν
ε νέεσ.
5. Επανατοποθετήστε το κάλυ
χρονο έτρου για την προστασία του
χρονο έτρου από την υγρασία και τα
υπολεί
ατα.
Ρύθ ιση τησ ώρασ τησ η έρασ και τησ ώρασ
έναρξησ ποτίσ ατοσ
• Πιέστε το κου πί Set Time (Ρύθ ιση ώρασ),
κρατώντασ το πατη ένο για 2 δευτερόλεπτα.
Η ψηφιακή ένδειξη θα εταβεί κυκλικά στισ
ρυθ ίσεισ ώρασ π. . και . . Αφήστε το κου πί
Set Time ακριβώσ πριν επιτευχθεί η σωστή ώρα
τησ η έρασ. Κτυπήστε ελαφρά το κου πί για να
προχωρήσετε την ώρα σε βή ατα του 1 λεπτού,
έωσ ότου επιτευχθεί η σωστή ώρα.
• Πιέστε το κου πί Set Start (Ρύθ ιση έναρξησ),
κρατώντασ το πατη ένο για 2 δευτερόλεπτα.
Η ψηφιακή ένδειξη θα εταβεί κυκλικά στισ
ρυθ ίσεισ ώρασ π. . και . . Αφήστε το κου πί
Set Start ακριβώσ πριν επιτευχθεί η επιθυ ητή
ώρα έναρξησ ποτίσ ατοσ. Κτυπήστε ελαφρά το
κου πί για να προχωρήσετε την ώρα σε βή ατα
του 1 λεπτού, έωσ ότου επιτευχθεί η επιθυ ητή
ώρα έναρξησ. ΒΡΥΣΗ ΕΥΚΑΜΠΤΟΥ Σ ΛΗΝΑ.
ΜΠΡΟΥΤΖΙΝΟΣ ΣΥΝ ΕΣΜΟΣ ΡΟ ΕΛΑΣ ΕΥΚΑΜΠΤΟΥ
Σ ΛΗΝΑ. ΑΥΤΟΜΑΤΗ ΒΑΛΒΙ Α ΒΡΥΣΗΣ ΕΥΚΑΜΠΤΟΥ
Σ ΛΗΝΑ. ΚΑΛΥΜΜΑ
ΧΡΟΝΟΜΕΤΡΟ
α του
