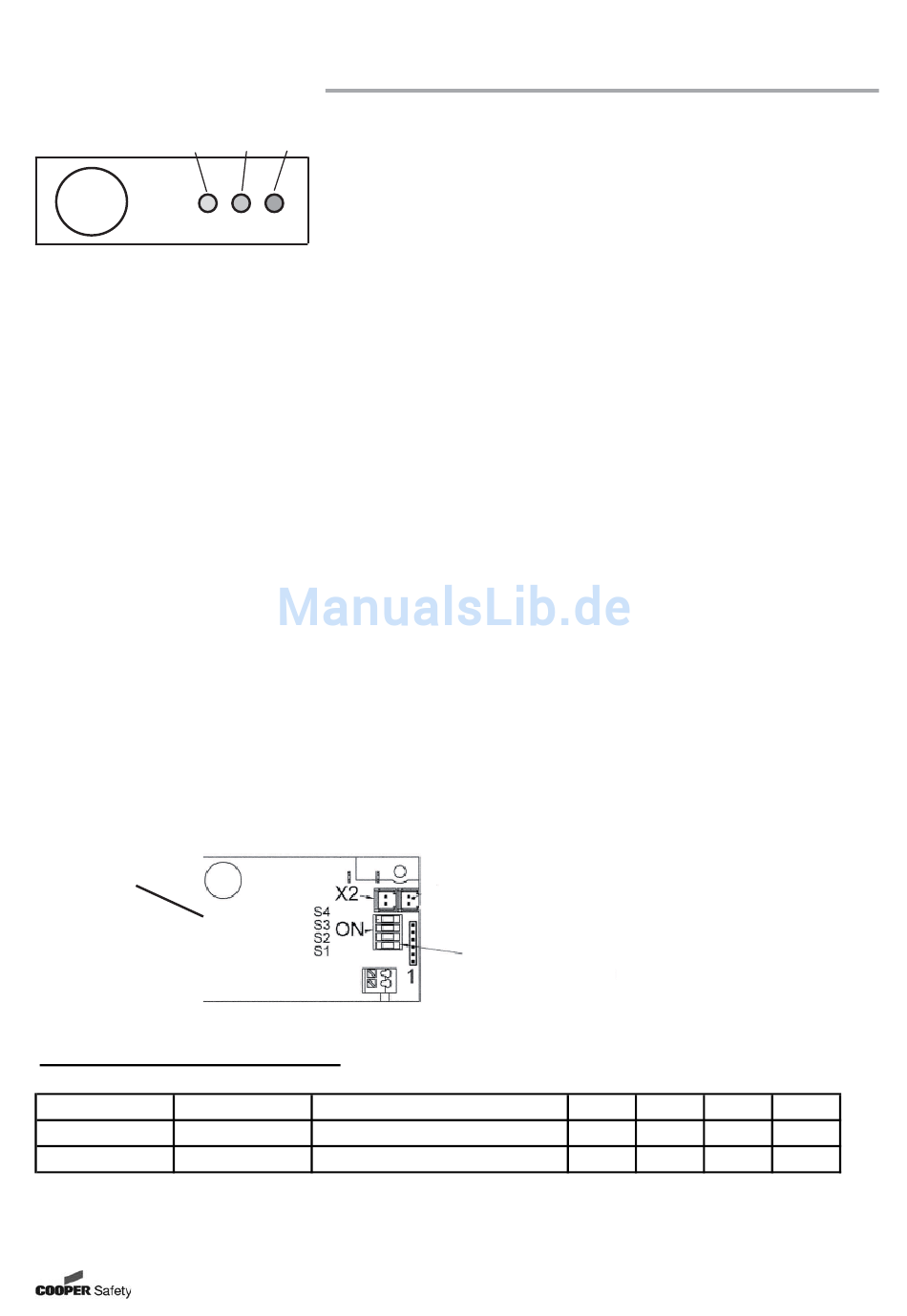

green yellow red
TEST
The following can be started and displayed with the test-button:
- function test ON
- duration test ON/OFF
- duration test delayed
- settings of the emergencylight operating time with subsequent identification of the luminaire short
address (when data bus is connected and the CG-Controller has issued short addresses).
The delayed duration test is displayed if the luminaire is not charged without interruption for 24h or if
an duration test is started within the 24h.
For further details see the operating manual of the CG-Controllers CGLine 400 or the CGLine PC-
Interface.
Autarkic operation
Without the CG-Controller CGLine or the CEAG CGLine PC-Interface the luminaire starts after the initial
installation/mains connection the function test weekly and a duration test every three months.
After mains returns the emergency operation will stay for approx. 1 minute (delay on mains return)!

6.3 Dim-Level

Setting the AC-lightness by using the test button
- Push the test-button for t < 1 sec.
- After the first flash of the LED the lightness can be changed by pushing the button again in 3
steps. Every push of the button raises the lightness for 1 step. If the hightest step is reached it
begins again with the lowest.

6.4 Operation mode

printed cir-
cuit board
Position of the switches S1-X:
duration of e.l. no. of LEDs
1h
3h**
**) preset
Operating Instructions
S
elf contained LED luminaire for ceiling mounting
1883...1884 LED CGLine
Type of luminaire
4 1883...1884 LED CGLine
4 1883...1884 LED CGLine
Switch to
ON „1"/OFF „0"
S1-1
0
1
CEAG Notlichtsysteme GmbH
S1-2 S1-3 S1-4
0 0 0
0 0 0
