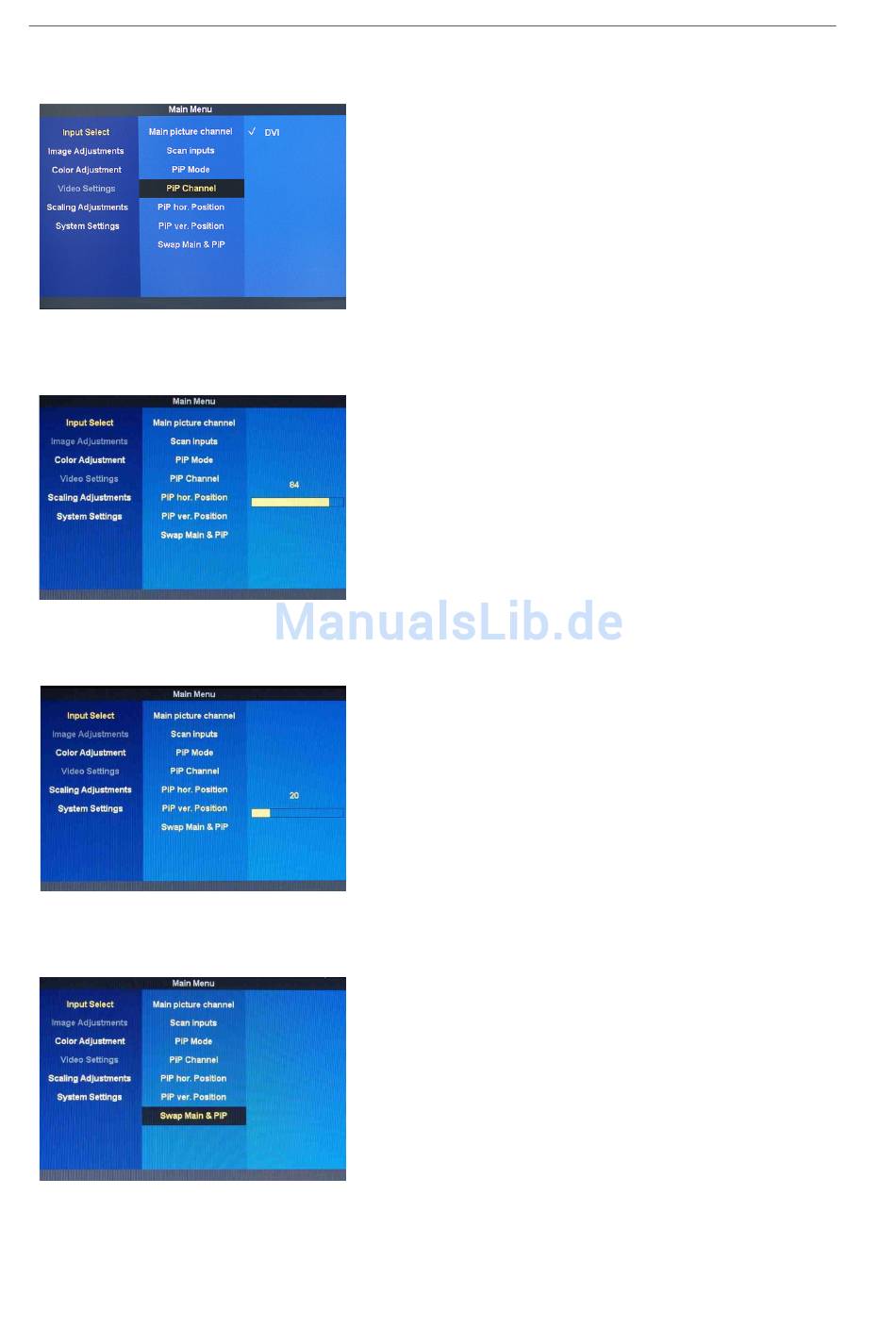

Main menu

PIP Channel

PIP hor. Position

PIP ver. Position

Swap Main & PIP
6 · RackConsole 17HR
You can choose any video source for the
Channel except the video source that is selected
for the main picture channel.
The horizontal position of the PIP can be set
from 0 (left margin) to 100 (right margin).
The vertical position of the PIP can be set from
0 (left margin) to 100 (right margin).
Selecting
Swap Main & PIP
nals for the main picture channel and the PIP
channel.
switches the input sig-
PIP
