6. Sample experiment
6.1 Measuring the absolute pressure in relation
to the volume (Boyle's law)
Apparatus required:
TM
1 3B NETlog interface
1 Absolute pressure sensor
•
Set-up the experiment according to Fig. 1.
•
Fit the plastic syringe with an approx. 2-cm
long hose.
•
Fill the syringe with 20 ml of ordinary air.
3B Scientific GmbH • Rudorffweg 8 • 21031 Hamburg • Germany •
U11300
U11320

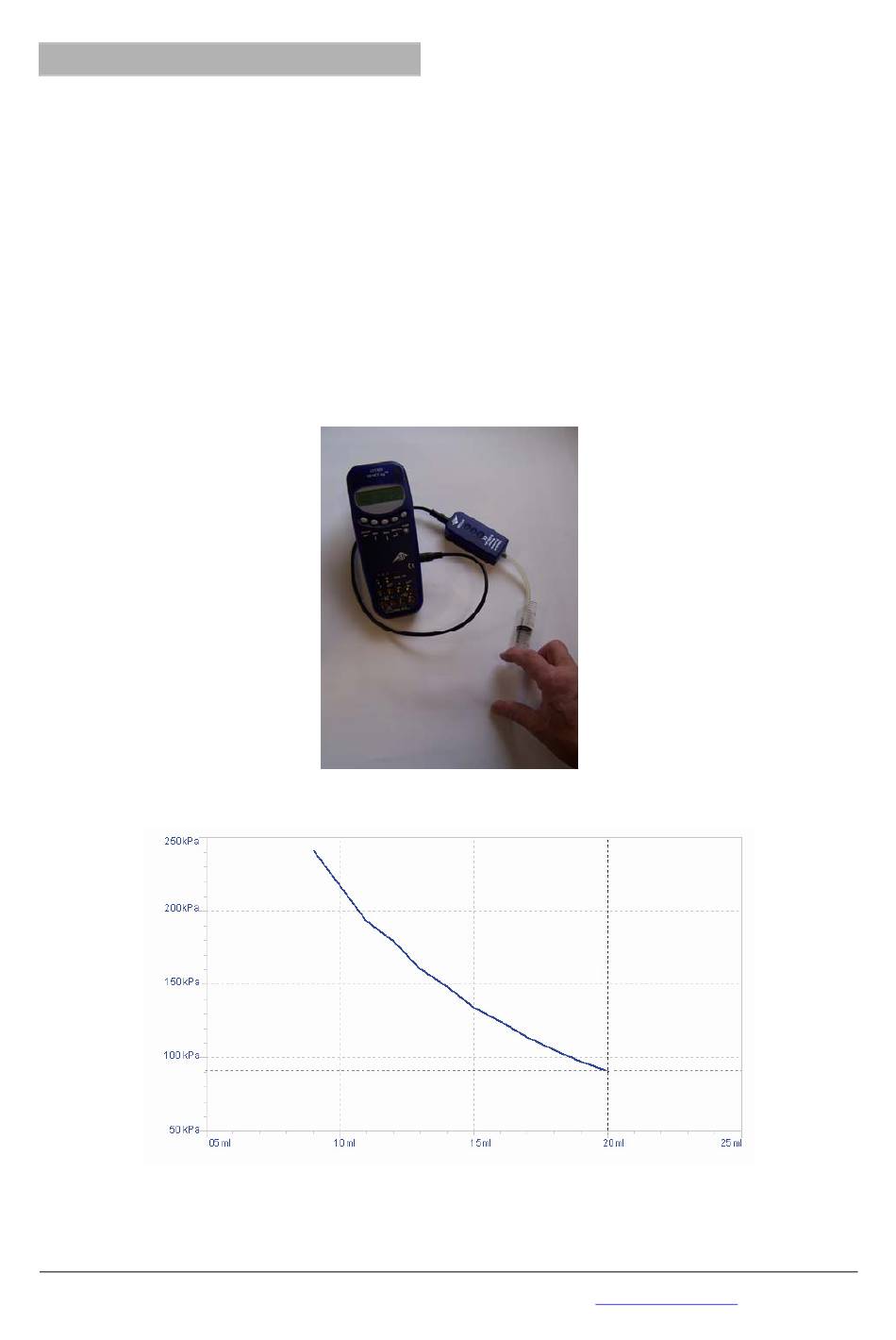

Fig. 1: Measuring the absolute pressure in relation to the volume
Fig. 2: Pressure against volume
Subject to technical amendments
© Copyright 2008 3B Scientific GmbH
•
Push the free end of the silicone tube onto the
nozzle of the pressure sensor.
•
CAUTION: as far as possible, do not alter the
volume in the syringe!
•
Connect the absolute pressure sensor to the
TM
3B NETlog interface and wait for the interface
to recognise the sensor.
•
The first reading appears on the interface dis-
play.
•
TM
In the 3B NETlab
enter the readings for the volume by hand in
steps of 1 ml at a time.
•
Plot the graph of the characteristic.
www.3bscientific.com
software's manual mode,
