4. Specifications

Type
Art. No.
System
Video standard
Sensor size
Imager
Active picture elements
Synchronization
Signal-to-noise ratio
Horizontal resolution
Sensitivity
(at 50% video signal)
Low Speed Shutter
Automatic gain control (AGC)
Digital Noise Reduction (DNR) no
White balance
Backlight compensation
Wide Dynamic Range (WDR)
IR cut filter
Video outputs
Lens type
Lens
Aspherical technology
Focal length
Horizontal angle of view
Iris control
MOD
(Minimum object distance)
Filter screw size
Illumination
Illumination range
Serial interfaces
External connections
Protection rating IP65
Supply voltage
Power consumption
Temperature range
(operation)
Housing material
Housing
Integrated wall mount
Hidden cable management
Sunshield
Window heater
Clear Shield
Colour (housing)
Dimensions
Parts supplied
Certificates
VKC-1374/IR
92555
Day & night
CCIR/PAL
1/3"
CCD, Sony Super HAD Interline Transfer
470,000, 795(H) x 596(V)
Internal/AC line lock
50dB (AGC OFF)
550 TVL
0.5Lux (colour), 0.3Lux (B&W).
Videor measurement result at F1.2
no
yes
Automatic
no
no
Switchable
CVBS
Varifocal
F1.2/F2.0~360/3.8~9.5mm
with galvanometer controlled iris
yes
3,8 mm - 9,5 mm
74,2° - 30°
DC
0,15 m
Not available
Infrared, 18x LED's 850nm. Due to an inte-
grated light sensor the LED illummination
will be switched ON/OFF, depending from
environmental illumination conditions.
approx. 20m (at a good light reflexion
and 40% video signal)
no
Video (BNC), 2 pin power input
12VDC, (+/-10%)
5W
0~+50°C
Aluminium
Outdoor
yes
yes
yes
no
no
Anthracite
See drawing
Camera, Manual, Wall and ceiling mount
bracket, Fixing screws
CE
Optional Accessories
Art. No. Type Description
77773 VT-PS12DCDT1 PSU 12VDC/1.0A, regulated, Desktop Version,
1.8m cables each with open ends
70495 VT-PS12DC-7
Plugable PSU with Continent & UK Mains plug-in
100-240VAC/12VDC-1.25A, regulated
70535 VT-PS12DC-8
Plug-in Power Supply Unit 100-240VAC 12VDC
(1.0Amp), regulated, with DC Plug

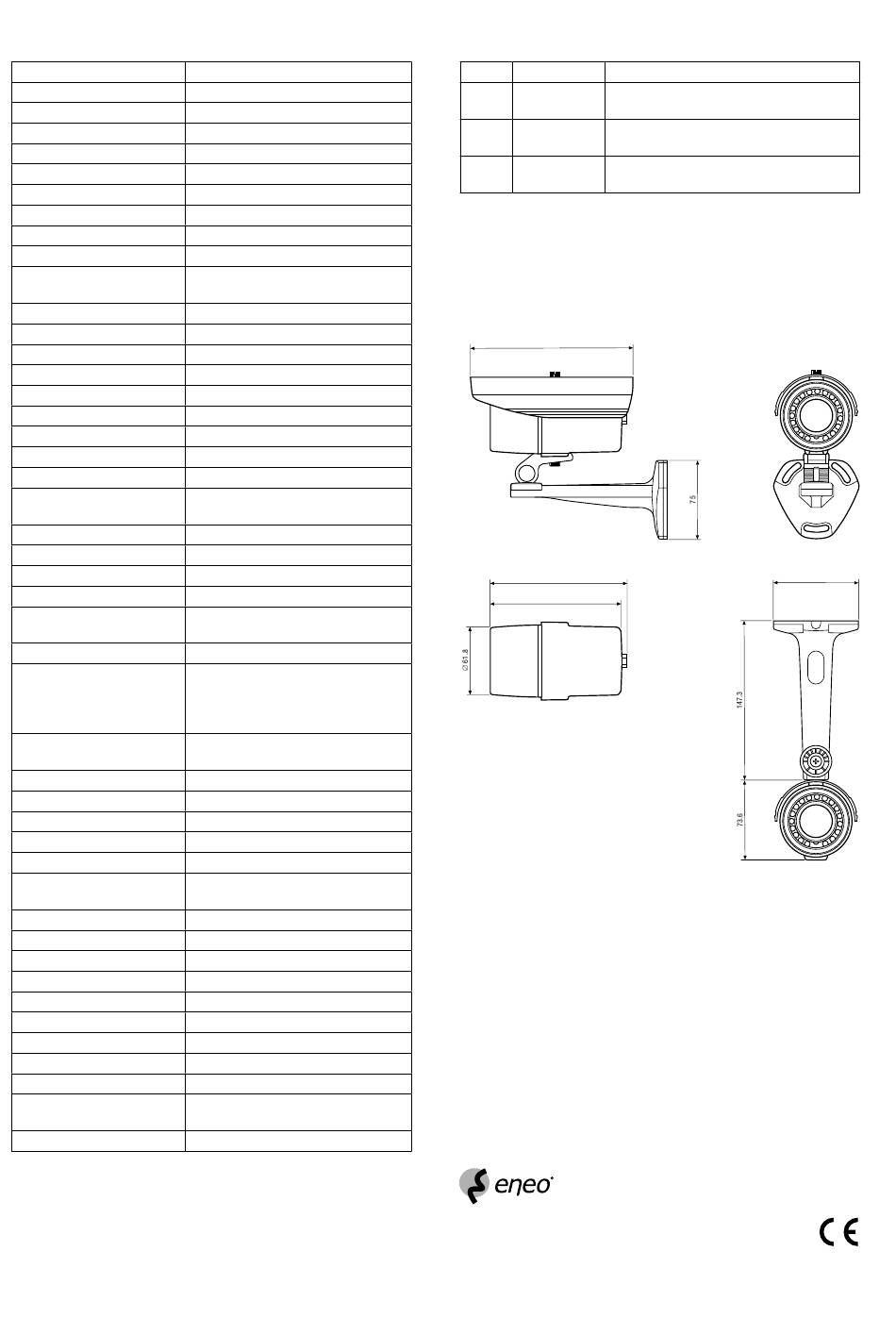

5. Dimensional Drawings

150
126.2
121.7
Dimensions: mm
