The ASB-10

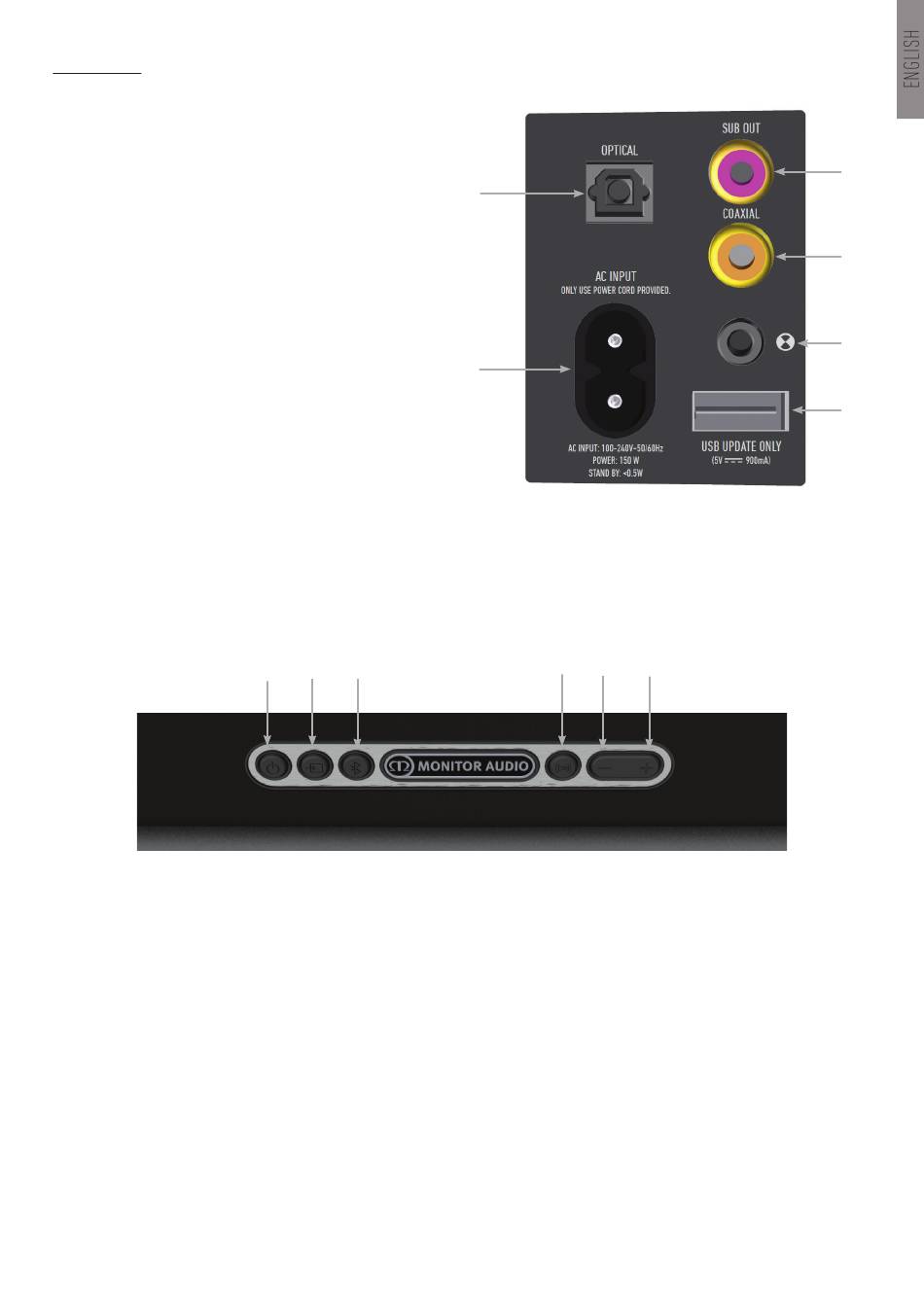

ASB-10 Connections

1. Digital Optical Input
Used to connect digital optical audio source to the ASB-10.
2. Mains Input
Used to connect the ASB-10 to the mains (refer to page 6).
3. Sub Out
Used to connect the ASB-10 to an additional sub woofer.
4. Digital Coaxial Input
Used to connect digital coaxial audio source to the ASB-10.
5. Auxiliary
Used to connect an analogue stereo audio source to the ASB-10 using
a 3.5mm stereo mini jack connector.
6. USB Input
Used for firmware updates (refer to page 7).

ASB-10 Buttons

1. Standby
Used to put the ASB-10 in and out of stand by mode. Holding it down for 12 seconds will initiate a USB firmware update.
2. Input Source Toggle
Used to toggle through the auxiliary and digital inputs.
3. Bluetooth Source
Used to select the Bluetooth input and pair devices to the ASB-10.
4. 3D Sound
Used to enable Dolby® Virtual Speaker 2.0, which changes the sound of the ASB-10 to create a 3 dimensional effect. The LED will flash 3 times to indicate it is
enabled and 5 times to indicate it is disabled. Holding it down for 3 seconds whilst in standby mode will enable the LED brightness control.
5. Volume Down
Used to reduce the volume of the ASB-10.
6. Volume Up
Used to increase the volume of the ASB-10.
