Before Installation - LUCCI AIRFUSION QUEST II Installationsanleitung

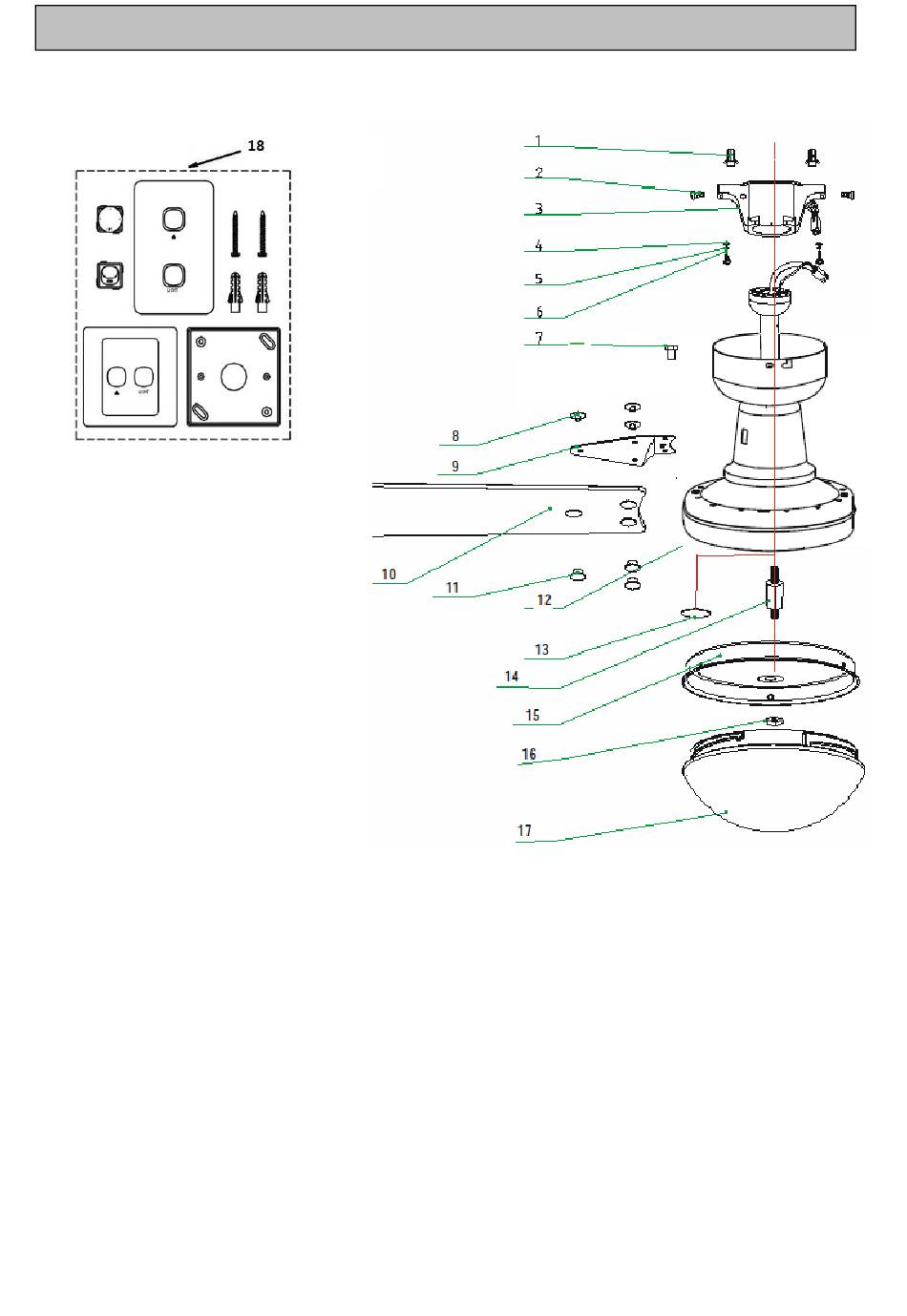

Unpack the fan and carefully identify the parts. Please refer to Fig 1.
Wall plugs (1) for Screw (6) x 2
●
Canopy screw (2) x 4
●
Hanger Bracket (3) x 1
●
Screw (6) for Hanger bracket x 2
●
Bladed screws (7)x 9
●
Blade holder screw set (8,11) x 13
●
Blade holder (9) x 4
●
Blade (10) x 4
●
Pre-assembled Fan Motor, down rod and canopy x 1
●
Decorative Cover (13) x 1
●
Light connector (14) x 1 (For models with light function only)
●
Light base (15) x 1 (For models with light function only)
●
Screw nut (16) x 1 (For models with light function only)
●
Glass shade (17) x 1 (For models with light function only)
●
Wall switch (18) x 1 set
●
NOTE： ： ： ： Some models do not include the light kit, please refer to technical information.

BEFORE INSTALLATION

4
Fig. 1
