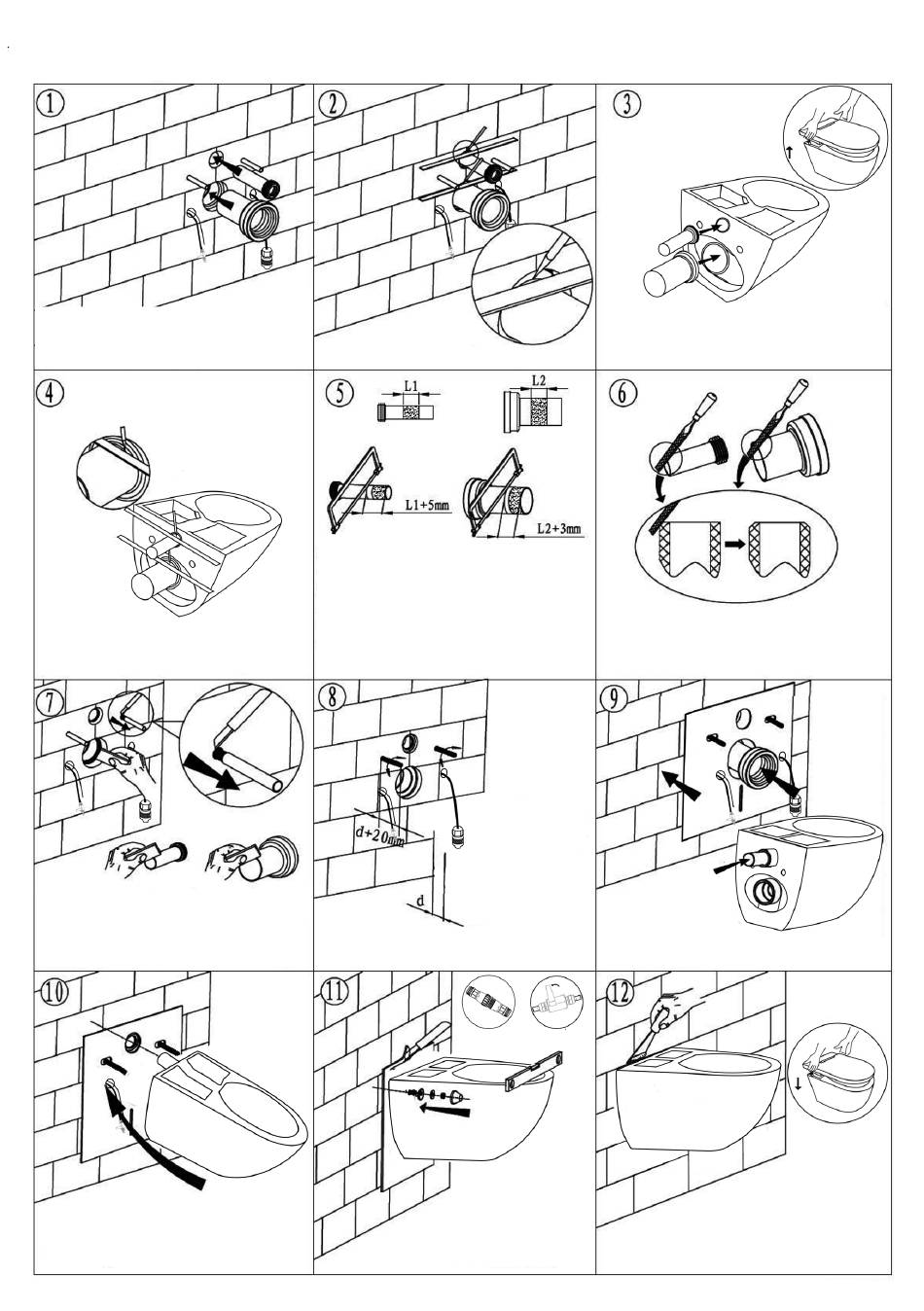

8. Mounting of ceramic bowl
Fully insert the straight tube into
cistern flushing outlet and connect-
ing pipe into discharging outlet.
Dawn the lines as above picture.
Cut the protection sleeve outside of
the wall with a knife.
Apply lubricant on joint surface of
straight tube and connecting pipe.
Mounting the ceramic bowl.
Dawn the lines as above picture.
As per drawing,
L1 is distance between the two lines
on straight tube.
L2 is distance between the two lines
on connecting pipe.
Cut the straight tube and connecting
pipe as per above drawing.
Adjust length of connecting bolt to be
d+20mm.
Make the power
cord connected
Screw the bowl and
remove the extra pad.
Apply lubricant on rubber washers
of straight tube and connecting pipe,
then insert into ceramic holes.
Polishing the cutting surface to get
chamfer angle as per drawing and
deburring.
Firstly insert
connecting pipe
into discharging outlet and straight
tube into ceramic hole.
Option 1
Make the water
pipe connected
Fill the gap with white
cement or glass cement.
Option 2
