Hoval TopTronic E Montageanleitung

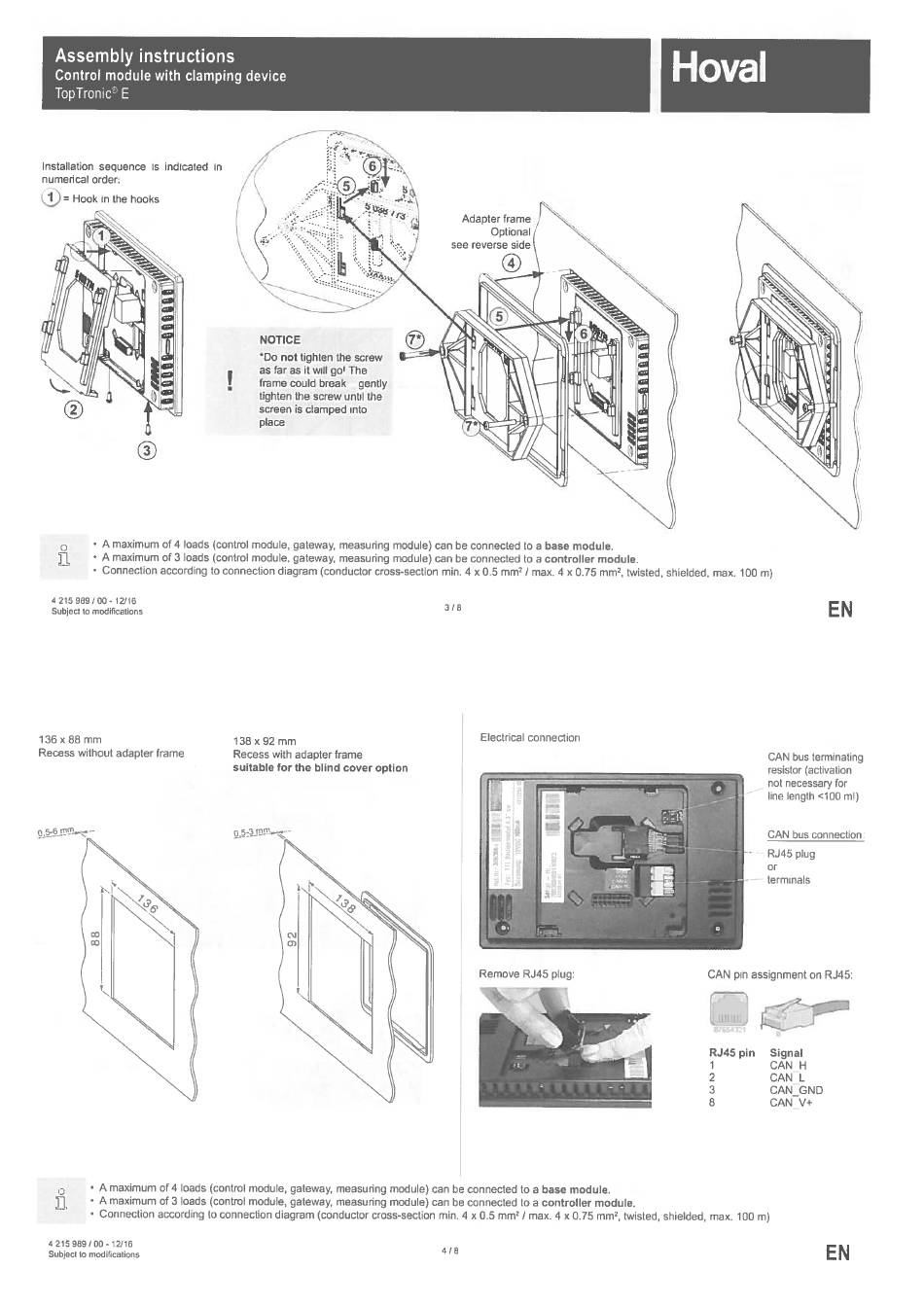

Assembly instructions
Control module with clamping device
TopTronic> E
Installation sequenoe is indicated In
numerical order.
G) = Hook In the hooks
Adapter frame
Optional
see reverse side
NOTICE
'Do not tighlen the screw
as far as it wrll gol The
frame could break
gently
tighten the screw untrl the
screen is clamped mm
place
O
- A maximum of 4 Ioads (control modulo, galeway, measuring module) can be connecled to a base module.
n
- A maximum of 3 Ioads (control module. galeway, measuring module) can be connected to a controller module.
- Connection according to connection diagram (conductor cross-section min. 4 x 0.5 mm? I max. 4 x 0.75 mm2. twisled. shielded. max. 100 m)
4 215 989/00 - 12/16
Subjecl lo modifications
3 l 8
E N
136 x 88 mm
13B x 92 mm
Electrical connection
Recess wilhout adapler frame
Recess with adapter frame
CAN bus terminaung
suitable for the blind cover option
resistor (aclivalion
not necessary for
Iine Ienglh <10O m!)
CAN bus conneclion
' '
RJ45 plug
or
lermmals
Remove RJ45 plug:
CAN pIn assignment on RJ45:
'
4a
k llvl ‚.
1.»
-_7__ „
RJ45 pin Signal
1 CAN H
2 CAN L
3
CAN_GND
8 CAN V+
o
- A maximum of 4 Ioads (conlrol module. galeway, measuring module) can be connected to a base module.
H
- A maximum of 3 Ioads (conlrol module, galeway, measuring module) can be connected to a Controller module.
- Connection according lo connection diagram (conductor cross-section min. 4 x 0.5 mm' I max. 4 x 0.75 mm', twisted, shielded,
max. 100 m)
4 215 989/00 - 12/16
Subjecl lo modifications
4 l 8
E N
