Electrical connection

NOTE
The electrical installation and wiring must be
carried out under the supervision of an author-
ised electrician.
General
F2016/F2026/F2030/F2300 is equipped with a connec-
tion block for a heating cable. The connection is fused
with 250 mA at the factory.
F2040 is connected to the communication card (AA23-
X1:4-6). Communication card (AA23) is equipped with
a fuse for 250 mA.
If another cable length than 3 m is used then fuse (F3)
must be replaced with the one supplied.

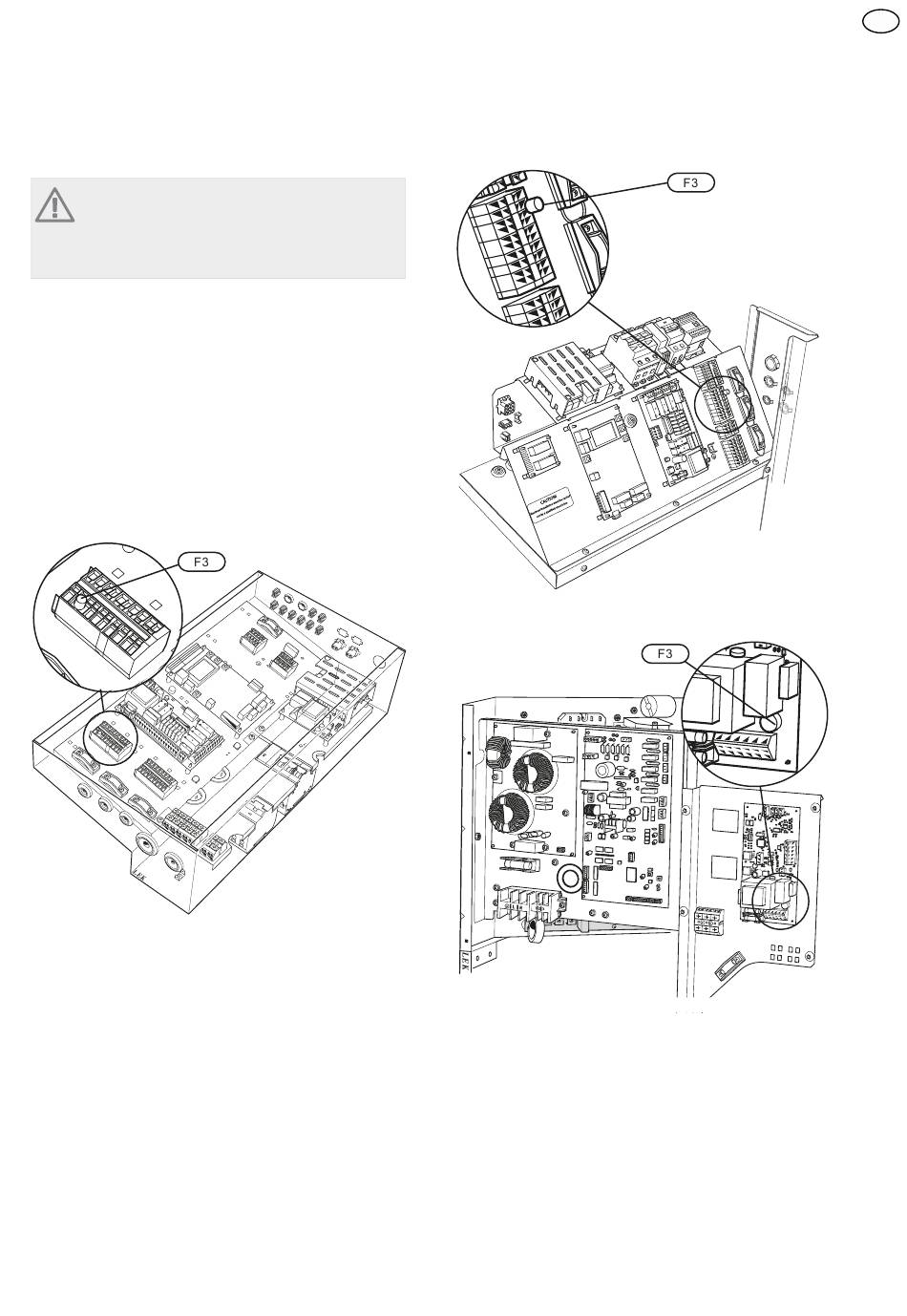

Fuse location F2016/2026
Fuse location F2030
Fuse location F2040
