Description
The big wheel is designed for use together with
a yagi system, in order to pick up quickly a sig-
nal from any direction without the need, to turn
the yagi array around to find a signal from
somewhere.
polarized omnidirectional
It's a horizontal
antenna
, when stacking 2 antennas together,
you get a antenna with about 5dBD gain.
The stacking distance for the 2m version is
about 1300mm (51.18 inches), as stacking har-
ness our phasing line #18040 can be used (cut
both wire lengths to the same length!). Take
care to mount both antennas in same orienta-
tion!
The stacking distance for the 70cm version is
about 430mm (16.92 inches).
Use our phasing line #18042 for stacking.
Frequency
Gain
SWR
Max. Power
Impedance
Wheel dia. (ft.)
Wheel dia. (m)
Max. Mast.
Weight
Stacking disatnce
Used phasing line
for stacking
Connector
Material
Order no.
WiMo Antennen und Elektronik GmbH
Am Gäxwald 14, D-76863 Herxheim Tel. (07276) 96680 FAX: 6978
http://www.wimo.com
Big Wheel
horizontal polarized omnidirectional antennas
Big Wheel 2m Big Wheel 70cm
144-146 430-440
ca. 3 ca.3
1,2 ... 1,5 1,2 ... 1,5
500 500
50 50
3.7 1
ca. 1,2 ca. 0,34
65 50
0.7 0.3
1300 430
18046 18048
N jack N jack
Aluminium, screws stainless
18007 18008
Assembly
The antennas come preassembled. The 70cm
version is complete assembled, the 2m version
must be assembled by customer.

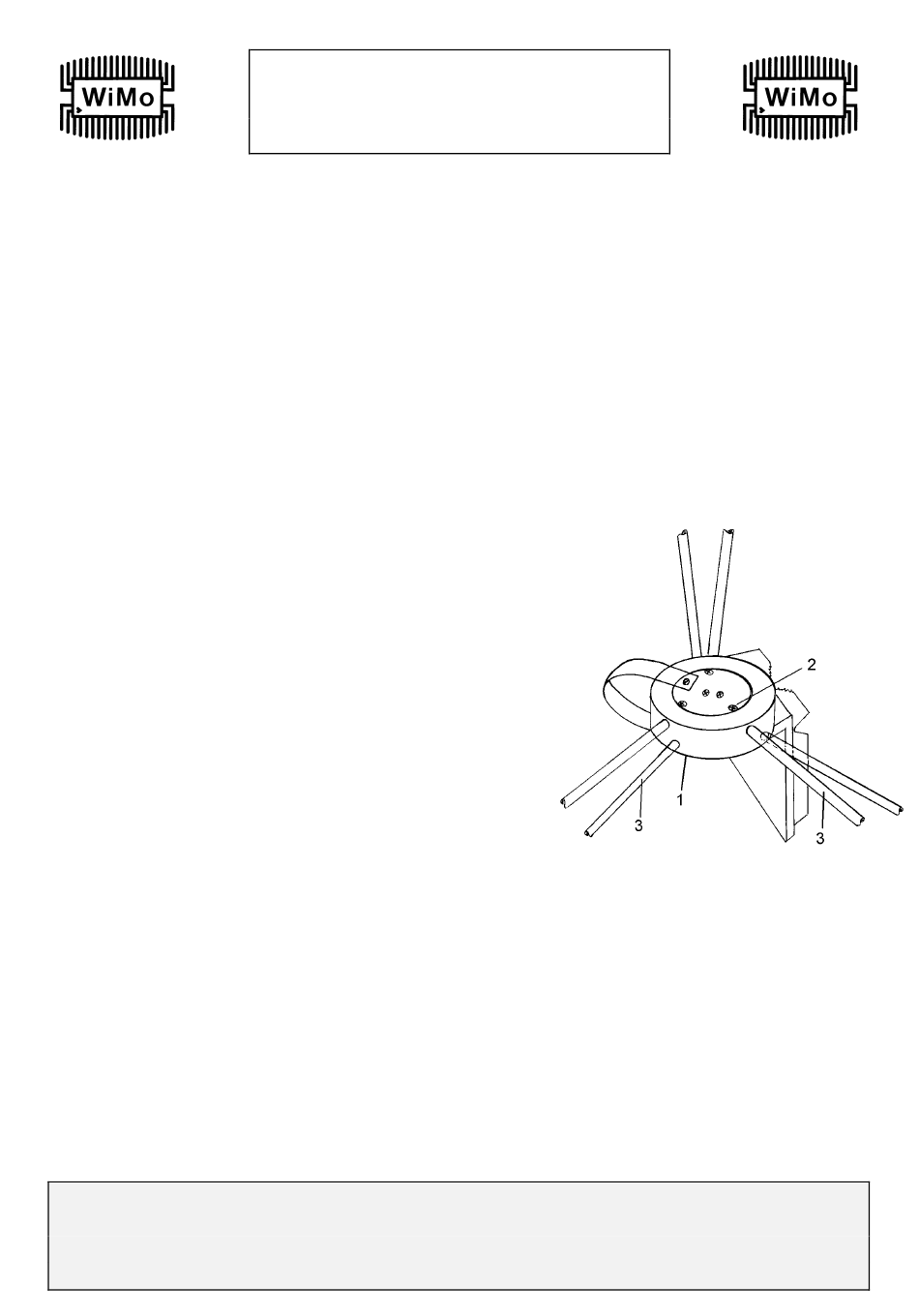

Loosen the screws #1 and #2, push element #3
inside the black PVC-body and fix the screws
again. See picture below. Take care:
• the screws have differnet lengths: screw #1
is a bit longer than screw #2.
• Do not loosen all screws at the same time,
the preassembled main body of the antenna
could fall apart.
Repeat these steps 3 times. There's no tuning
required.
MHz
dBD
Watt
Ohm
ft.
m
mm
kg
mm
