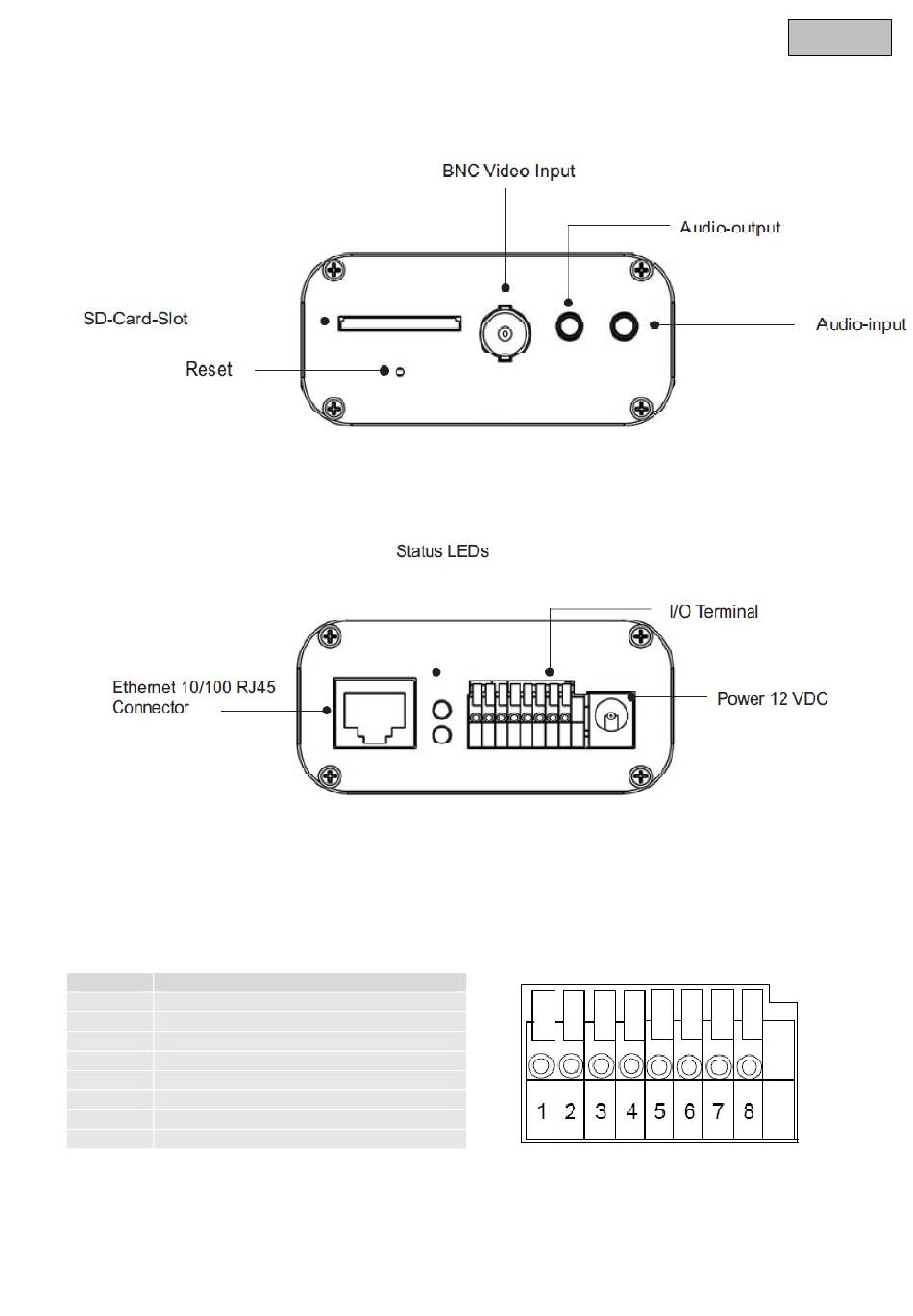

3. Video server description

3.1 Front view

3.2 Rear view

3.3 Alarm inputs and digital outputs

PIN Descritption
1 +12V Output
2 Digital output
3 Digital input
4 Ground
5 24V AC input
6 24V AC input
7 RS-485 +
8 RS-485 -
67
English
Power supply
Microphone switch
internal/external
