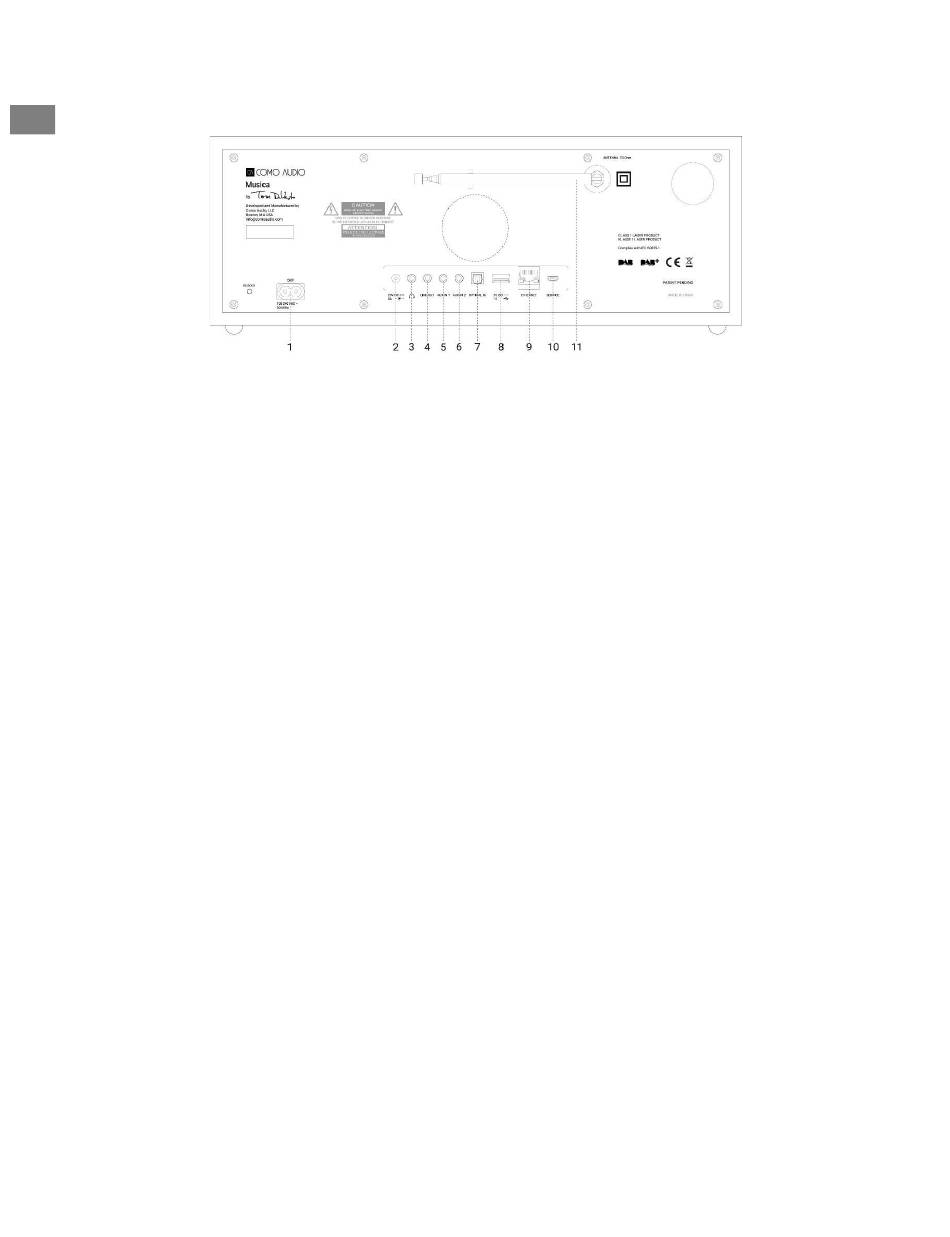

1. Power inlet: Insert the included power cord. The internal switching power supply
will automatically detect the correct voltage.
2. DC: For use with an external 20VDC/3A adapter (not included). Never use an
adapter and the power cord simultaneously.
3. Headphones: Connect a set of stereo headphones. The primary speakers will be
muted.
4. Line out: Fixed level output to connect Musica's audio to a home receiver or other
device with an analog audio input.
5. Auxiliary 1 (Hi-Res): Connect the analog audio out from another device.
6. Auxiliary 2 (Hi-Res): Connect the analog audio out from another device.
7. Optical in (Hi-Res): Connect the audio from your television's optical output using a
Toslink cable (not included) to hear TV sound. You must access your television's on-
screen settings menu and turn ON the PCM output and turn your TV speakers Off.
Your TV may require additional audio settings to be changed. When listening to
audio from your TV, you may prefer to change Musica's EQ from "Flat" to "TV
Sound". Alternatively, you can connect a CD player if it has an optical output, or use
an Auxiliary input.
8. USB: Insert a USB flash drive to playback music files, then rotate the source knob
and push in briefly to select 'My Music'. This jack will also power Google's
Chromecast for Audio and Amazon's Dot. This jack can also trickle charge many
smartphones. Do not exceed the jack's 5V/1A capacity. To play audio from an MP3
player, use Bluetooth or an audio cable connected to one of the the Auxiliary inputs.
9. Ethernet (RJ45): If you prefer not to connect to WiFi, connect an Ethernet cable (not
included) and complete the steps in the Setup Wizard. When the list of WiFi
networks is presented, scroll down and select "Wired". Once connected, the
Ethernet icon will show in the bottom right corner of the display.
10. Service: For use by authorized service representatives only. Do not connect anything
into this input.
11. Antenna: Expand and adjust for best FM or DAB reception. This antenna has no
effect on WiFi reception.
