Little Tikes 172854E3 Aufbauanleitung

Adult assembly required / Le montage doit être effectué par un adulte /
Debe ser armado por un adulto
Parts List / Liste des Pieces / Lista de Partes
A. Back
Wall
172854E3 Mur
arrière
Pared
trasera
XIM172854E3-1 - 11/13
www.littletikes.com
www.littletikes.co.uk
www.littletikes.fr
www.littletikes.es
www.littletikes.nl
www.littletikes.pl
ENGLISH
WOODSIDE COTTAGE plAyhOuSE™
Ages: 2 years & up
Please save sales receipt for proof of purchase.
WARNING:
Mur avant / Pared delantera
ADulT ASSEMBly REQuIRED.
• Keep these instructions for future reference.
• Prior to assembly, this package contains small parts: hardware which is
a choking hazard and may contain sharp edges and sharp points. Keep
away from children until assembled.
• Protect your eyes. Always wear safety glasses when assembling. Support de porte avant / Soporte de la puerta delantera
• This product is intended for outdoor domestic family use only.
• This product does not require stain or varnish. If you choose to add
stain or varnish, be sure to select materials that comply with the
applicable safety requirements for lead, heavy metals, and phthalates
in children's products.
CONSuMER SERVICE
G. Front Gable / Pignon avant / Frontón delantero
TOll-FREE NuMBER:
United States:
www.littletikes.com
1-800-321-0183 Monday - Friday
The Little Tikes Company
2180 Barlow Road
Hudson, OH 44236
E-mail: littletikes.cares@littletikescare.com h. Back Gable / Pignon arrière / Frontón trasero
United Kingdom:
www.littletikes.co.uk
Little Tikes
MGA Entertainment (UK) Ltd
50 Presley Way
Crownhill
Milton Keynes MK8 OES
Bucks, UK
E-mail: Info.LittleTikes@mgae.com
Printed in Poland. D.R. ©2013 The Little Tikes Company
O. Right Side Fence
© The Little Tikes Company, an MGA Entertainment company. LITTLE TIKES® is a trademark of Little
Tikes in the U.S. and other countries. All logos, names, characters, likenesses, images, slogans, and
packaging appearance are the property of Little Tikes. Please keep this address and packaging for MINIMUM SIZE allowed is .2" high
Updated 12.2.11 per Paul Madan (new spacing)
reference since it contains important information. Contents, including specifications and colors, may
vary from photos depicted on package. Instructions included. Please remove all packaging including
tags, ties & tacking stitches before giving this product to a child.
lIMITED WARRANTy
The Little Tikes Company makes fun, high quality toys. We warrant to the original purchaser that
this product is free of defects in materials or workmanship for one year * from the date of purchase
(dated sales receipt is required for proof of purchase). At the sole election of The Little Tikes Company,
the only remedies available under this warranty will be either replacement of the defective part of
the product or refund the purchase price of the product. This warranty is valid only if the product has
been assembled and maintained per the instructions. This warranty does not cover abuse, accident,
cosmetic issues such as fading or scratches from normal wear, or any other cause not arising from
defects in material and workmanship. *The warranty period is three (3) months for daycare or
commercial purchasers.
U.S.A and Canada: For warranty service or replacement part information, please visit our website
at www.littletikes.com, call 1-800-321-0183 or write to: Consumer Service, The Little Tikes Company,
2180 Barlow Road, Hudson OH 44236, U.S.A. Some replacement parts may be available for purchase
after warranty expires—contact us for details.
Outside U.S.A and Canada: Contact place of purchase for warranty service. This warranty gives you
specific legal rights, and you may also have other rights, which vary from country/state to country/
state. Some countries/states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you.
Please keep this manual as it contains important information.
B. Roof with peak / Toit avec faîte / Techo con pico
E. Side Walls (2)
D. Front Wall
Murs latéraux (2) / Paredes laterales (2)
F. Front Door Support
J. Side Gable / Pignon latéral / Frontón lateral
Z. Window
Fenêtre
Ventana
K. Door Arch /Arc de porte/ Arco de la puerta
M. Door / Porte / Puerta
p. left Side Fence
Clôture du côté droit Clôture du côté gauche
S. Faucet
Cerca lateral derecha Cerca lateral izquierda
Robinet/
Grifo
u. Knob
Bouton/
Perilla
R. Countertop
Plan de travail
Encimera
Visit our website at
www.littletikes.com
to register your product online and
to enter our sweepstakes.
(No purchase necessary)
Tools required (not included):
Outils Requis (ne sont pas inclus):
Herramientas Requeridas (no se incluye):
Two (2) people are recommended for this assembly.
Nous conseillons que deux (2) personnes effectuent cet assemblage.
Se recomiendan dos (2) personas para el montaje.

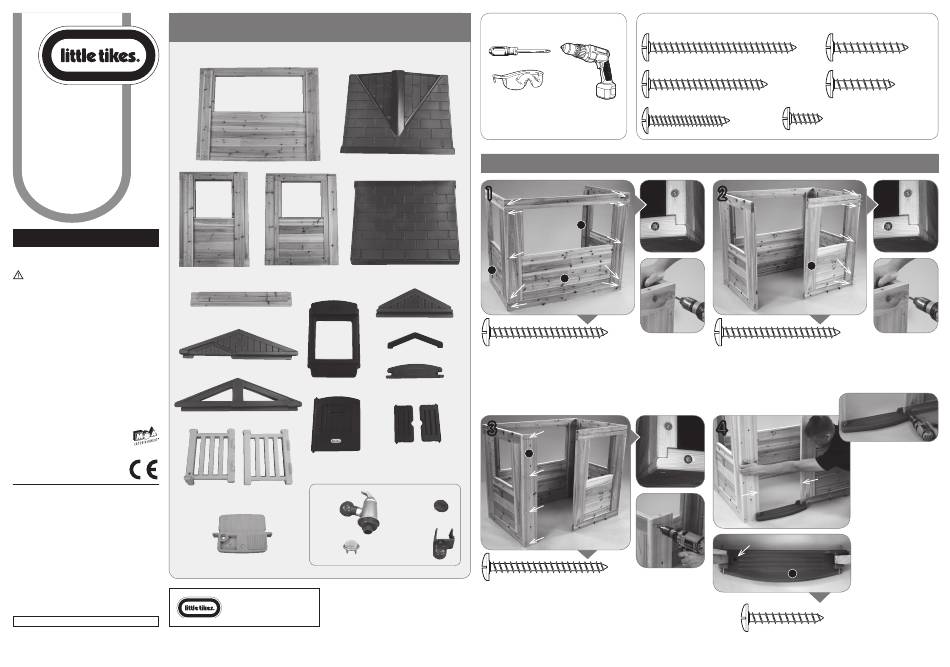

Woodside Assembly / Assemblage des côtés en bois / Montaje de la casita
1
1
2
3
C. Roof without peak
E
Toit sans faîte / Techo sin pico
4
5
BB x10 - 2" (5.08 cm)
Attach side walls (E) to back wall (A). Secure each wall using screws BB (x5 each side) at
locations shown.
Montez les murs latéraux (E) sur le mur arrière (A). Fixez chaque mur avec des vis BB (5 de chaque côté) aux
endroits indiqués.
l. Door Threshold Acople las paredes laterales (E) a la pared trasera (A). Fije cada pared con tornillos BB (5 a cada lado) en los
lugares indicados.
Seuil de porte / Door Threshold
3
1
N. Shutters (2)
F
Volets (2) / Postigos (2)
2
T. Faucet Fastener
Fixation du robinet/ 3
Tornillo del grifo
4
W. Door hinge
Charnière de porte
Bisagra de la puerta
BB x4 - 2" (5.08 cm)
Attach front door support (F) to side wall (E). Secure wall using screws BB x4 at 4 locations
shown.
Montez le support de porte avant (F) sur le mur latéral (E). Fixez le mur avec 4 vis BB aux 4 endroits indiqués.
Acople el soporte de la puerta delantera (F) a la pared lateral (E). Fije la pared con 4 tornillos BB en los 4 lugares
indicados.
Hardware Pack / Liste de visserie / Piezas para montaje
2 / " Screw (6.35 cm)
1
2
(Strongly
Recommended) 2" Screw (5.08 cm)
(Vivement
recommandé)
(Altamente
recomendable)
1 / " Screw (3.81 cm)
1
2
CC x8
2
1
2
E
3
4
A
5
BB x5 - 2" (5.08 cm)
Attach front wall (D) to side wall (E). Secure wall using screws BB x5 at locations shown.
Montez le mur avant (D) sur le mur latéral (E). Fixez le mur avec 5 vis BB aux endroits indiqués.
Acople la pared delantera (D) a la pared lateral (E). Fíjela con 5 tornillos BB en los lugares indicados.
4
1
3
1 / " Screw (3.17 cm)
1
4
AA x2 DD x24
1" Screw (2.54 cm)
BB x38 EE x2
/ " Screw (1.27 cm)
1
2
FF x3
1
3
4
5
D
7
place door threshold (l) between
front door support (F) and front
wall (D). Be sure round arch
of threshold is facing out and
opening for door is on the left
side (as shown). push walls
together while securing with
screws DD x4 at 4 locations
shown.
Placez le seuil de la porte (L) entre le
support de porte avant (F) et le mur
avant (D). Assurez-vous que l'arc cintré
2 du seuil est orienté vers l'extérieur et
Door opening
que la porte s'ouvre sur le côté gauche
Ouverture de la porte
(comme indiqué). Emboîtez les murs
Abertura de la puerta
tout en les fixant avec 4 vis DD à chacun
des 4 endroits indiqués.
l
4
Coloque el umbral de la puerta (L) entre
el soporte de la puerta delantera (F) y la
pared delantera (D). Asegúrese que el
lado redondeado del umbral mire hacia
DD x4 - 1 1 / " (3.17 cm)
4
afuera y que la abertura de la puerta
quede al lado izquierdo (tal y como se
muestra). Empuje las paredes para que
queden unidas mientras las fija con 4
tornillos DD en los 4 lugares indicados.
