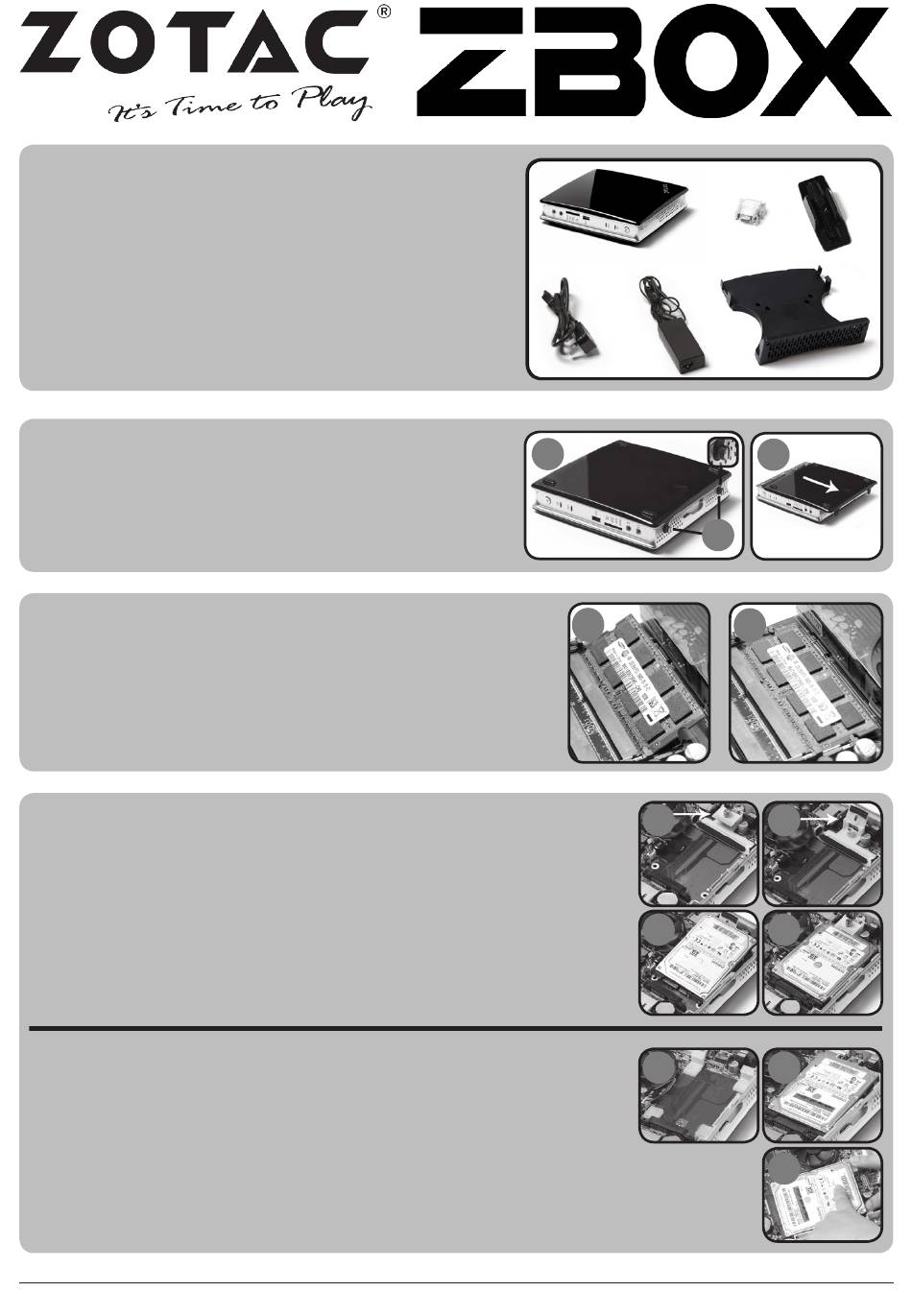

Package contents

• 1 x ZOTAC ZBOX
• 1 x Stand
• 1 x VESA mount
• 4 x mount screws
• 1 x AC Adapter
• 1 x Power Cord
• 1 x Warranty Card
• 1 x User Manual
• 1 x Driver CD
• 1 x DVI-to-VGA adapter (optional)
Customizing your ZOTAC ZBOX
1. Lay the ZOTAC ZBOX on a flat surface with the rubber
feet facing upwards.
2. Locate the two thumb screws and remove.
3. Slide the cover off the ZOTAC ZBOX in the direction of
the arrow.
Installing memory modules
1. Locate the SO-DIMM memory slots and insert a SO-
DIMM memory module into the slot at a 45 degree
angle.
(Note: If the ZOTAC ZBOX has two SO-DIMM slots insert a module
into the lower slot first)
2. Gently press down on the memory module until it locks
into place by the arms of the memory slot.

Installing a hard disk

Type 1 HDD bracket
1. Locate the hard disk bracket and remove the thumb
screw.
2. Lift up on the plastic flap.
3. Insert a 2.5-inch SATA hard disk into the bracket at a 45
degree angle and gently slide into the connector.
4. Lower the plastic flap and reinstall thumb screw.
Type 2 HDD bracket
1. Locate the hard disk bracket
2. Insert a 2.5-inch SATA hard disk into the bracket at a
45-degree angle
3. Use two fingers to gently push the plastic tabs away
from the hard disk while gently pressing down on the
hard drive to secure the hard disk into the bracket.
4. Ensure the hard disk snaps into place with the plastic
clips.
