ProBoat React PRB08024 Anleitung

17-Inch Brushed Self-Righting Deep-V boat
PRB08024
Owners Manual
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby,
LLC. For up-to-date product literature, visit horizonhobby.com and click on the support tab for this product.
MEANING OF SPECIAL LANGUAGE
The following terms are used throughout the product literature to indicate various levels of potential harm when
operating this product:
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND a little or
no possibility of injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a
possibility of serious injury.
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage,
and serious injury OR create a high probability of superficial injury.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before
operating. Failure to operate the product correctly can result in damage to the product, personal property and
cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic
mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage
to the product or other property. This product is not intended for use by children without direct adult supervision. Do
not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon
Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow
all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and
avoid damage or serious injury.
Age Recommendation: Not for children under 14 years. This is not a toy.
Safety Precautions and Warnings
As the user of this product, you are solely responsible for operating in a manner that does not endanger yourself and
others or result in damage to the product or the property of others.
• When handling and/or transporting your boat, always pick up the boat from the front, keeping all moving parts
pointed away from you.
• Always keep a safe distance in all directions around your model to avoid collisions or injury. This model is controlled
by a radio signal subject to interference from many sources outside your control. Interference can cause momentary
loss of control.
• Always operate your model in open spaces away from full-size vehicles, traffic and people.
• Always carefully follow the directions and warnings for this and any optional support equipment (chargers,
rechargeable battery packs, etc.).
• Always keep all chemicals, small parts and anything electrical out of the reach of children.
• Always avoid water exposure to all equipment not specifically designed and protected for this purpose. Moisture
causes damage to unprotected electronics.
• Never place any portion of the model in your mouth as it could cause serious injury or even death.
• Never operate your model with low transmitter batteries.
Charging Warnings
The Battery Charger included with your product is designed to safely charge the Li-Ion battery.
CAUTION : All instructions and warnings must be followed exactly. Incorrectly charging Li-Ion batteries can
result in a fire, personal injury, and/or property damage.
• Never leave charging batteries unattended during use.
• Never charge batteries overnight.
• By handling, charging or using the Li-Ion battery, you assume all risks associated with lithium batteries.
• If at any time the battery begins to balloon or swell, discontinue use immediately. If charging or discharging,
discontinue and disconnect.
• Continuing to use, charge or discharge a battery that is ballooning or swelling can result in fire.
• Always store the battery at room temperature in a dry area for best results.
• Always transport or temporarily store the battery in a temperature range of 40–120º F (5–49º C). Do not store the
battery in a car or direct sunlight. If stored in a hot car, the battery can be damaged or even catch fire.
• Always charge the battery away from flammable materials.
• Always inspect the battery before charging and never charge damaged batteries.
• Always disconnect the battery after charging, and let it cool between charges.
• Always constantly monitor the temperature of the battery while charging.
• ONLY USE A CHARGER SPECIFICALLY DESIGNED TO CHARGE LI-ION BATTERIES. Failure to charge the battery with
a compatible charger may cause fire, resulting in personal injury and/or property damage.
• Never discharge Li-Ion cells to below 3V under load.
• Never cover warning labels with hook and loop strips.
• Never leave charging batteries unattended.
• Never charge batteries outside recommended levels.
• Never charge damaged batteries.
• Never attempt to dismantle or alter the charger.
• Never allow children under 14 years of age to charge battery packs.
• Never charge batteries in extremely hot or cold places (recommended between 40–120° F or 5–49° C)
or place in direct sunlight.
Specifications Recommended Tools and Materials
Length: 17" (424mm) • Needle nose pliers
Beam (width): 4.5 in. (114mm)
• Paper towel
Hull Material: Molded Plastic
• Nut driver: 5.5mm
Motor: 390-size water cooled brushed motor
• Phillips screwdriver: #1
ESC/Receiver: ProBoat 2.4GHz receiver with
®
• Clear tape (DYNM0102)
brushed motor ESC
• Dynamite Marine Grease and Gun (DYNE4200)
®
Transmitter: ProBoat ® 2.4GHz Transmitter
Batteries: 7.4V 1500mAh 2S Li-Ion
4 AA batteries are required
4.5"
for the transmitter
(114mm)
EN
Canopy
Hull
Cooling Outlet
Battery Charger
NOTICE : Never charge a battery in the boat or damage may result.
1. Connect the battery to either socket on the charger so it is firmly seated into place.
2. Plug the USB end of the charger into any USB charging port, such as a USB port on a computer.
3. The LED indicator on the charging cable will light solid red to indicate the battery is charging.
4. The LED will turn off indicating the battery has completed charging.
5. When finished charging, disconnect the battery from the charger.
Transmitter and Boat Pairing (Binding)
1. Power on the transmitter. A single beep will sound and
the Transmitter power LED will flash.
2. Place the boat (with battery installed and connected)
into the water.
3. The boat will automatically power on when it contacts
the water and beep three times.
4. The transmitter power LED will glow solid indicating
successful binding.
5. The boat and transmitter are now ready to operate.
Tip : Your React 17 Deep-V includes two features to
™
make your boating experience even more worry free.
1. A low-voltage alarm that signals when your boat
battery is nearly discharged. When your transmitter
starts to beep you have about one minute of runtime
remaining to return your boat to shore for safe
retrieval before the ESC Low Voltage Cutoff (LVC) stops boat operation to protect the battery from over discharge.
2. When your boat is nearing the end of its radio range, the transmitter will issue a continuous alarm sound. Once the
17" (424mm) boat is returned to a safe distance, the power indicator light will turn solid and the alarm will turn off.
EN
Getting Started
1. Install 4 AA batteries into the transmitter.
Canopy Latch
2. Remove the canopy from the hull by rotating the canopy latch
Water Sensor
to the left or right and pulling up on the back of the canopy.
3. Install the fully charged battery in the compartment by
Steering Rod
securing it into the battery clip with the battery cable
toward the front of the boat.
4. Power on the transmitter.
Rudder
5. Connect the battery to the ESC/Receiver.
Propeller 6. Install the canopy on the hull.
7. Keep the throttle at neutral and place the boat into the water.
Trim Tab
Three beeps will sound, indicating the boat is powered on.
Turn Fin
Range Check
IMPORTANT : Perform a range check at the beginning of each boating session, after repair or after installation
of new batteries.
Ensure that all batteries are fully charged.
1. With the radio system powered on and connected, walk away from your boat 90 feet (32 m).
2. Have an assistant remain with the boat to check for proper control movement of the rudder in response to
your transmitter input.
3. If everything appears to be operating correctly, prepare to operate the boat in the water.
NOTICE : Do not operate the motor without water cooling circulation or damage may result.

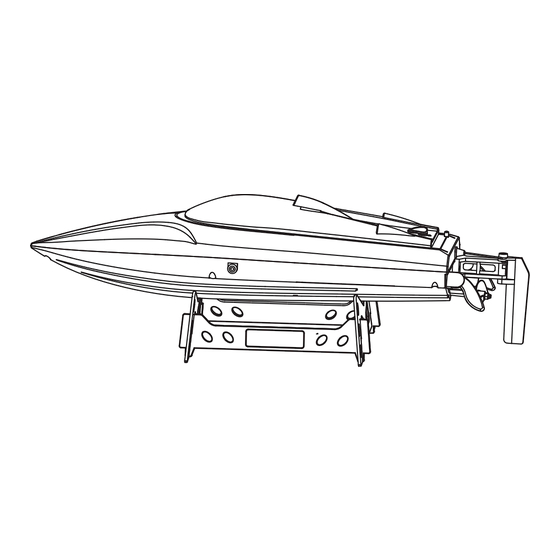

Boat Stand When You Are Finished
1. Power off the boat.
2. Power off the transmitter.
3. Disconnect and remove the battery from the boat.
NOTICE : Disconnect and remove the Li-Ion battery from the boat after use to prevent trickle discharge. Charge your
Li-Ion battery to about half capacity before storage. During storage, make sure the battery charge does not fall below
3V per cell. Low Voltage Cutoff does not prevent the battery from over discharge during storage.
Tip : Always remove the canopy before storage or moisture may allow mold and mildew to grow in the boat.
• Fully dry the inside and outside of the boat, including the water cooling lines.
• Remove the hatch before storing your boat.
• Repair any damage or wear to the boat.
• Lubricate the drive shaft using Dynamite
NOTICE : When you are finished boating, never leave the boat in direct sunlight or in a hot, enclosed area such as a
Steering
car. Doing so can damage the boat.
Forward Trim
NOTICE : Running the boat in saltwater could cause some parts to corrode. If you run the boat in saltwater, rinse it
Backward Trim
thoroughly in freshwater after each use and lubricate the drive system.
Power Indicator NOTICE : Because of its corrosive effects, running RC boats in saltwater is at the discretion of the modeler.
Left Rudder Trim
Right Rudder Trim
Power Switch
Throttle Trigger
EN
Battery Cover
Battery Compartment
® Marine Grease (DYNE4200).
