D-Link DCS-6314 Installationsanleitung Seite 7

ƒ Height: 201 mm (7.9 inches)
ƒ Diameter: 150 mm (5.9 inches)
ƒ Weight: 665 g (1.45 lbs)
Mounting
Plate
Figure 3.1
Figure 3.3
D-Link DCS-6314 Quick Install Guide

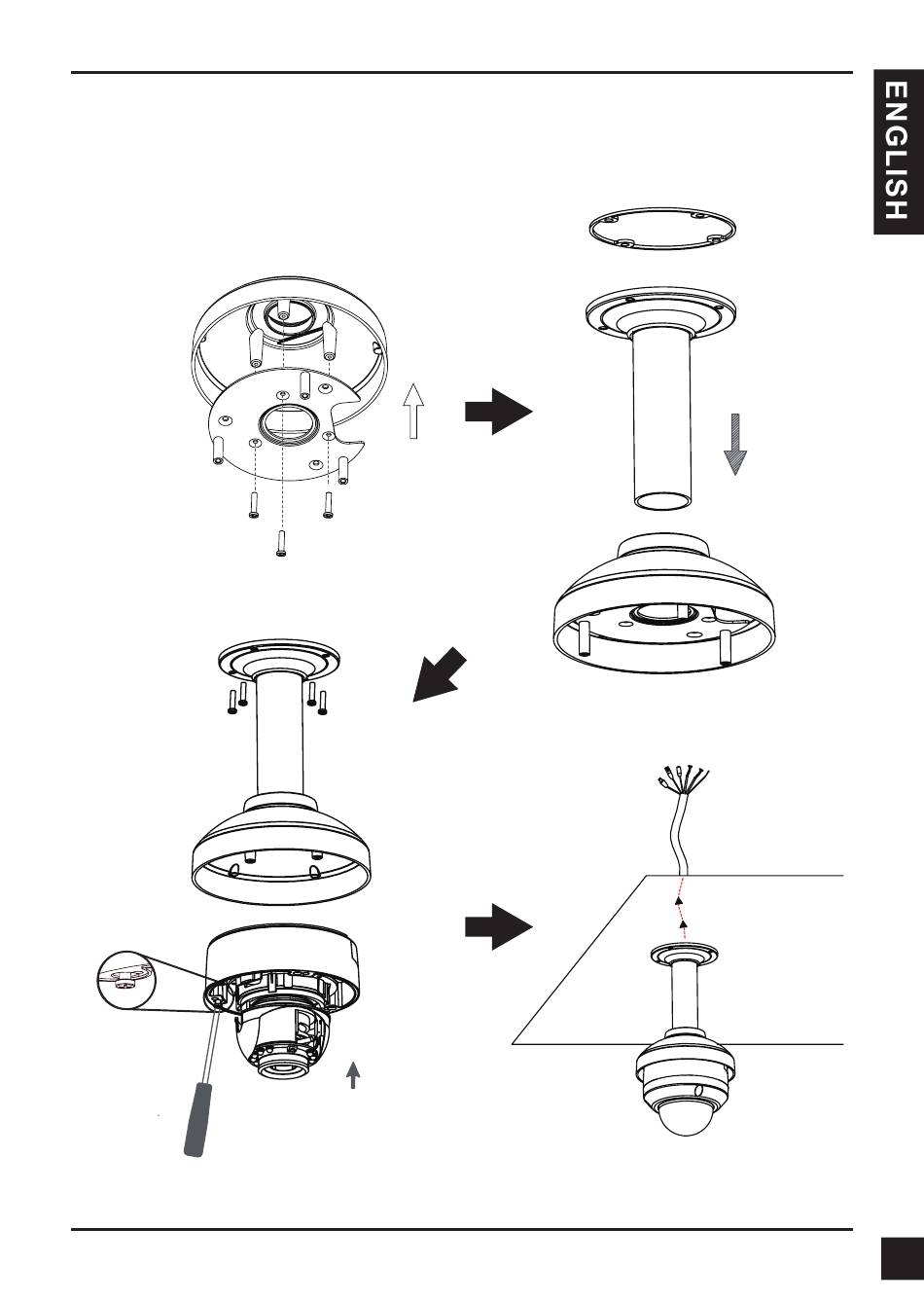

Pendant Mount (DCS-34-2)
Bracket
Cap
Rubber
Seal
Pendant
Bracket
Bracket
Cap
Figure 3.2
Figure 3.4
5
