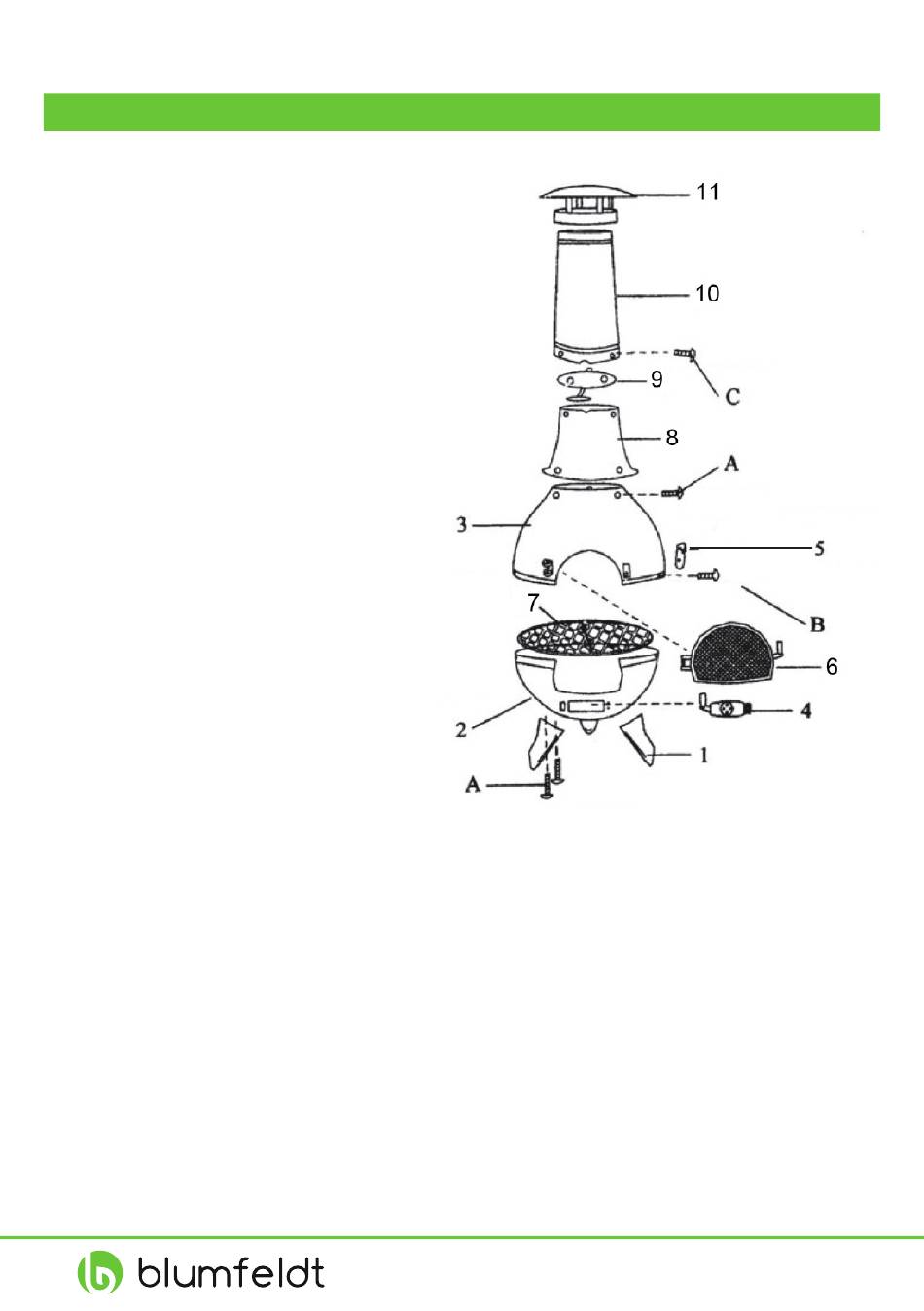

1. Place lower stove (2) on its side
and attach three legs (I) using
six M6 x 25 bolts, washers and
nuts. Tighten securely. Then,
attach air vent (4) to air door.
2. Insert log grate (7) in lower
stove (2) bottom. Attach two
front connection plates and two
rear connection plates to lower
stove using four M6 x 20 bolts,
washers and nuts. Do not over
tighten.
3. Install upper stove (3) to
lower stove (2) assembly from
previous step. Align connector
plates and fasten using four M6
x 20 bolt, washer and nut.
Tighten securely.
4. Attach stove door (6) to
completed stove.
Attach lower flue (8) to upper
stove (3) using three M6 x 25
bolt, washer and nut. Tighten
securely. Place damper (9) on
the top of lower flue (8)
Attach upper flue ( 10) to lower
flue (8) using three M6 x 15
bolts. Tighten securely.
5. Place cap (11) to upper flue
(10).
