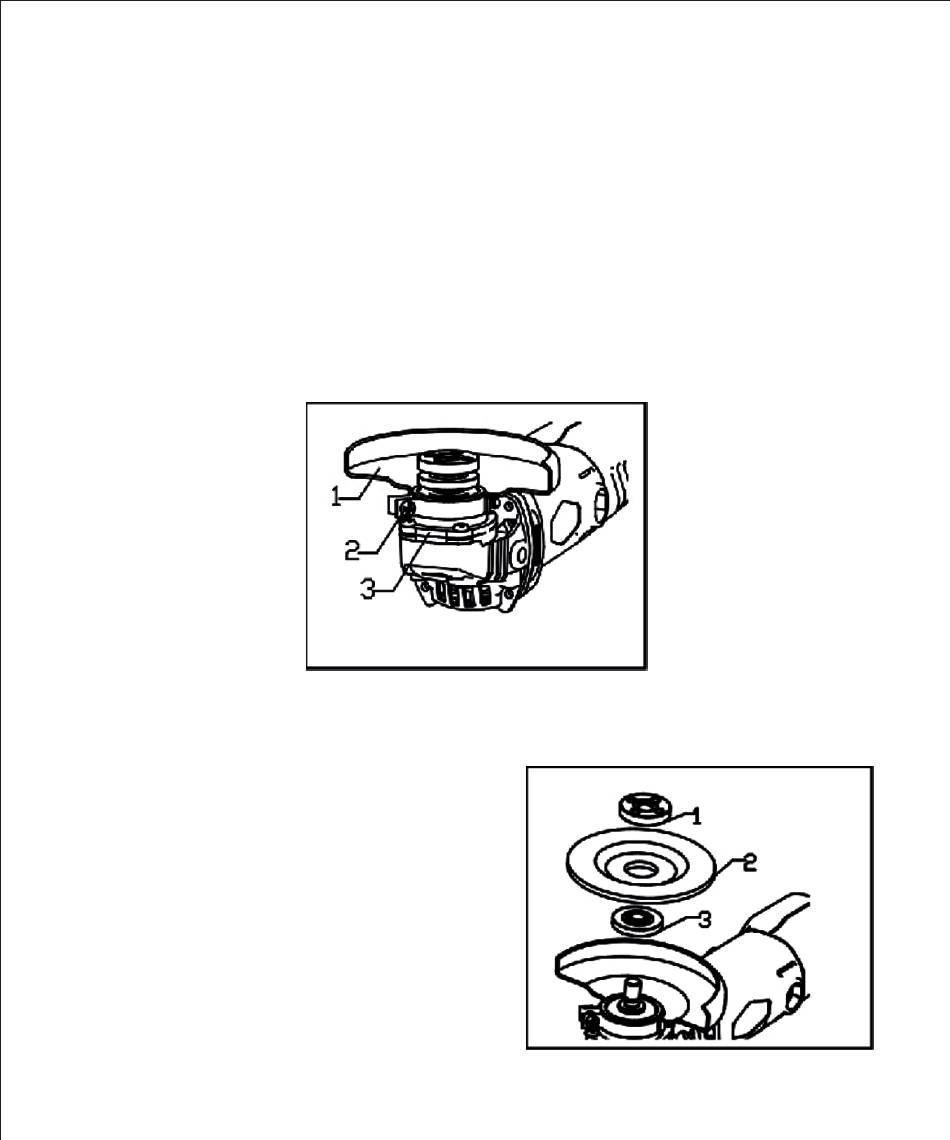

Wheel Guard Installation
WARNING Use wheel guard with disc grinding wheels. Always close the latch to secure
the guard. Keep the guard between you the wheel. Do not direct guard pening
toward your body.
The position of the guard can be adjusted to accommodate the operation being
performed.
To attach wheel guard DISCONNECT tool from power source.
Loosen guard release/lock screw and position guard on spindle neck so that the
two bumps on guard, line up withe the notches on the spindle neck so that the two
bumps on guard, line up withe the notches on the spindle neck.
Rotate guard either direction to desired position, and fasten screw to secure guard in place.
DISC GRINDING WHEEL ASSEMBLY
Disconnect tool from power source. Be sure that
wheel guard is in place for grinding. Place
INNERFLANGE and GRINDING WHEEL on the
spindle. Thread on the lock nut and tighen nut
using the supplied lock nut wrench, while holding
the spindle lock in.
TO REMOVE: Reverse procedure.
TO REMOVE GUARD: Loosen guard release/lock
screw, rotate guard until the two bumps on
guard line up with the notches on the spindle
neck, and list guard off the spindle neck.
