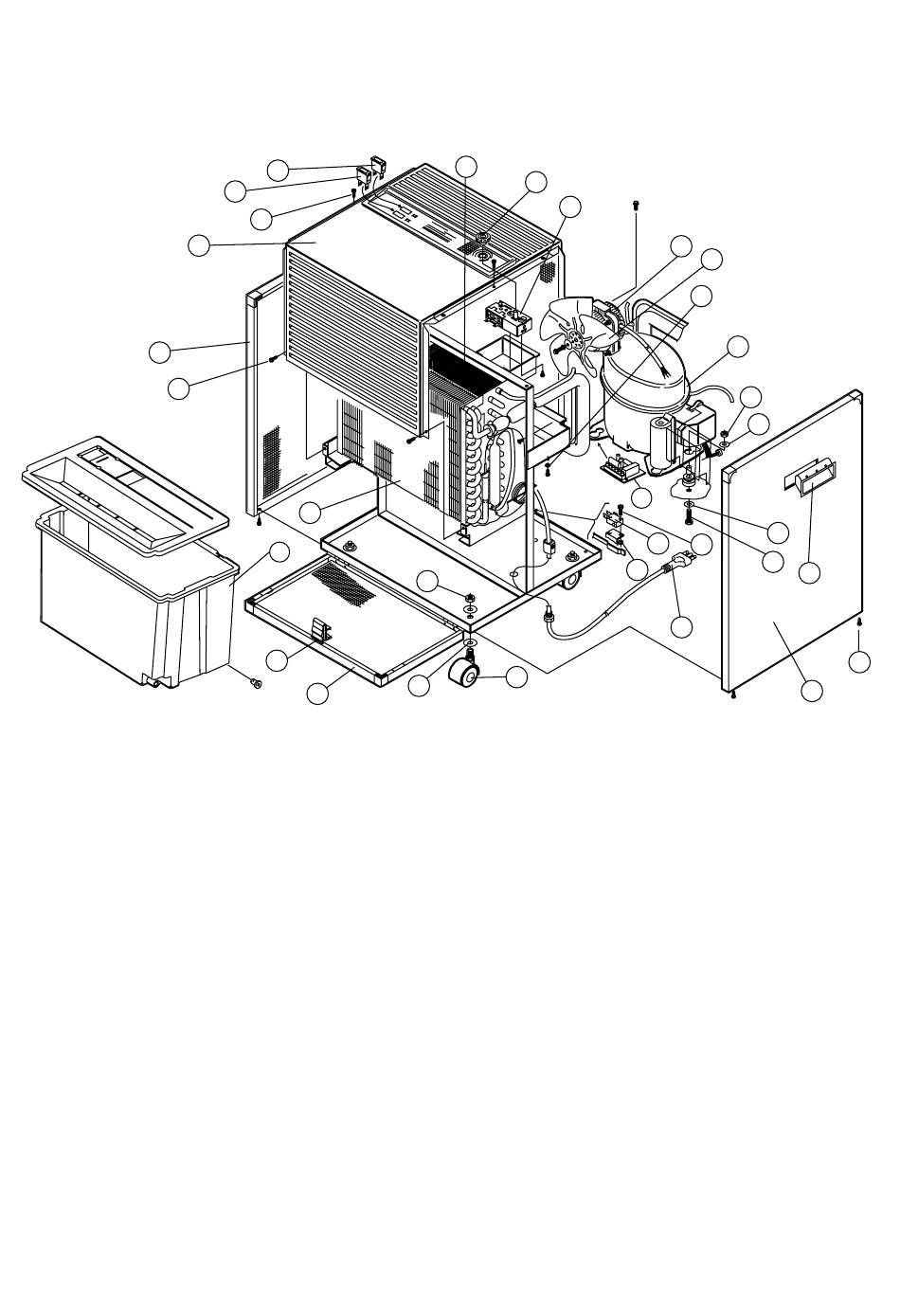

DRYCLIM dehumidifier
15
21
1 Hermetic compressor GL60 PB R134a (DRYCLIM 13)
Hermetic compressor GL90 TB R134a (DRYCLIM 21)
Hermetic compressor GL12 TB R134a (DRYCLIM 27)
2 Condenser
3 Evaporator
4 Black cable 3x1 with plug 2x10A+T 2.5m
5 Microswitch 10(4)A 250V
6 Defrosting timer 60/7' 220V
7 Rectangular red light 220V
8 Rectangular yellow light 220V
9 Umidostato
10 Plastic wheel diameter 40mm threading
pivot M8x15
11 Humidistat knob
12 Aluminium fan diameter 172/31' (DRYCLIM 13)
Aluminium fan diameter 200mm 19' (DRYCLIM 21)
Aluminium fan diameter 200mm 31' (DRYCLIM 27)
13 Push bolt
7
8
21
17
3
18
13
16
2
11
9
22
10
23
14 Right panel
15 Left panel
16 Door
17 Casing
18 Tank
19 Fan motor
20 Embedded handle
21 Self-tapping screw 3.9x9.5 T.C.C.S.P.
22 Zink-plated nut M8x6
23 Zink-plated washer diameter 8x24
24 Zink-plated nut M6x5
25 Zink-plated screw M6x25 T.E.
26 Zink-plated 6x18 washer UNI 6593
27 Zink-plated nut M3x2.5
28 Zink-plated screw M3x16 T.C.T.
29 Electronic board
30 Zink-plated washer 4x8
14
19
12
30
1
24
26
29
26
5
28
25
27
4
20
21
14
