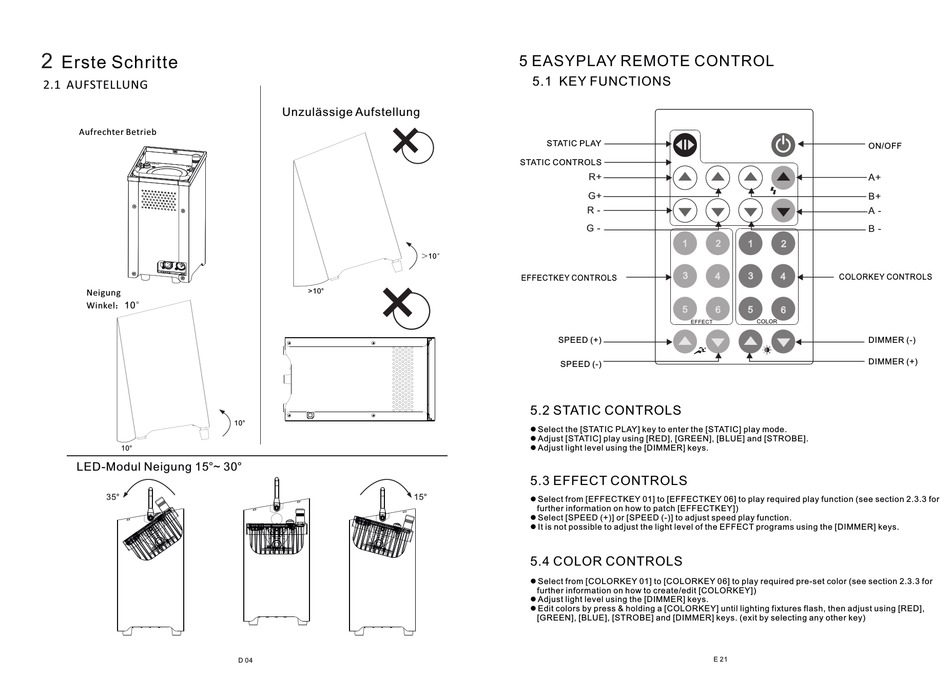

Expolite Compact CM+W Bedienungsanleitung Seite 4

2
Erste Schritte
2.1 AUFSTELLUNG
Aufrechter Betrieb
Neigung
Winkel：10°
10°
LED-Modul Neigung 15°~ 30°
35°
Unzulässige Aufstellung
×
×
>10°
10°
D 04
5 EASYPLAY REMOTE CONTROL
5.1 KEY FUNCTIONS
STATIC PLAY
STATIC CONTROLS
R+
G+
R－
G－
＞ °
10
EFFECTKEY CONTROLS
SPEED (+)
SPEED (-)
5.2 STATIC CONTROLS
l Select the [STATIC PLAY] key to enter the [STATIC] play mode.
l Adjust [STATIC] play using [RED], [GREEN], [BLUE] and [STROBE].
l Adjust light level using the [DIMMER] keys.
5.3 EFFECT CONTROLS
15°
l Select from [EFFECTKEY 01] to [EFFECTKEY 06] to play required play function (see section 2.3.3 for
further information on how to patch [EFFECTKEY])
l Select [SPEED (+)] or [SPEED (-)] to adjust speed play function.
l It is not possible to adjust the light level of the EFFECT programs using the [DIMMER] keys.
5.4 COLOR CONTROLS
l Select from [COLORKEY 01] to [COLORKEY 06] to play required pre-set color (see section 2.3.3 for
further information on how to create/edit [COLORKEY])
l Adjust light level using the [DIMMER] keys.
l Edit colors by press & holding a [COLORKEY] until lighting fixtures flash, then adjust using [RED],
[GREEN], [BLUE], [STROBE] and [DIMMER] keys. (exit by selecting any other key)
ON/OFF
A+
B+
A－
B－
COLORKEY CONTROLS
DIMMER (-)
DIMMER (+)
